About Product

Engineered For Controlled Border Access

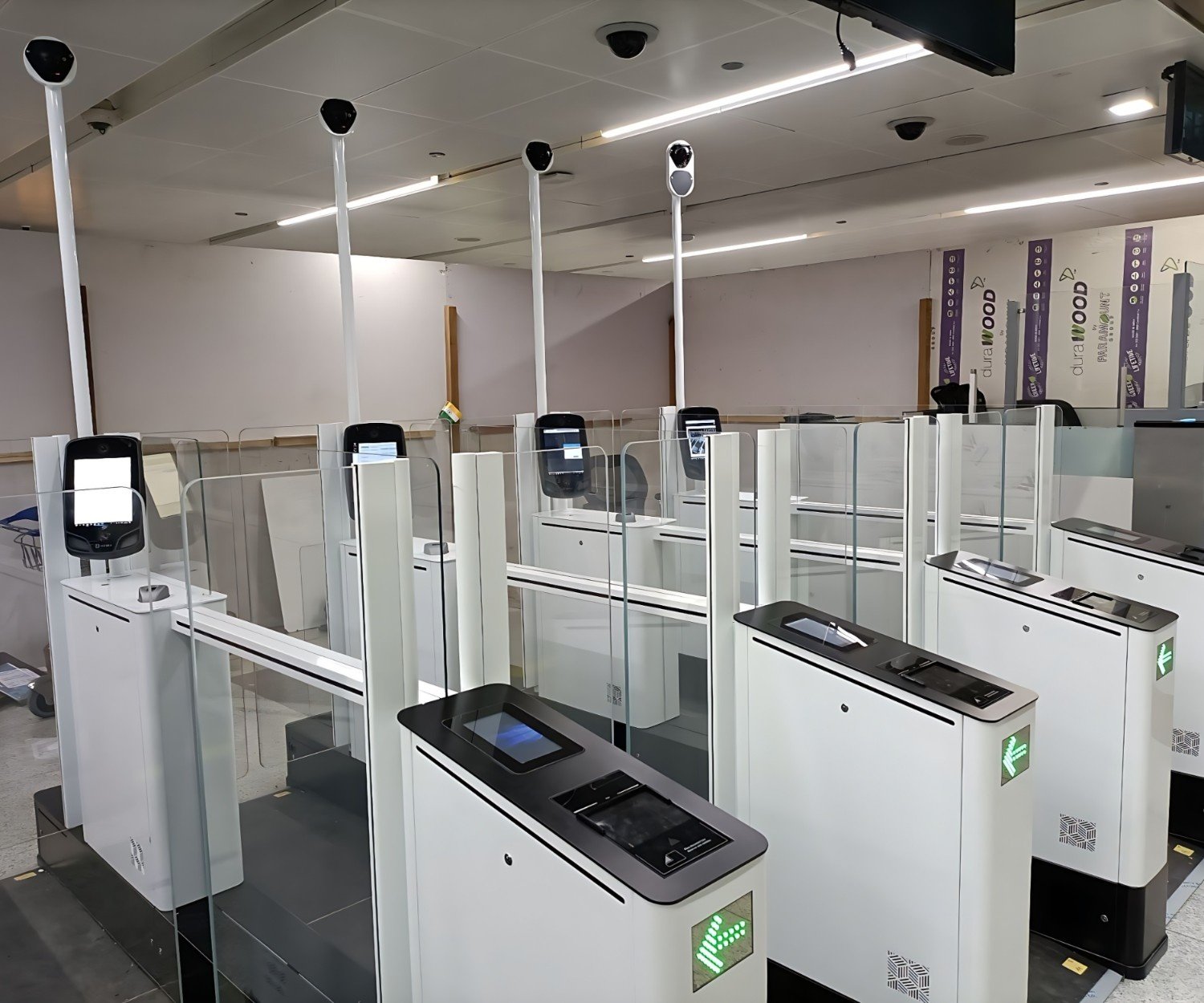

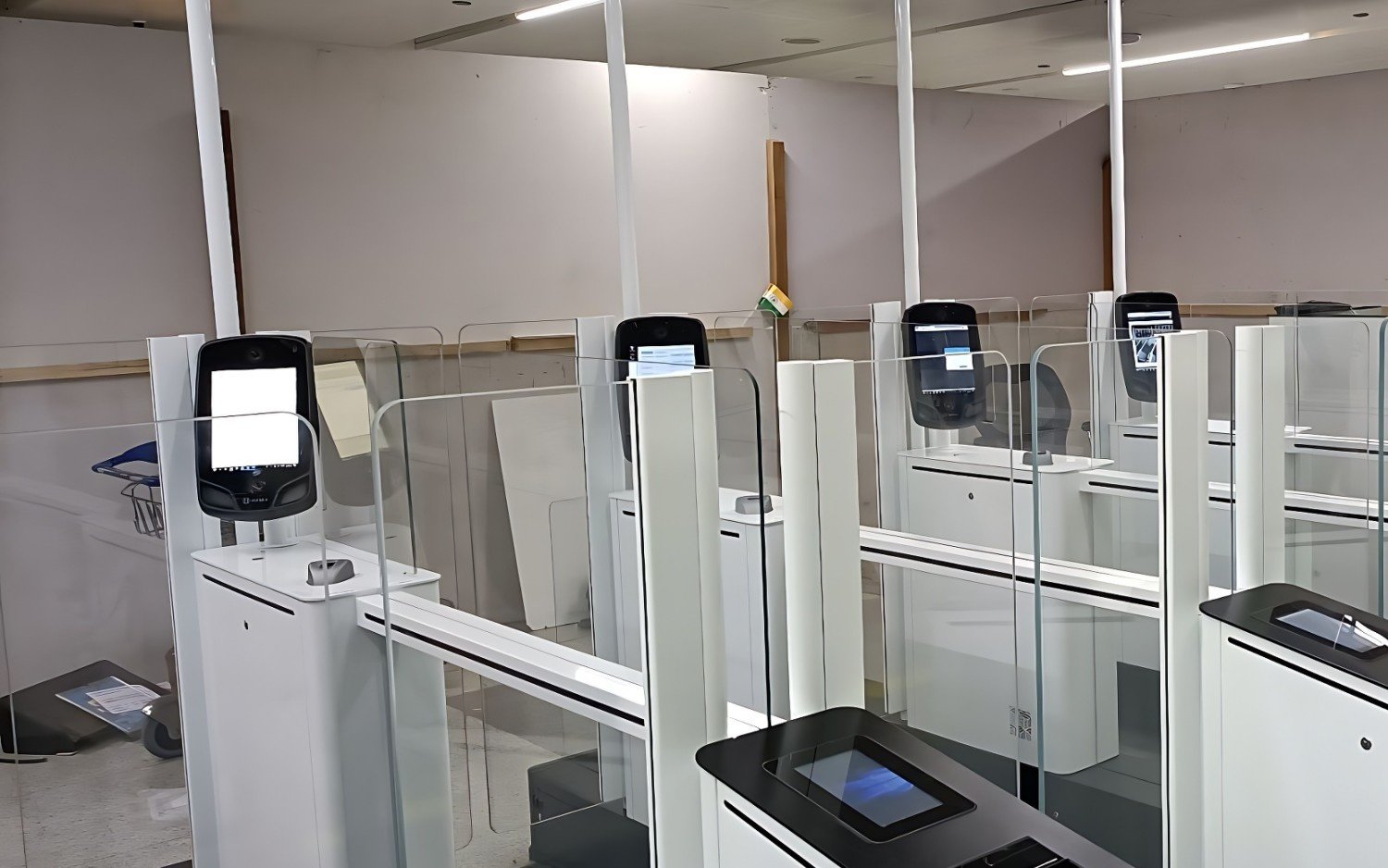

Automatic Border Control Gates solve one of the biggest challenges at airports and border checkpoints: processing large volumes of travellers quickly while maintaining the highest levels of identity verification and security. They enable self-service immigration clearance, reducing dependency on manual intervention without compromising regulatory compliance.

Aurotoshi manufactures Automatic Border Control Gates designed for seamless passenger movement across arrival and departure checkpoints. Equipped with advanced biometric authentication, document verification, and configurable security modules, each system can be tailored to the operational and compliance requirements of airports, immigration authorities, and border control agencies while meeting international security standards.

Features

Emergency Override Icon

Emergency Override

Enables safe exit during emergencies or power failure.

Automated Passenger Processing Icon

Automated Passenger Processing

Enables fast and secure identity verification.

Biometric Authentication Icon

Biometric Authentication

Supports facial recognition and biometric verification.

Passport Reader Integration Icon

Passport Reader Integration

Compatible with e-passport and travel document readers.

Real-Time Verification Icon

Real-Time Verification

Connects with immigration and security databases.

Intelligent Access Control Icon

Intelligent Access Control

Grants access only after successful authentication.

Models & Specifications

Choose Your Specification

Choose from our range of high performance variants tailored to your specific facility requirements.

Auro-TA-ABC3610
Application Automatic border control / immigration
Dimensions (L x W x H) 2800 x 220 x 1000 mm (std & wide lane)
Cabinet Material SS 304 hairline (SS 316 / powder-coat opt)
Passage Clearance 550 mm std / 900 mm wide lane
Throughput 20-25 travellers/min
Material Thickness 2.0 mm
Wing 10 mm toughened glass / polycarbonate (opt)
Wing Illumination Standard
Approx. Weight 150 kg
Opening / Closing Time < 1.0 sec
Operating Modes Mantrap
Operating Directions Uni / bi-directional
Drive Whisper quiet servo
Presence Detection IR sensors, 23 pairs (customizable)
Power Consumption Standby < 60W / operating < 240W
Input Power 110-220V AC, 50-60 Hz
Ingress Protection IP44
MTBF / MTTR 15 million / < 30 min
Operating Temp -10 to 55 C
Anti-Tailgating Yes
Anti-Pass Back Yes
Fire Alarm Integration Yes
Emergency Mode Customizable
Counter Mechanism Optional at surcharge
Access Control (opt) Passport scan, RFID, fingerprint, QR, face, iris, Morpho
Certification CE
Auro-TA-ABC700
Application Automatic border control / immigration
Dimensions (L x W x H) 2400 x 185 x 1000 mm (std & wide lane)
Cabinet Material SS 304 hairline (SS 316 / powder-coat opt)
Passage Clearance 550 mm std / 900 mm wide lane
Throughput 20-25 travellers/min
Material Thickness 1.5 mm / 2.0 mm (opt)
Drive Whisper quiet servo
Wing Illumination Standard
Approx. Weight 180 kg
Opening / Closing Time < 1.0 sec
Operating Modes Mantrap
Operating Directions Uni / bi-directional
Presence Detection IR sensors (customizable)
Power Consumption Standby < 60W / operating < 240W
Input Power 110-220V AC, 50-60 Hz
Ingress Protection IP44
MTBF / MTTR 15 million / < 30 min
Operating Temp -10 to 55 C
Anti-Tailgating Yes
Anti-Pass Back Yes
Fire Alarm Integration Yes
Emergency Mode Customizable
Counter Mechanism Optional at surcharge
Access Control (opt) Passport scan, RFID, fingerprint, QR, face, iris, Morpho
Certification CE
Auro-TA-ABC3610
Application Automatic border control / immigration
Dimensions (L x W x H) 2800 x 220 x 1000 mm (std & wide lane)
Cabinet Material SS 304 hairline (SS 316 / powder-coat opt)
Passage Clearance 550 mm std / 900 mm wide lane
Throughput 20-25 travellers/min
Material Thickness 2.0 mm
Wing 10 mm toughened glass / polycarbonate (opt)
Wing Illumination Standard
Approx. Weight 150 kg
Opening / Closing Time < 1.0 sec
Operating Modes Mantrap
Operating Directions Uni / bi-directional
Drive Whisper quiet servo
Presence Detection IR sensors, 23 pairs (customizable)
Power Consumption Standby < 60W / operating < 240W
Input Power 110-220V AC, 50-60 Hz
Ingress Protection IP44
MTBF / MTTR 15 million / < 30 min
Operating Temp -10 to 55 C
Anti-Tailgating Yes
Anti-Pass Back Yes
Fire Alarm Integration Yes
Emergency Mode Customizable
Counter Mechanism Optional at surcharge
Access Control (opt) Passport scan, RFID, fingerprint, QR, face, iris, Morpho
Certification CE
Auro-TA-ABC700
Application Automatic border control / immigration
Dimensions (L x W x H) 2400 x 185 x 1000 mm (std & wide lane)
Cabinet Material SS 304 hairline (SS 316 / powder-coat opt)
Passage Clearance 550 mm std / 900 mm wide lane
Throughput 20-25 travellers/min
Material Thickness 1.5 mm / 2.0 mm (opt)
Drive Whisper quiet servo
Wing Illumination Standard
Approx. Weight 180 kg
Opening / Closing Time < 1.0 sec
Operating Modes Mantrap
Operating Directions Uni / bi-directional
Presence Detection IR sensors (customizable)
Power Consumption Standby < 60W / operating < 240W
Input Power 110-220V AC, 50-60 Hz
Ingress Protection IP44
MTBF / MTTR 15 million / < 30 min
Operating Temp -10 to 55 C
Anti-Tailgating Yes
Anti-Pass Back Yes
Fire Alarm Integration Yes
Emergency Mode Customizable
Counter Mechanism Optional at surcharge
Access Control (opt) Passport scan, RFID, fingerprint, QR, face, iris, Morpho
Certification CE

Full Specification Comparison

Specification ABC3610 (E-Boarding) ABC700
Best for Wider e-boarding lanes, higher sensor count Compact border lanes, lighter footprint
Footprint 2800 mm long 2400 mm long
Weight 150 kg 180 kg
Sensors 23 IR pairs IR pairs (customizable)
Drive Whisper servo Whisper servo
Security Mantrap, max security Mantrap, max security
Certification CE CE

Where These Doors Are Installed

Industries & Applications

High speed doors operate across six distinct application environments — each with specific compliance, speed, and hygiene requirements.

Aviation

Projects & Case Studies

Installed & Running

High speed doors from Aurotoshi are operational at over 200 industrial facilities. A selection of reference projects below.

No projects or case studies added yet. Please add them from the back panel.

Frequently Asked Questions

Buyer's Questions, Answered

Common queries from facility managers, procurement heads, and plant engineers.

An ABC gate is a self-service border gate that checks a traveller's passport, boarding pass or biometric and opens for cleared travellers, without a manned booth. Aurotoshi makes two models, the ABC3610 and the ABC700, both used at airport immigration and border posts.
Both models use a mantrap design and IR sensors, up to 23 pairs on the ABC3610, so only one cleared traveller passes per cycle. Anti-tailgating and anti-pass-back are standard, and the gate alerts staff if a second person tries to follow.
The gate reads passports and boarding passes and supports biometric checks. Optional readers include RFID, fingerprint, QR, face scan, iris and Morpho, so the gate can match a project's border-control requirement.
The ABC3610 is the larger e-boarding gate at 2800 mm with 23 IR sensor pairs. The ABC700 is a more compact model at 2400 mm. Both are swing-type mantrap gates with the same throughput, drive and certification.
Both models handle 20 to 25 travellers per minute, with an opening and closing time under 1.0 second and a quiet servo drive.
Yes. A wide-lane option suits differently-abled travellers, and the gate auto-opens on fire alarm for safe evacuation. Sensors prevent the wings closing on a person in the lane.
Yes. The gate integrates with immigration and border-control systems and fire-alarm systems, and runs in arrival or departure mode as required.
Yes. Aurotoshi is an OEM and ODM manufacturer supplying airport operators, border authorities and system integrators, with project-specific customisation and documentation available on request.

After Installation

Service & AMC for
Automatic Border Control Gates

We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.

Preventive Maintenance
Quarterly AMC
  • Servo drive and mantrap servicing
  • IR sensor calibration
  • Passport and biometric reader check
  • Opening and closing time measurement
  • Wing and safety-sensor test
Breakdown Support
24-Hour Response
  • 24-hour response for AMC customers
  • In-house spare parts, no import lead times
  • Trained engineers across Delhi NCR, Mumbai, Pune
  • Priority response for live airport sites
Compliance & Records
Compliance Records
  • Service records for airport and border audits
  • Reader and sensor calibration logs
  • Annual CE and fire-integration check
  • Integrated reporting via Aurionpro software
