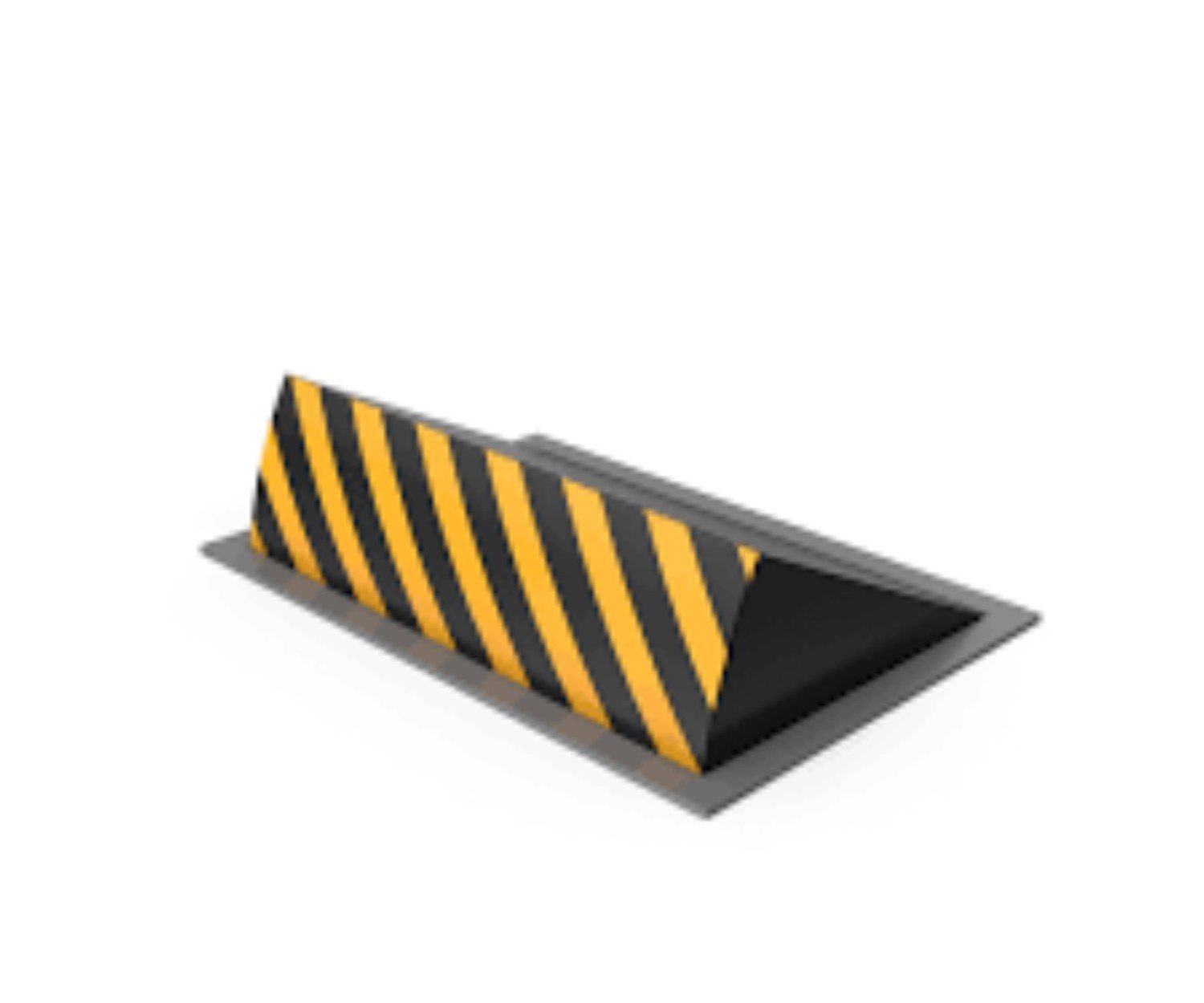

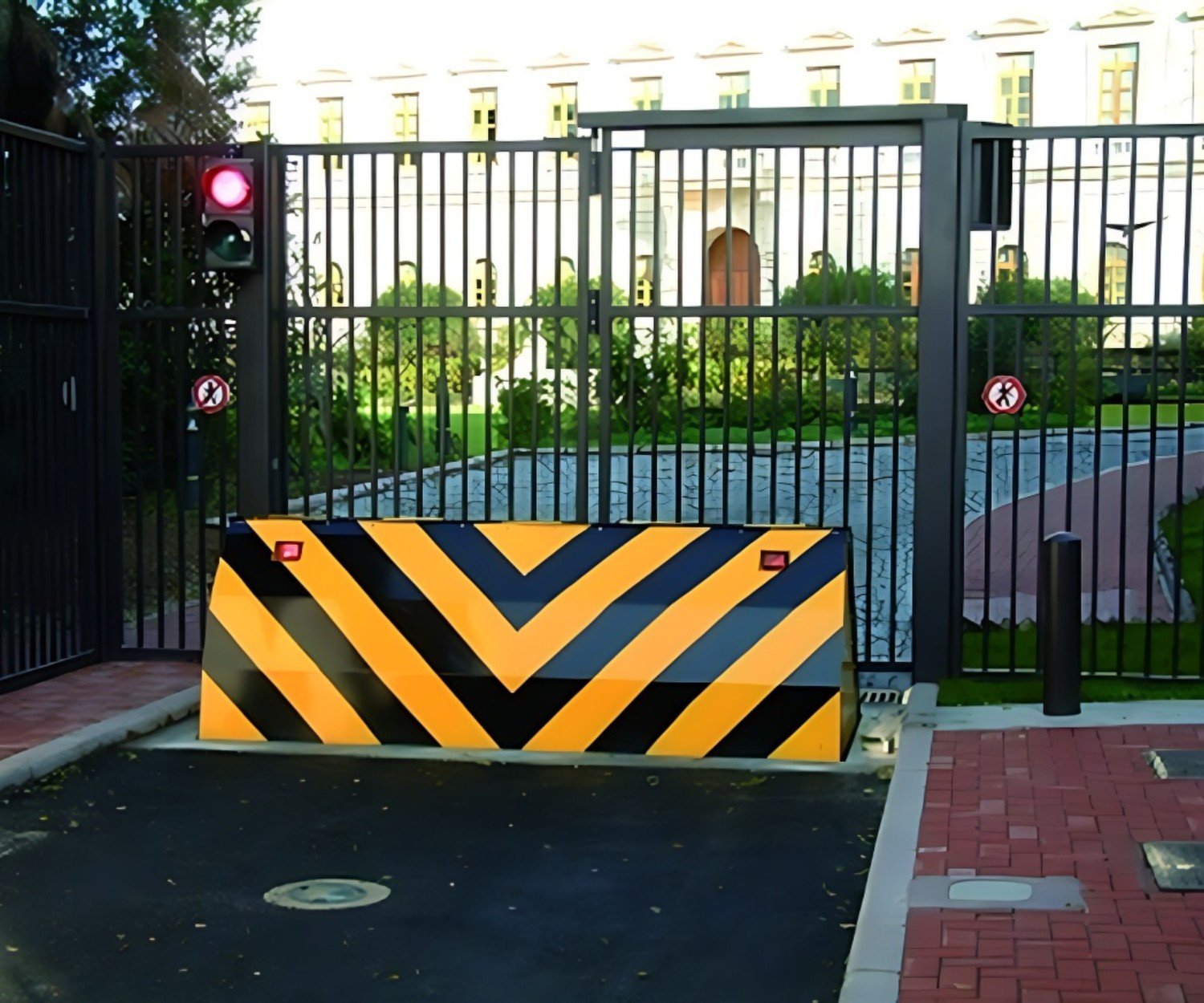

Tyre Killers & Hydraulic Blockers

🔍 Click to zoom

✉Get A Quote

About Product

Built For High-security Vehicle Control

Securing vehicle access requires more than controlling entry and exit. Industrial and critical facilities must prevent unauthorized access, wrong-way vehicle movement, and deliberate intrusion without affecting the smooth movement of authorized vehicles or daily operations.

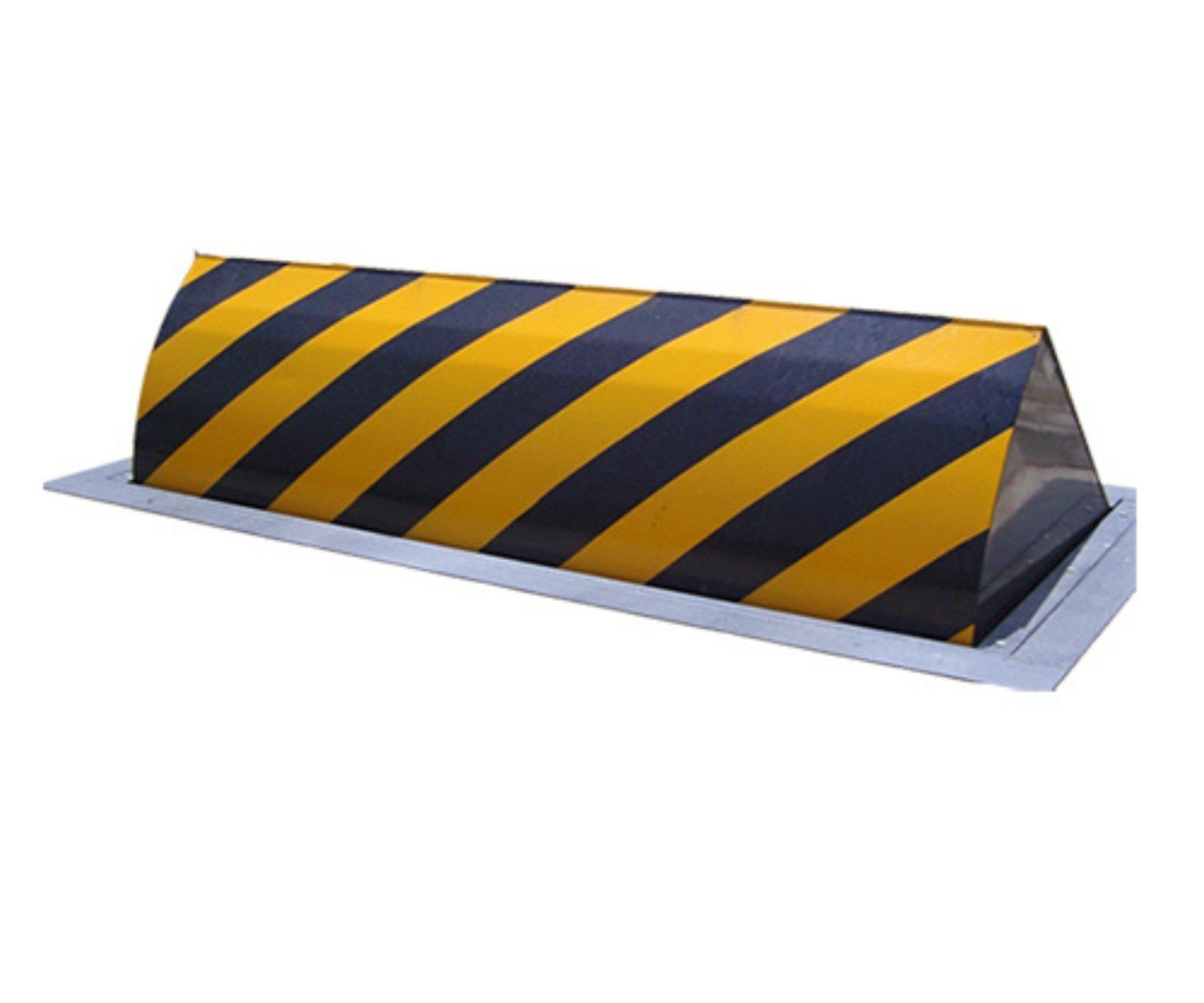

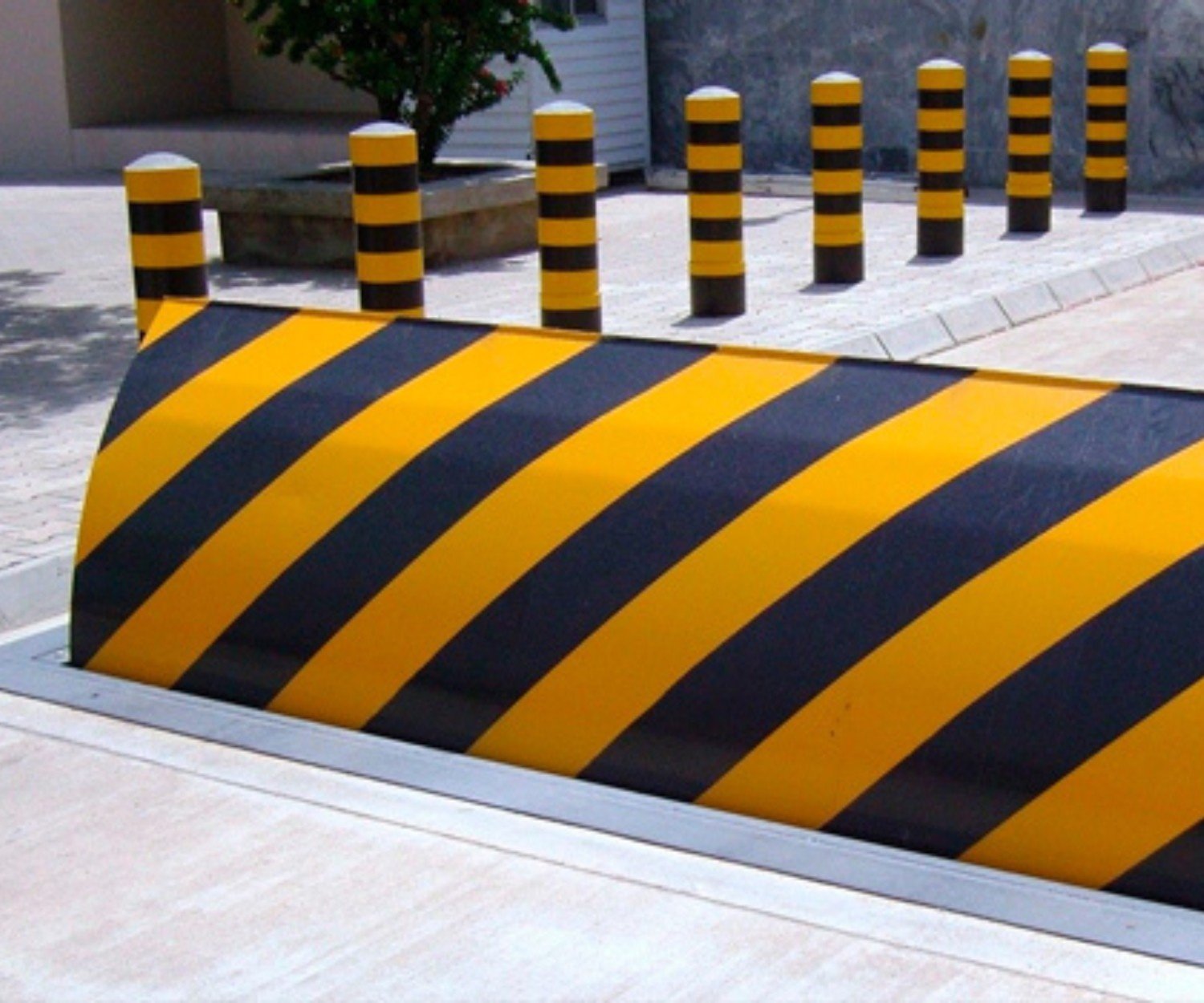

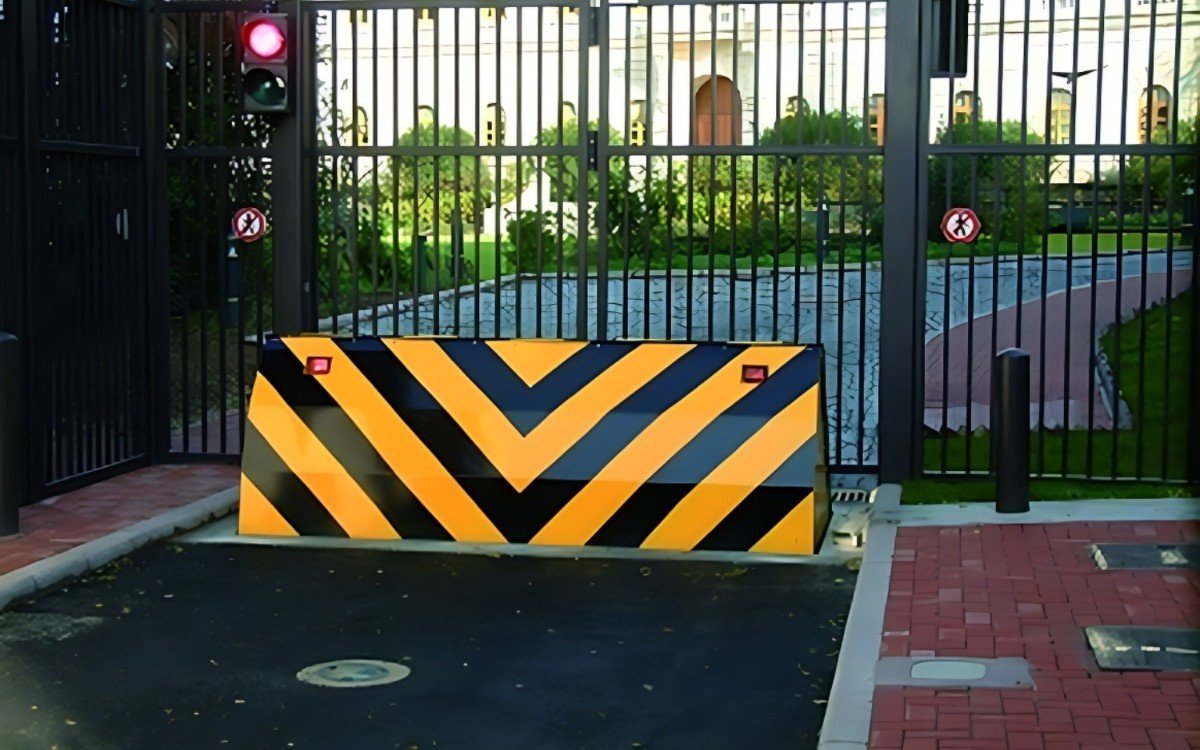

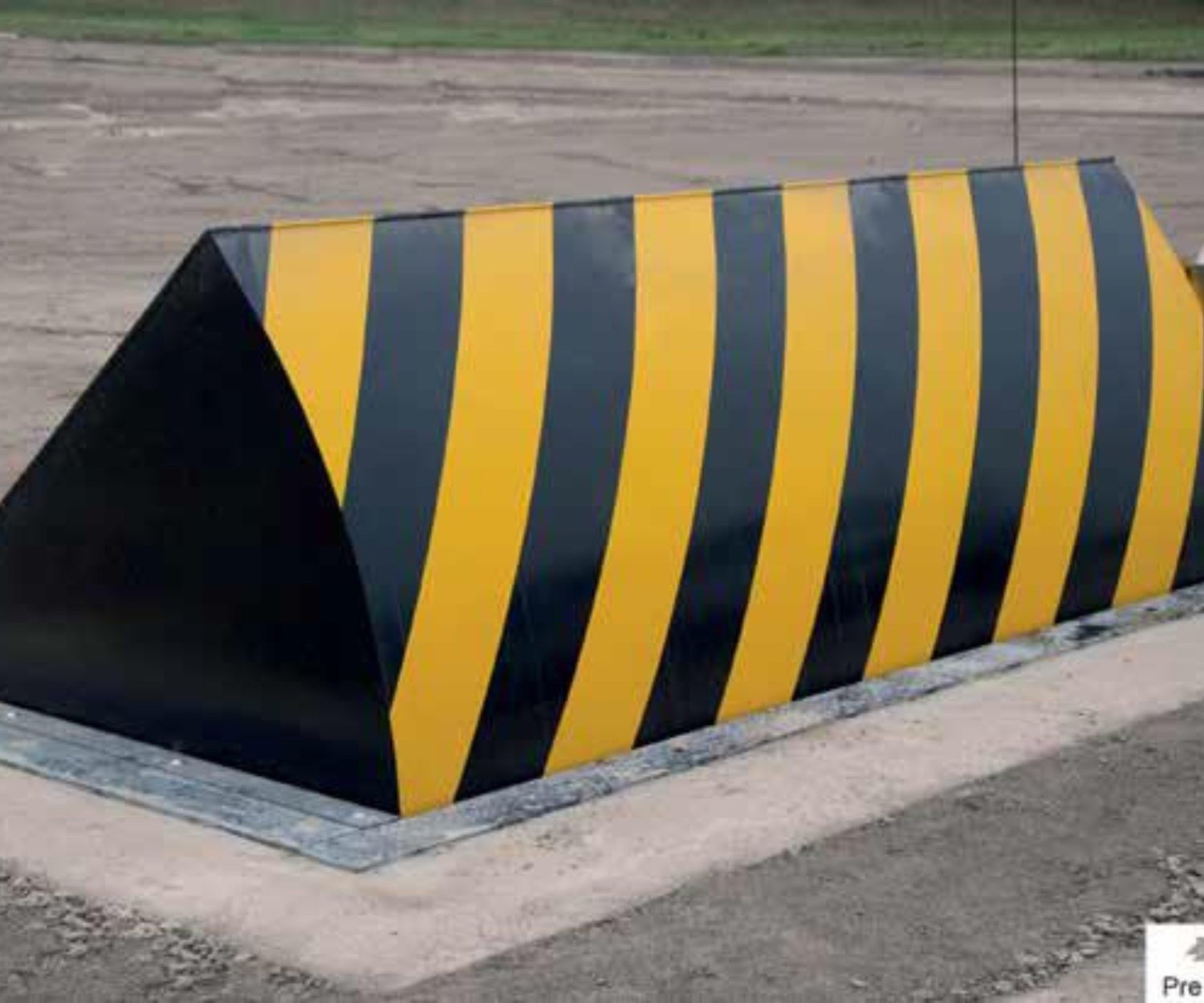

Aurotoshi offers an integrated range of vehicle access security solutions comprising tyre killers, hydraulic bollards, and hydraulic road blockers for varying levels of perimeter protection. Engineered for Indian operating conditions and demanding duty cycles, these systems combine reliable operation, advanced safety features, and durable construction to protect commercial properties, logistics hubs, government facilities, airports, and other high-security sites.

Features

Access Control Integration

Compatible with RFID, biometric, QR, and ticketing systems.

Automatic Operation

Raises and lowers automatically for controlled vehicle access.

Hydraulic Drive System

Ensures smooth and reliable bollard movement.

Emergency Manual Override

Allows operation during power outages or emergencies.

High Impact Strength

Prevents unauthorized vehicle access with heavy-duty construction.

Corrosion-Resistant Finish

Designed for long-term outdoor performance.

Models & Specifications

Choose Your Specification

Choose from our range of high performance variants tailored to your specific facility requirements.

Auro-TA-TK

Type Electro-mechanical, robust high-intensity

Colour & Body Yellow and blue, MS flats of 25 mm thickness

Spike Height 90 to 110 mm above block

Spike Dimensions 215 x 25 mm

Width of Block 881 mm

Length of Block 3000 to 6000 mm (modular)

Spike to Spike Distance 103.75 mm

Opening & Closing Time 6 to 10 sec

Vehicle Load 25 ton

Installation Depth 135 mm

Housing MS body

Strip Thickness 65125mm

Dimension from Ground H-135 W-881 L-165mm vs block L 3000-6000mm

Safety Devices (optional) Remote control, smart card reader, optical beam sensor, loop detector, biometric

Application High-security areas, heavy industry, oil refineries, airports, embassies, military base, power plants

Auro-TA-TK

Type Electro-mechanical, robust high-intensity

Colour & Body Yellow and blue, MS flats of 25 mm thickness

Spike Height 90 to 110 mm above block

Spike Dimensions 215 x 25 mm

Width of Block 881 mm

Length of Block 3000 to 6000 mm (modular)

Spike to Spike Distance 103.75 mm

Opening & Closing Time 6 to 10 sec

Vehicle Load 25 ton

Installation Depth 135 mm

Housing MS body

Strip Thickness 65125mm

Dimension from Ground H-135 W-881 L-165mm vs block L 3000-6000mm

Safety Devices (optional) Remote control, smart card reader, optical beam sensor, loop detector, biometric

Application High-security areas, heavy industry, oil refineries, airports, embassies, military base, power plants

Where These Doors Are Installed

Industries & Applications

High speed doors operate across six distinct application environments — each with specific compliance, speed, and hygiene requirements.

Aviation

Projects & Case Studies

Installed & Running

High speed doors from Aurotoshi are operational at over 200 industrial facilities. A selection of reference projects below.

No projects or case studies added yet. Please add them from the back panel.

Frequently Asked Questions

Buyer's Questions, Answered

Common queries from facility managers, procurement heads, and plant engineers.

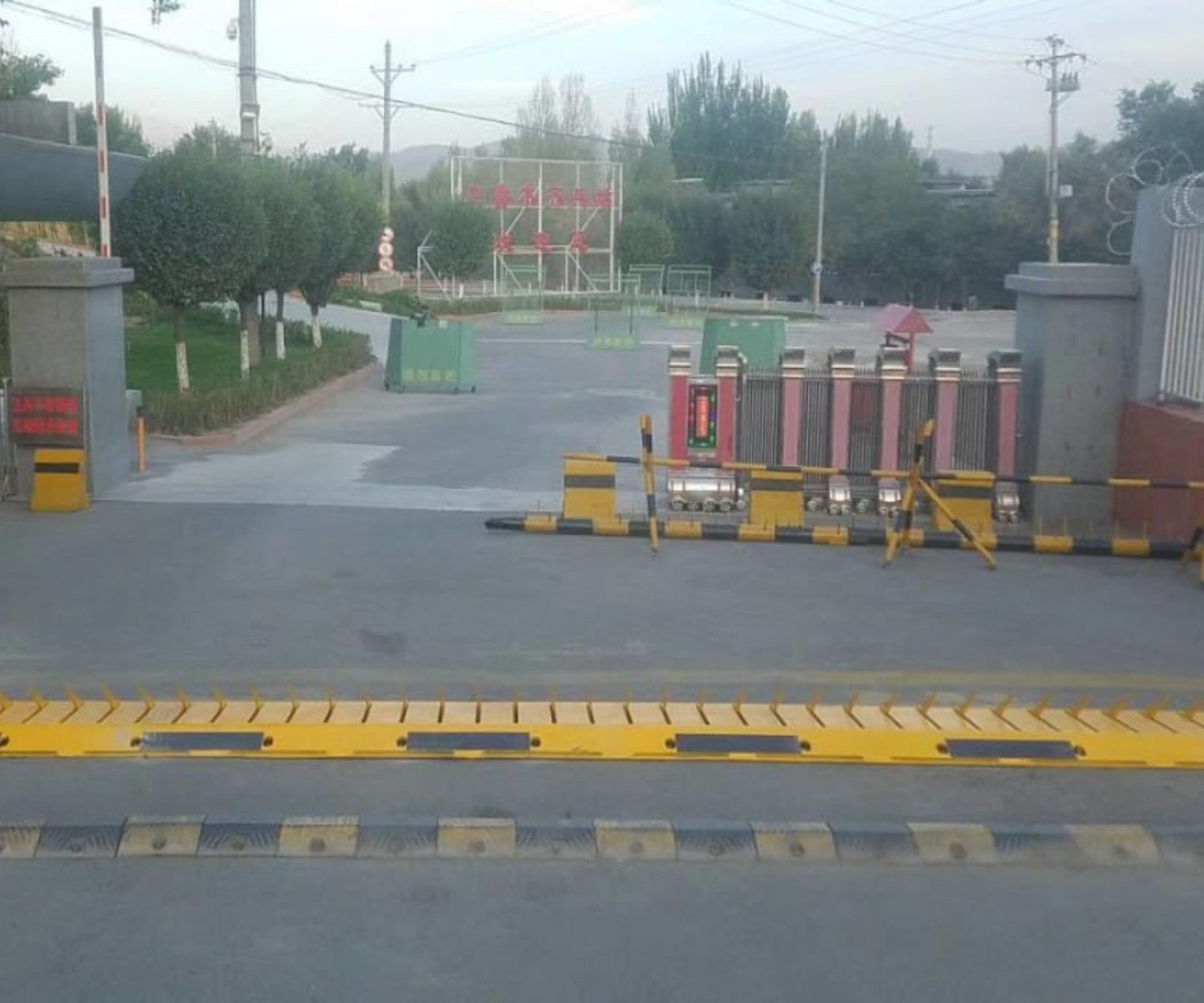

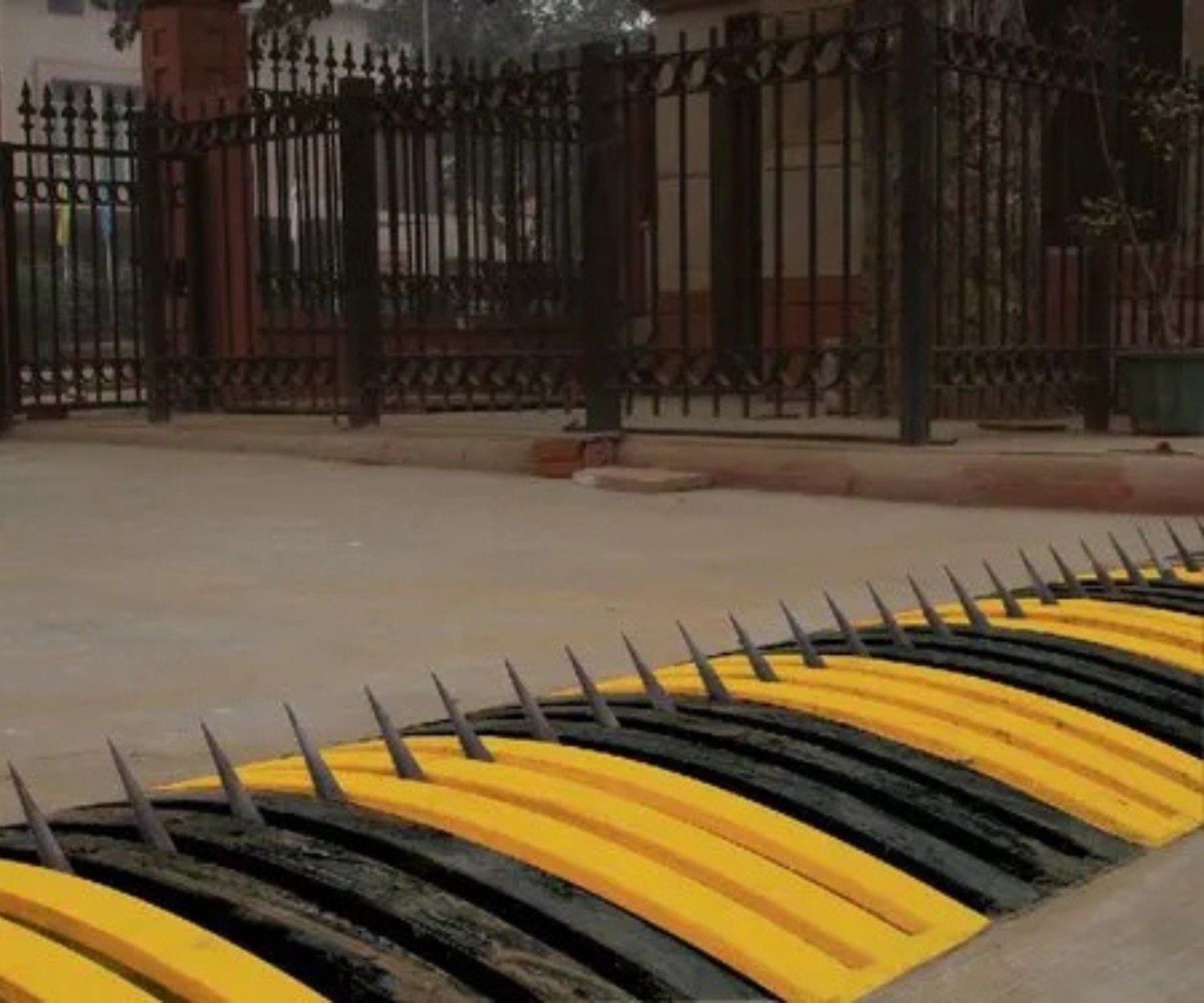

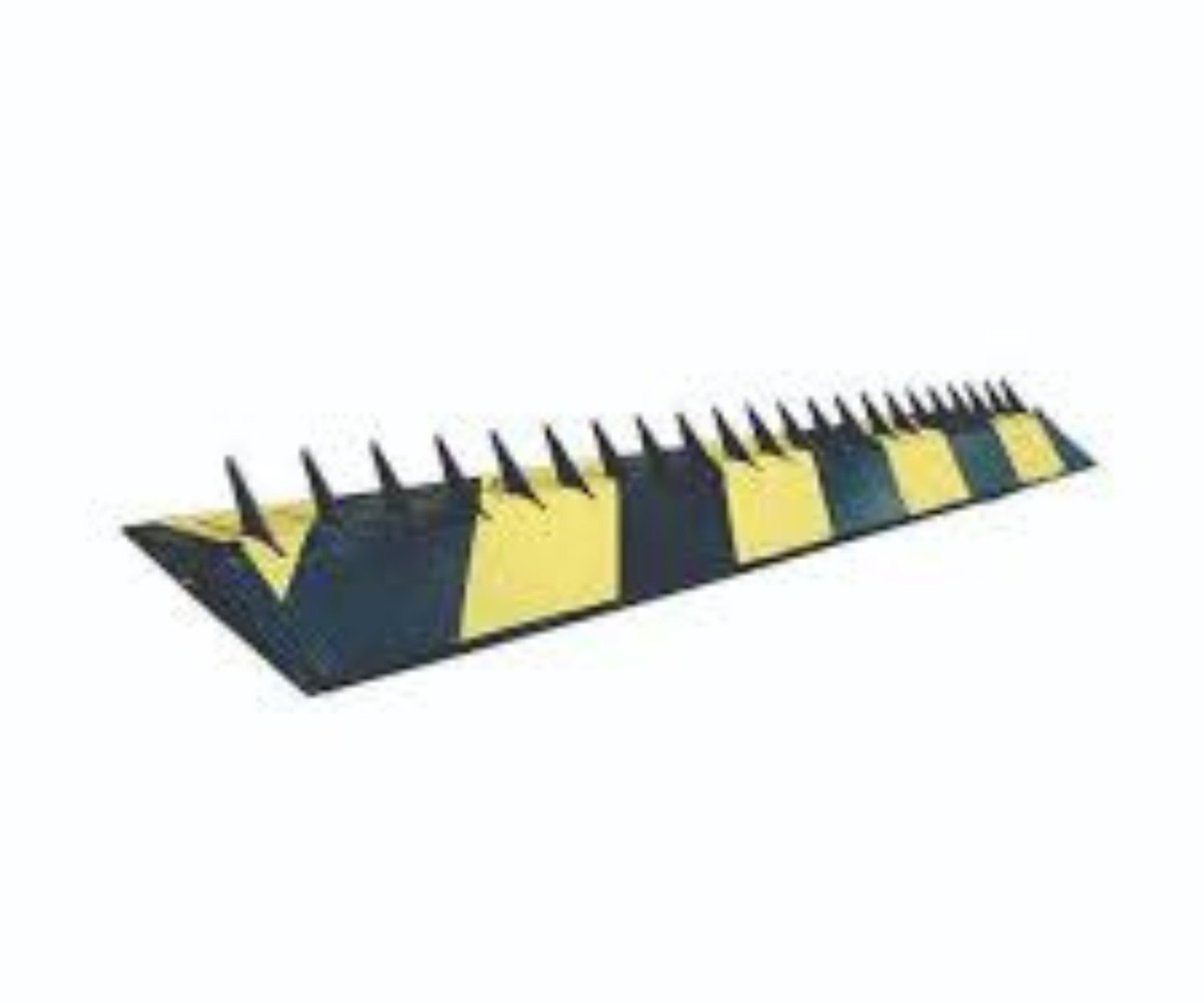

A spike tyre killer is a surface-mounted, electro-mechanical spike barrier installed at controlled entry lanes. It raises spikes to immobilise unauthorised vehicles and retracts flush so cleared vehicles pass unhindered. It is used at military bases, embassies, oil refineries, airports, power plants and other high-security sites.

The Auro-TA-TK carries a 25-ton vehicle load, so cleared heavy vehicles pass over the retracted unit without damage. The body is built from MS flats of 25 mm thickness.

It supports manual, automatic and remote triggering. Opening and closing takes 6 to 10 seconds. Optional devices include a smart card reader, optical beam sensor, loop detector and biometric access.

The block is modular from 3000 to 6000 mm to suit varying road and lane widths. Width is 881 mm and installation depth is 135 mm.

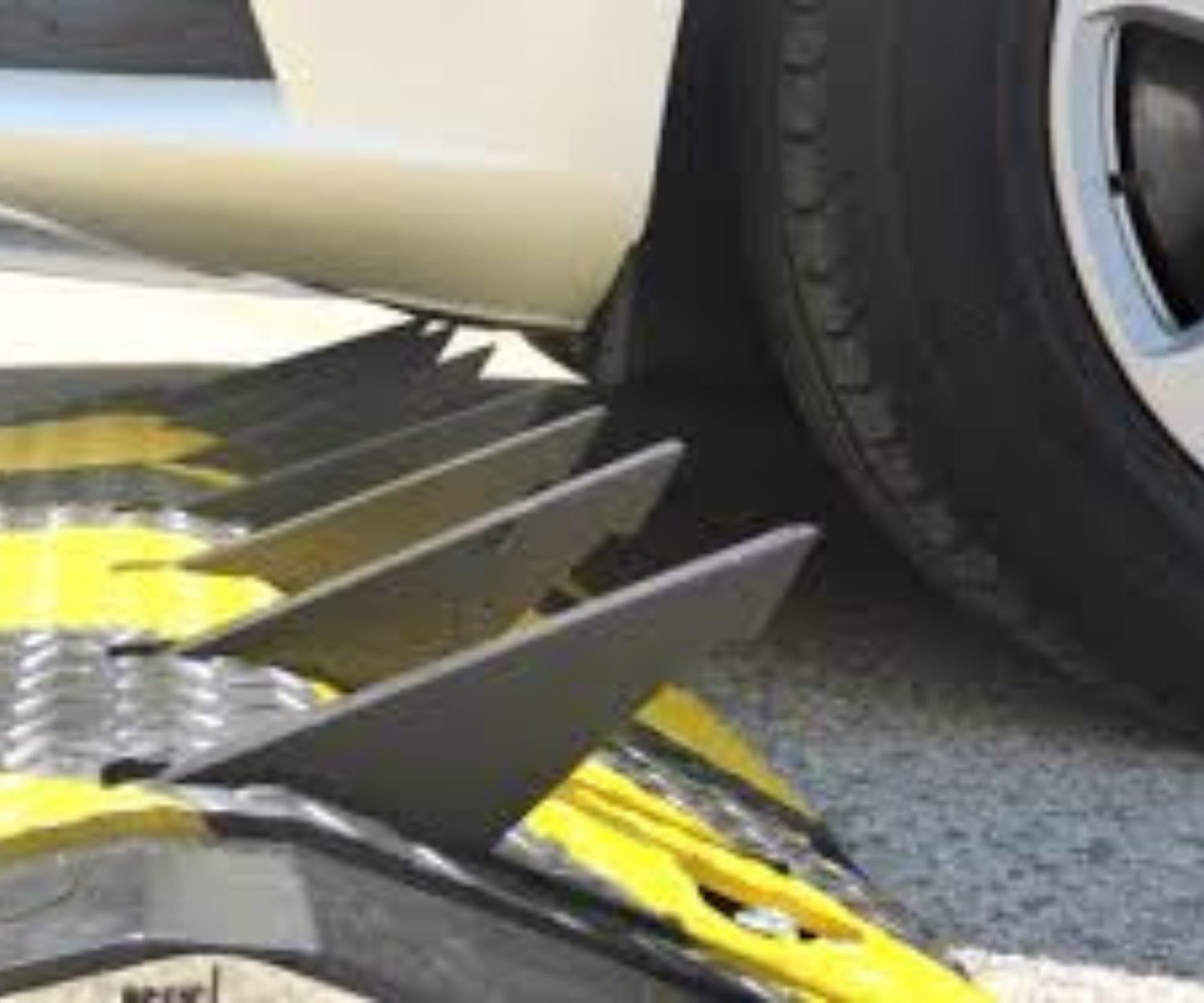

Spikes measure 215 x 25 mm and stand 90 to 110 mm above the block, spaced 103.75 mm apart.

Lead time depends on block length and site civil readiness. Contact us for a schedule after a site survey. The unit is manufactured at our facility in Ghaziabad.

Yes. Aurotoshi is an OEM and ODM manufacturer. We supply as a sub-vendor to EPC contractors, security integrators and consultants, with custom spec sheets and documentation on request.

Major parts including the spike strip, operator and control boards are manufactured or stocked at our Ghaziabad facility, with no import dependency.

After Installation

Service & AMC for
Tyre Killers & Hydraulic Blockers

We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.

Preventive Maintenance

Quarterly AMC

Spike strip and operator inspection
Opening and closing time measurement
Control panel and activation-device test
Lubrication and corrosion check
Safety-signal test

Breakdown Support

24-Hour Response

24-hour response for AMC customers
In-house spare parts, no import lead times
Trained engineers across Delhi NCR, Mumbai, Pune
Priority response for high-security sites

Compliance & Records

Compliance Records

Service records for security audits
Activation and safety-device calibration logs
Annual control-system check
Integrated reporting via Aurionpro software
