About Product

Designed For Secure Pedestrian Flow

Pedestrian access control in public buildings requires balancing two critical needs: maintaining security while ensuring fast, uninterrupted movement of people. Facilities also need to accommodate users with different mobility requirements without compromising safety, throughput, or operational reliability.

Aurotoshi manufactures a complete range of swing barriers and P-gates for standard and special access applications. Designed for corporate offices, metro stations, airports, public buildings, and other high-footfall environments, they provide controlled, bi-directional pedestrian access with smooth operation and advanced safety features. Built for Indian operating conditions, they deliver reliable performance with low maintenance and seamless integration with modern access control systems.

Features

Safety sensors Icon

Safety sensors

Integrated sensors for enhanced operational safety

Access Control Integration Icon

Access Control Integration

Supports RFID, biometric, ANPR, and access control systems.

Bidirectional Access Icon

Bidirectional Access

Supports controlled entry and exit from both directions.

Emergency Auto Open Icon

Emergency Auto Open

Opens automatically during emergencies or power failure.

Wide Lane Access Icon

Wide Lane Access

Provides convenient access for wheelchairs, luggage, and trolleys.

Swing Gate Operation Icon

Swing Gate Operation

Enables smooth and controlled pedestrian movement.

Models & Specifications

Choose Your Specification

Choose from our range of high performance variants tailored to your specific facility requirements.

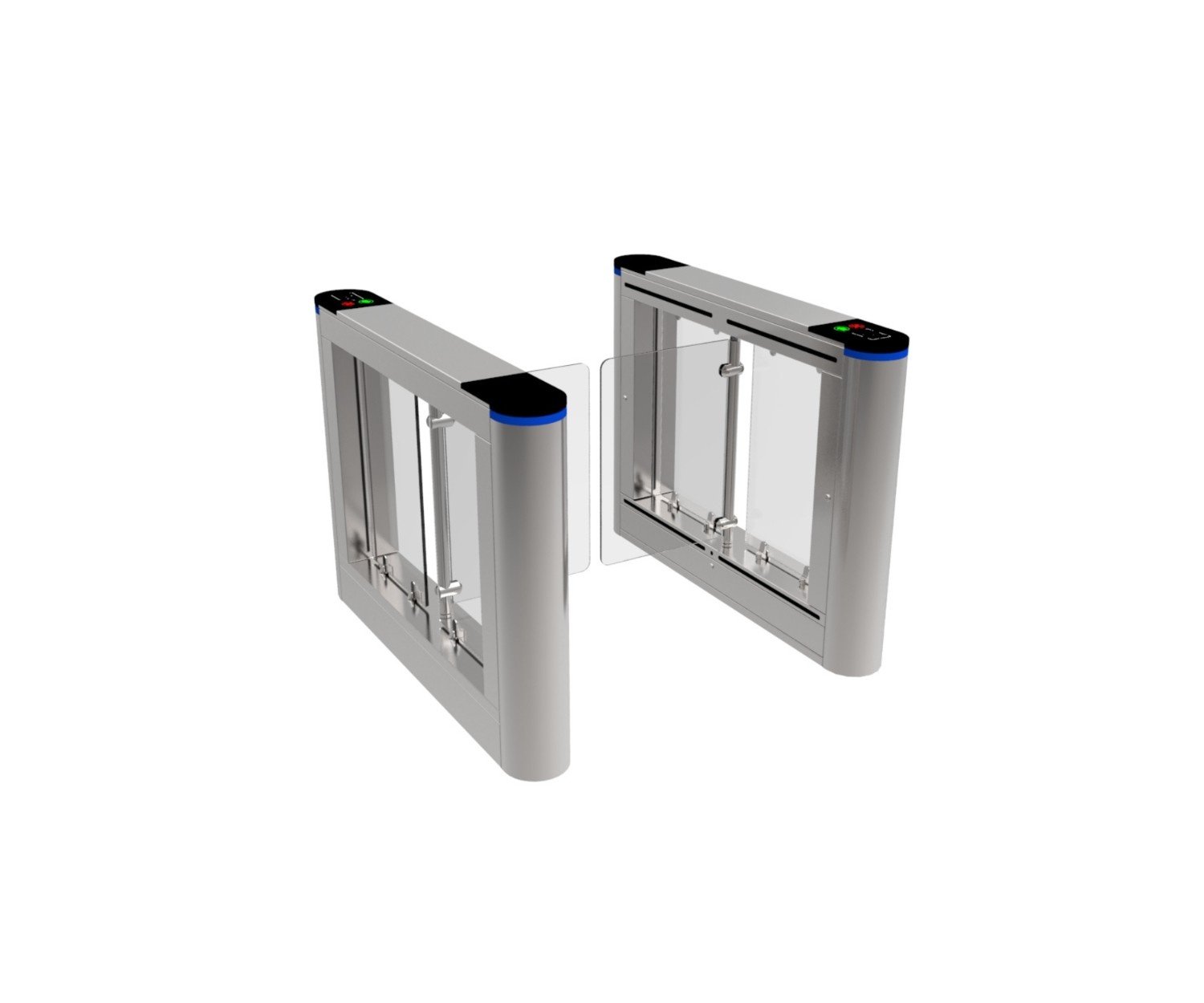

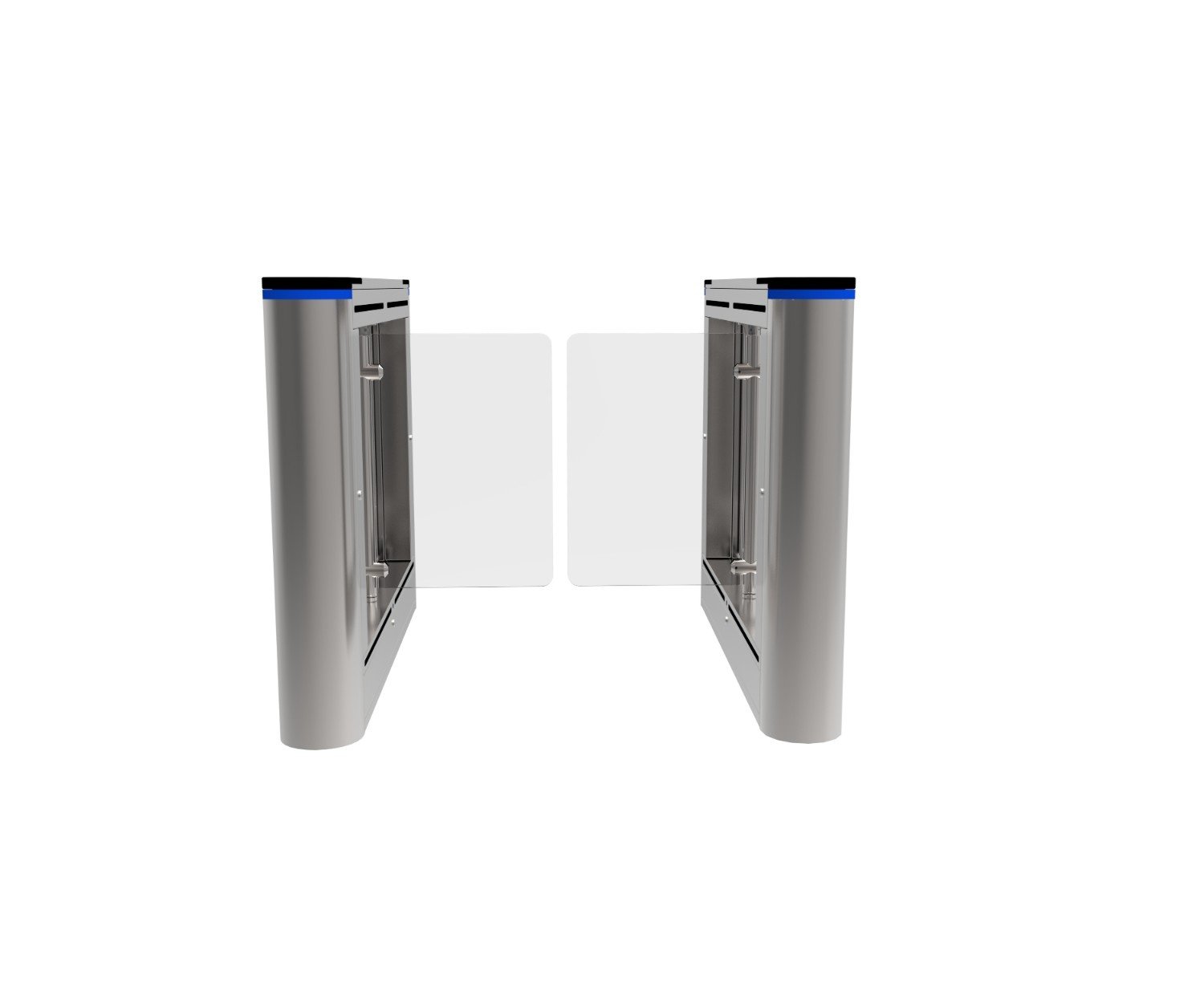

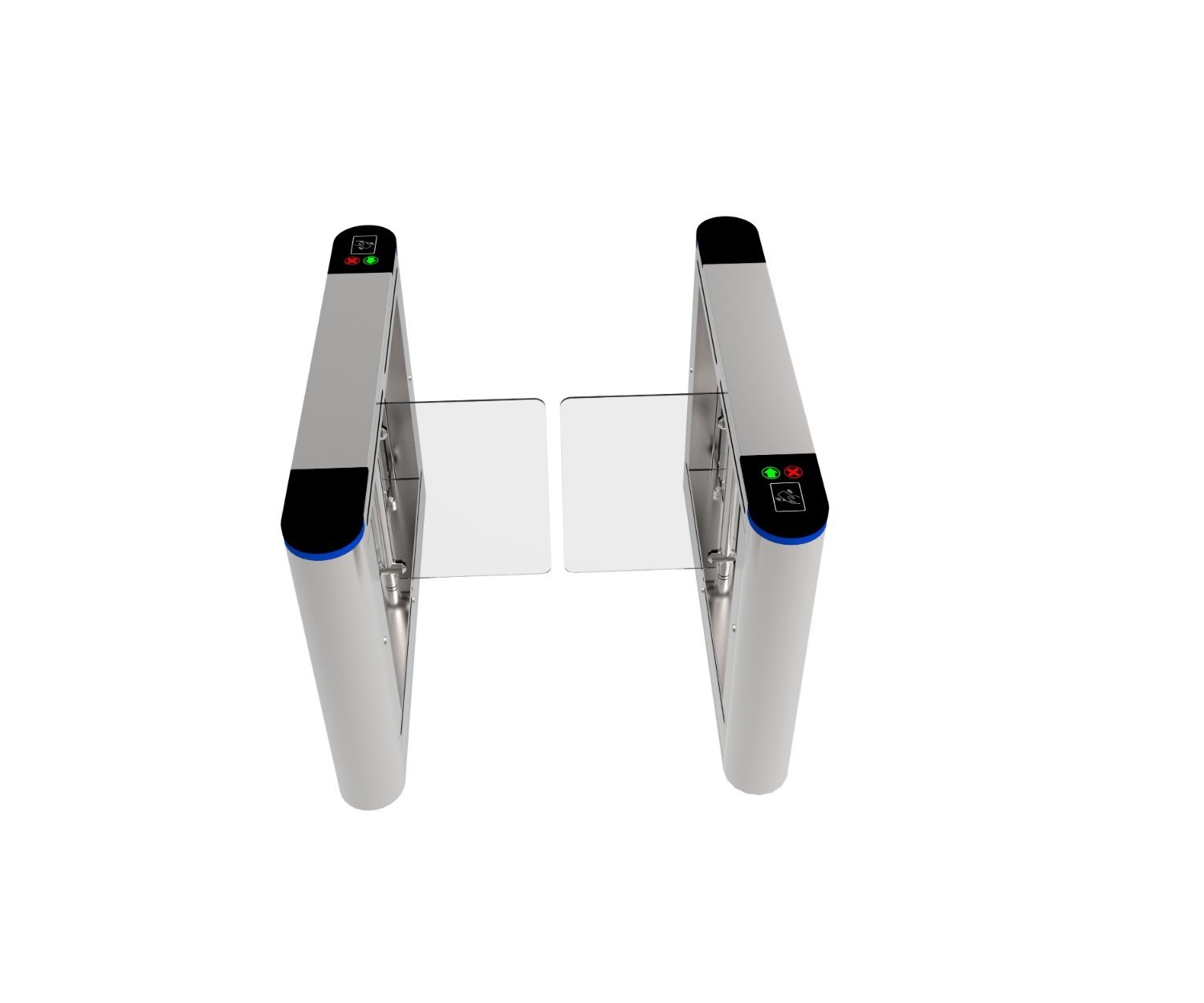

AURO-TA-SB306

Robust Premium swing barrier with a 10mm acrylic wing (glass or PC option), 5-pair IR, on a brushless DC drive. Standard or wide lane.

Model Code Auro-TA-SB306
Dimensions (L x W x H) 1400x185x1020 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing Acrylic 10mm / Glass / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 5 pairs
Drive Brushless DC
Approx. Weight 65 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Power Standby under 30W / run under 80W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA-SB3216-S/D

Slim-cabinet swing barrier, single or dual, illuminated 10mm acrylic or PC wing, 6-pair IR, brushless DC drive.

Model Code Auro-TA-SB3216-S/D
Dimensions (L x W x H) 1400x160x980 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing Acrylic 10mm / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 6 pairs
Drive Brushless DC
Approx. Weight 45 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.2 mm
Power Standby 20W / run 50W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE

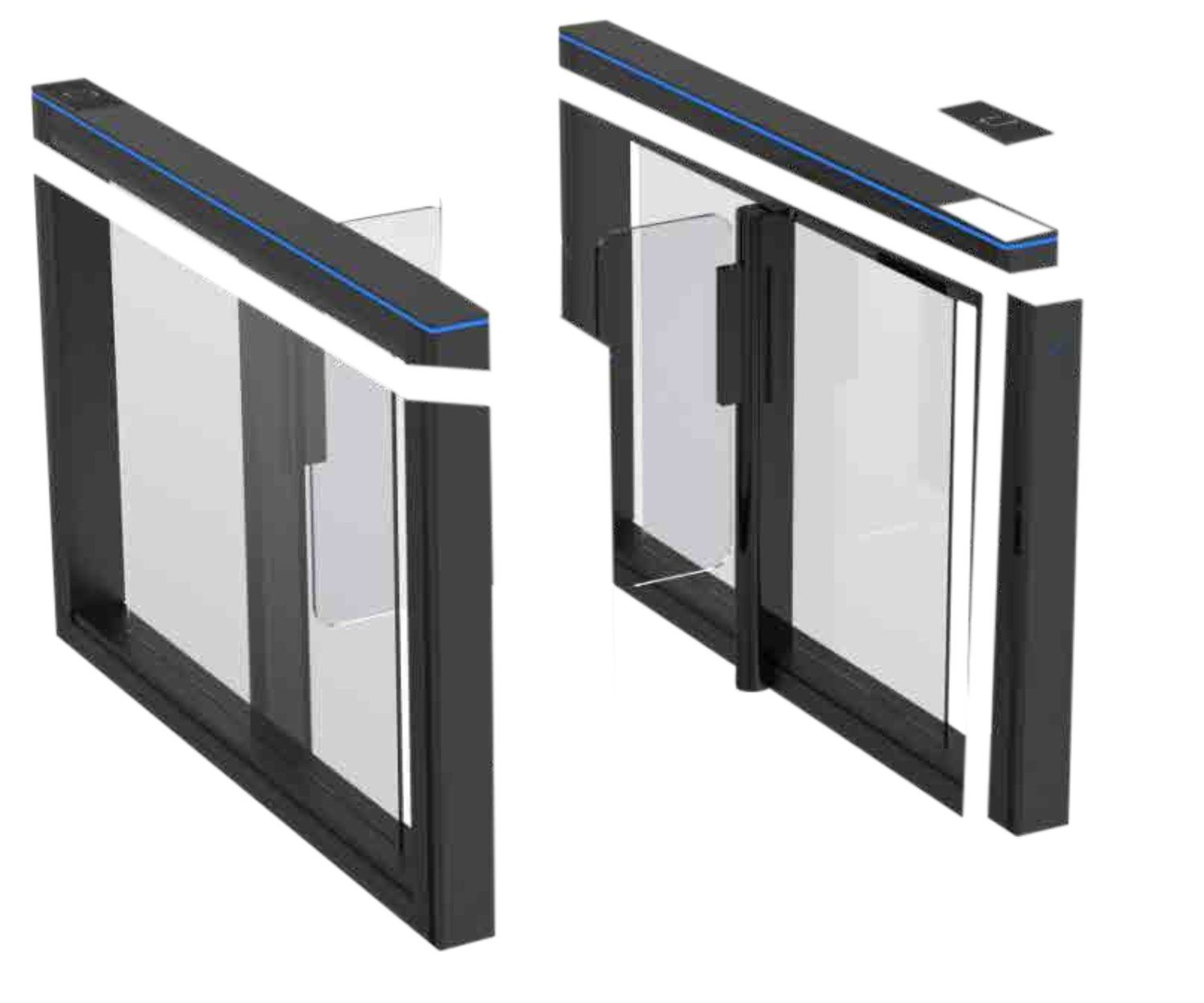

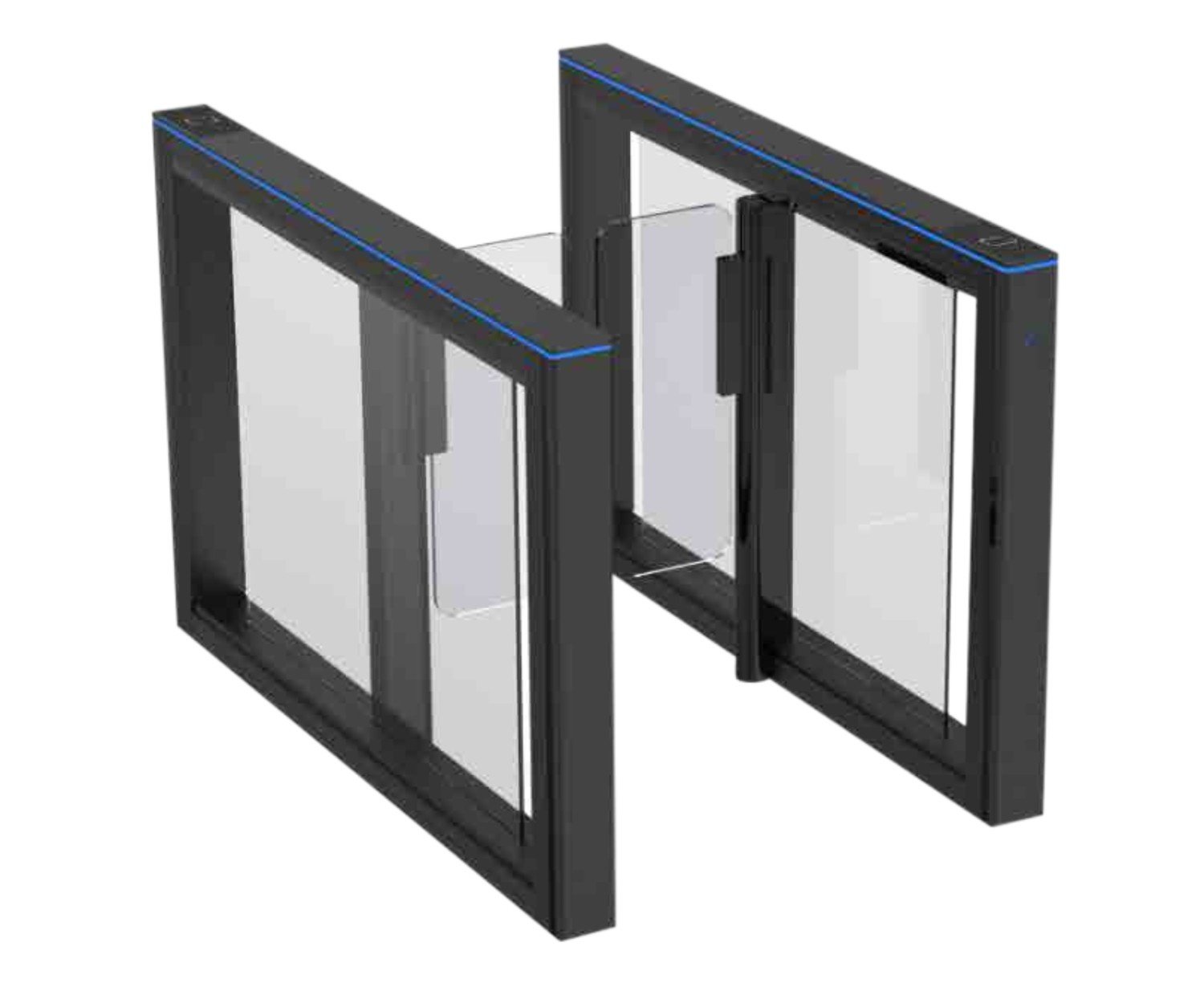

AUROT-TA-SB3217-S/D

Top swing barrier on a high-performance servo drive rated to 15 million cycles, anodized aluminium cabinet, 8-pair IR, adjustable open time.

Model Code Auro-TA-SB3217-S/D
Dimensions (L x W x H) 1500x110x990 mm
Cabinet Material Anodized Aluminium
Wing Acrylic 10mm / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 8 pairs
Drive Servo (high performance)
Approx. Weight 65 kg
Opening / Closing Time 0.5 to 1.5 sec (adj.)
Material Thickness 1.2 mm
Power Standby 50W / run 120W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 15 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE

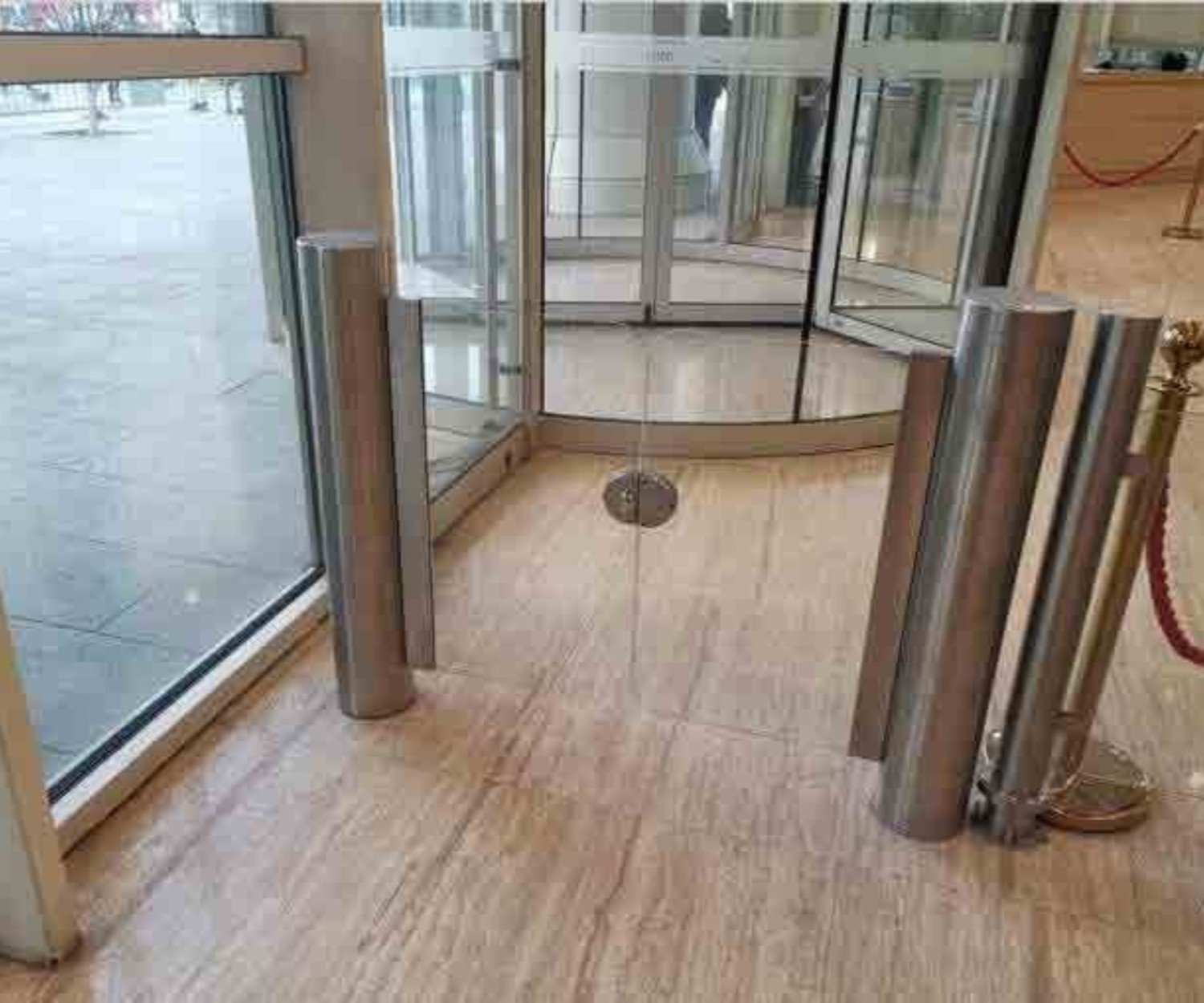

AURO-TA- SB318

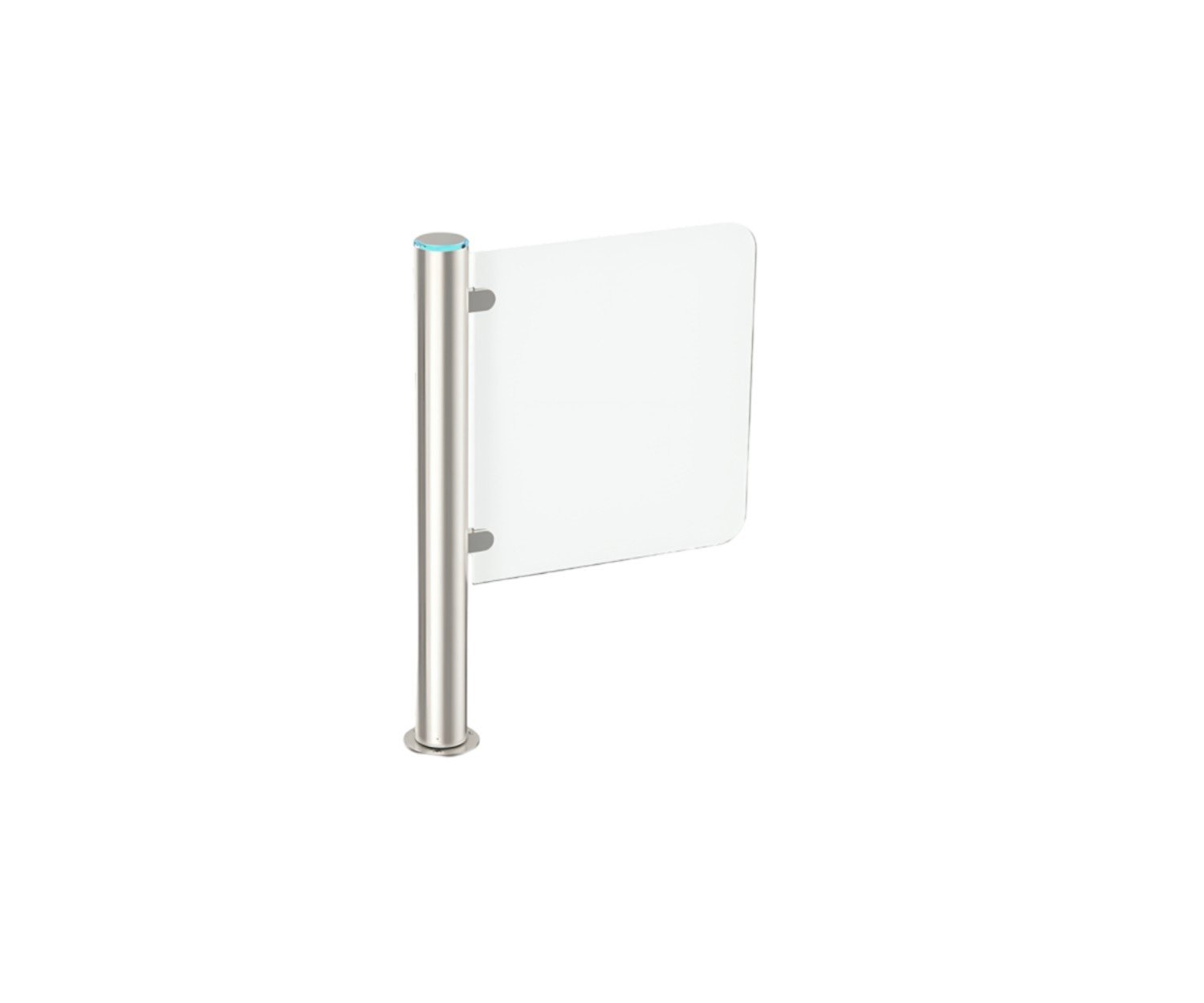

Swing P-type gate for wide access, a P-shaped SS or glass wing on a cylindrical post, brushless DC or servo drive. Trolley and assisted passage.

Model Code Auro-TA-SB318
Dimensions (L x W x H) Dia 168 x 1000 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing SS 304 / Glass
Passage Clearance 550 / 900 mm
Throughput 20-25 / min
IR Sensors Not applicable
Drive Brushless DC / Servo
Approx. Weight 45 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Power Standby under 30W / run under 80W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA-SBPG328

P-gate for wide access with a P-type wing, 900mm standard passage customizable 500 to 1000mm, 3-pair IR, brushless DC or servo drive.

Model Code Auro-TA-SBPG328
Dimensions (L x W x H) 480x280x980 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing SS 304 / Glass
Passage Clearance 900 mm (500 to 1000)
Throughput 20-25 / min
Power Standby under 30W / run under 80W
Drive Brushless DC / Servo
Approx. Weight 55 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA-SB306

Robust Premium swing barrier with a 10mm acrylic wing (glass or PC option), 5-pair IR, on a brushless DC drive. Standard or wide lane.

Model Code Auro-TA-SB306
Dimensions (L x W x H) 1400x185x1020 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing Acrylic 10mm / Glass / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 5 pairs
Drive Brushless DC
Approx. Weight 65 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Power Standby under 30W / run under 80W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA-SB3216-S/D

Slim-cabinet swing barrier, single or dual, illuminated 10mm acrylic or PC wing, 6-pair IR, brushless DC drive.

Model Code Auro-TA-SB3216-S/D
Dimensions (L x W x H) 1400x160x980 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing Acrylic 10mm / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 6 pairs
Drive Brushless DC
Approx. Weight 45 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.2 mm
Power Standby 20W / run 50W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AUROT-TA-SB3217-S/D

Top swing barrier on a high-performance servo drive rated to 15 million cycles, anodized aluminium cabinet, 8-pair IR, adjustable open time.

Model Code Auro-TA-SB3217-S/D
Dimensions (L x W x H) 1500x110x990 mm
Cabinet Material Anodized Aluminium
Wing Acrylic 10mm / PC
Passage Clearance 550 / 900 mm
Throughput 30-35 / min
IR Sensors 8 pairs
Drive Servo (high performance)
Approx. Weight 65 kg
Opening / Closing Time 0.5 to 1.5 sec (adj.)
Material Thickness 1.2 mm
Power Standby 50W / run 120W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 15 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA- SB318

Swing P-type gate for wide access, a P-shaped SS or glass wing on a cylindrical post, brushless DC or servo drive. Trolley and assisted passage.

Model Code Auro-TA-SB318
Dimensions (L x W x H) Dia 168 x 1000 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing SS 304 / Glass
Passage Clearance 550 / 900 mm
Throughput 20-25 / min
IR Sensors Not applicable
Drive Brushless DC / Servo
Approx. Weight 45 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Power Standby under 30W / run under 80W
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE
AURO-TA-SBPG328

P-gate for wide access with a P-type wing, 900mm standard passage customizable 500 to 1000mm, 3-pair IR, brushless DC or servo drive.

Model Code Auro-TA-SBPG328
Dimensions (L x W x H) 480x280x980 mm
Cabinet Material SS 304 / SS 316 / Powder Coated
Wing SS 304 / Glass
Passage Clearance 900 mm (500 to 1000)
Throughput 20-25 / min
Power Standby under 30W / run under 80W
Drive Brushless DC / Servo
Approx. Weight 55 kg
Opening / Closing Time under 0.5 sec
Material Thickness 1.5 mm
Input 110 to 220V AC, 50-60 Hz
MTBF / MTTR 10 M / under 30 min
Ingress / Temp IP 44 / -10 to 55C
Access Control (opt) RFID/FP/QR/Face/Iris/Morpho
Certification CE

Full Specification Comparison

Specification Auro-TA-SB306 Auro-TA-SB3216-S/D Auro-TA-SB3217-S/D Auro-TA-SB318 Auro-TA-SBPG328
Best for Premium swing lanes Slim, illuminated lanes Highest-cycle servo lanes Wide swing P-access Wide P-gate access
Wing Acrylic 10mm Acrylic 10mm illum. Acrylic 10mm illum. SS / Glass P-arm SS / Glass P-arm
Throughput 30-35 / min 30-35 / min 30-35 / min 20-25 / min 20-25 / min
Drive Brushless DC Brushless DC Servo BLDC / Servo BLDC / Servo
MTBF 10 M 10 M 15 M 10 M 10 M
Certification CE CE CE CE CE

Where These Doors Are Installed

Industries & Applications

Engineered for diverse industrial and commercial environments, our solutions are trusted across a wide range of industries and applications.

Aviation

Projects & Case Studies

Installed & Running

See how our solutions are helping businesses improve operational efficiency, safety, and reliability across diverse industries.

No projects or case studies added yet. Please add them from the back panel.

Frequently Asked Questions

Buyer's Questions, Answered

Common queries from facility managers, procurement heads, and plant engineers.

A swing barrier suits standard and wide access-control lanes with a glass or acrylic wing at 30 to 35 persons per minute. A P-gate gives wide, accessible passage (up to 900mm) with a P-type arm for trolleys, luggage and assisted entry at 20 to 25 per minute.
SB306 is the premium 10mm-wing model, SB3216 is a slim illuminated single or dual cabinet, and SB3217 runs a high-performance servo drive rated to 15 million cycles with adjustable open time for the busiest lanes.
Swing barriers use a 10mm acrylic wing as standard, with toughened glass or polycarbonate as options. P-gates use an SS 304 or glass P-type arm. SB3216 and SB3217 add blue and green wing illumination.
Yes. Anti-tailgating and anti-pass-back are standard on the swing barriers, reinforced with multiple IR sensor pairs: 5 on SB306, 6 on SB3216, and 8 on SB3217 for the highest sensing density.
RFID, fingerprint, QR, face scan, iris and Morpho are all supported as options, with fire alarm auto-open and configurable fail-safe or fail-secure modes as standard.
Standard sizes: 4 to 6 weeks from order confirmation. Custom sizes: 6 to 8 weeks. Manufactured at our facility in Ghaziabad, with site survey typically within 3 working days of enquiry.
Yes. Aurotoshi offers Annual Maintenance Contracts covering drive and wing servicing, IR and access-control calibration, and breakdown response. As the OEM we hold spares inventory, so there is no third-party lead-time risk.
Yes. Aurotoshi is a dedicated pedestrian access control manufacturer since 1992, engineering and assembling in-house, supplying EPC contractors, ELV consultants and procurement teams with BOQ and submittal support.

After Installation

Service & AMC for
Swing Barriers and P Gates

We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.

Preventive Maintenance
Quarterly AMC
  • Drive and wing mechanism servicing
  • IR sensor alignment
  • Access-control and reader calibration
  • Fail-safe mode testing
  • Service records provided
Breakdown Support
24-Hour Response
  • 24-hour response for AMC customers
  • OEM-held spares, no third-party lead time
  • Drive, controller and reader replacements
  • Trained engineers across Delhi NCR, Mumbai, Pune
Compliance & Records
Compliance Records
  • CE verification records
  • Fire alarm auto-open testing
  • Anti-pass-back and anti-tailgating checks
  • Integrated reporting via Aurionpro software
