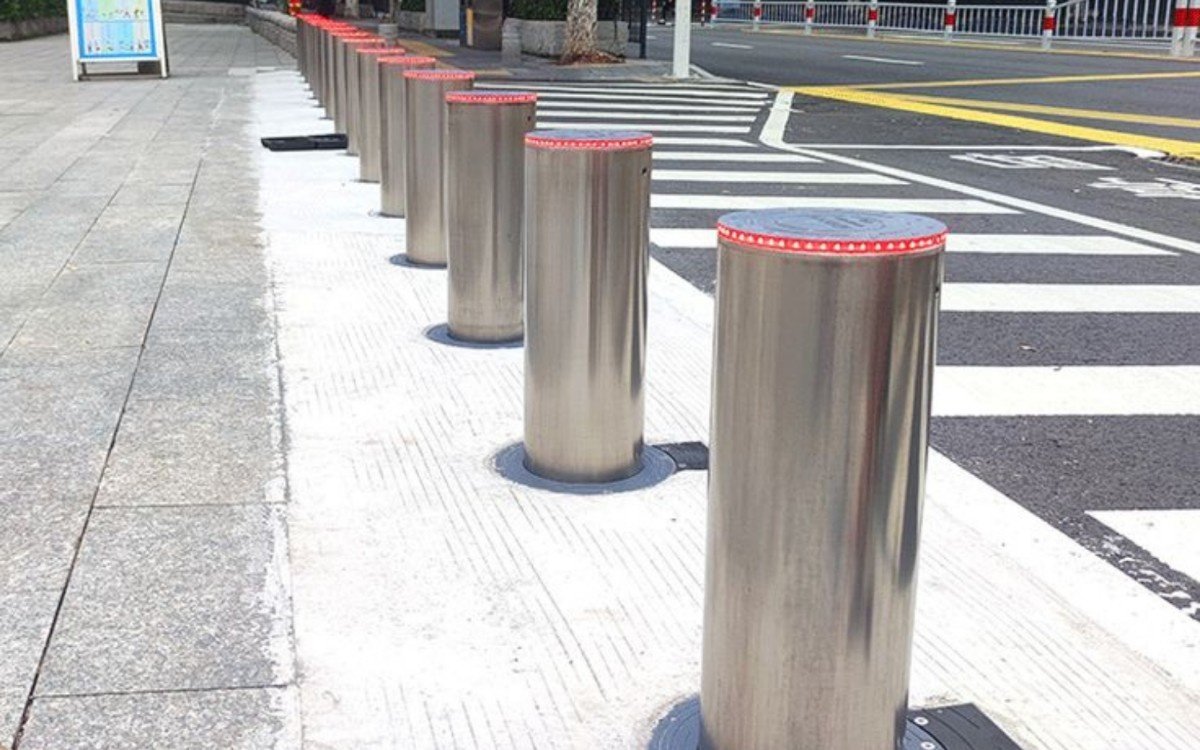

Security Bollards

🔍 Click to zoom

✉Get A Quote

About Product

Built To Secure Critical Access Points

Industrial and high-security facilities face the constant risk of unauthorized vehicle entry, making controlled perimeter protection critical. Security bollards are designed to prevent hostile vehicle intrusion while allowing regulated access for authorized traffic. They provide an effective solution for entrances where pedestrian safety, asset protection, and vehicle control are equally important.

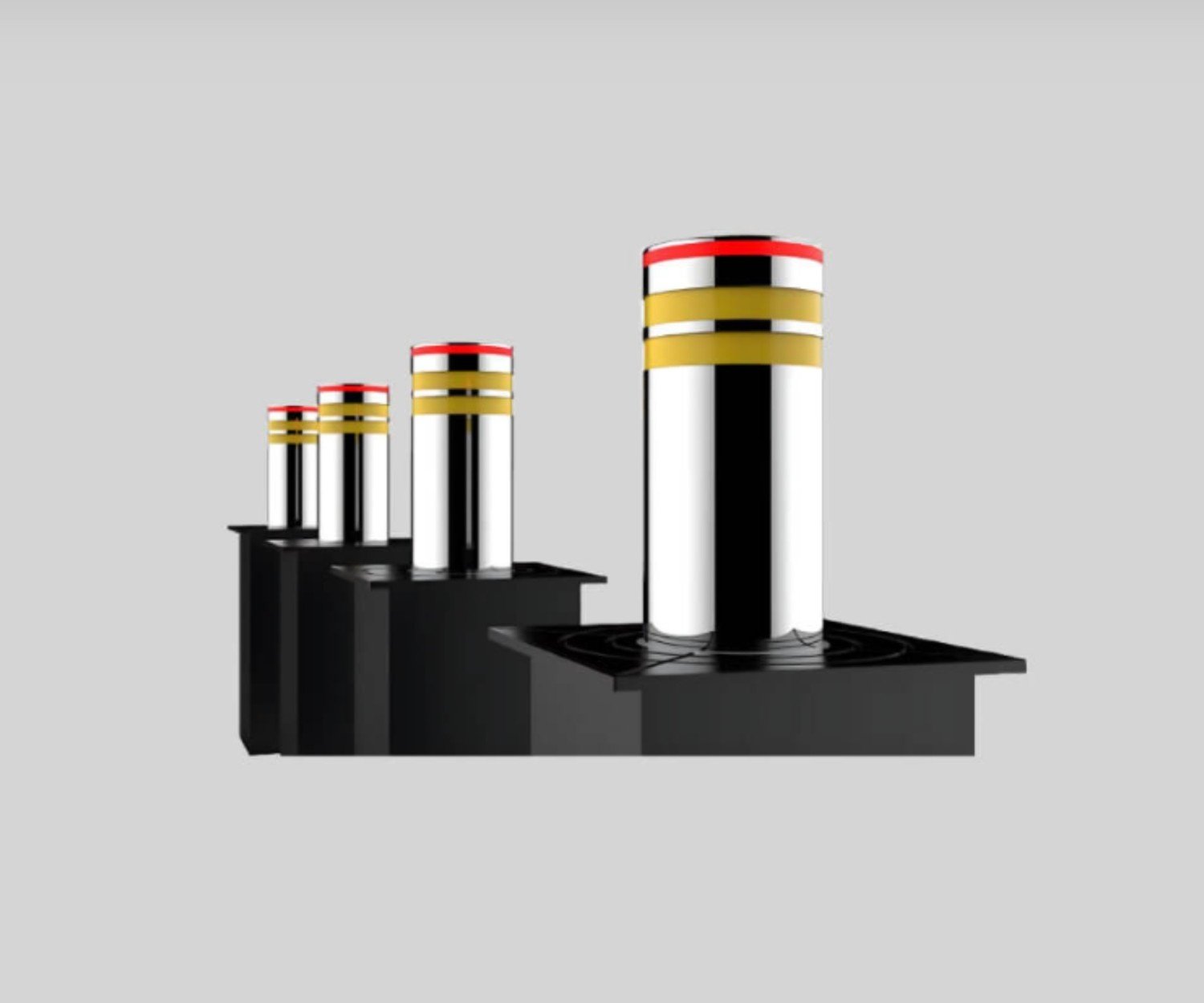

Aurotoshi manufactures two categories of bollards for different security requirements: crash-rated anti-terrorism bollards and commercial electro-hydraulic bollards. The crash-rated series is physically tested to internationally recognized impact standards for high-security installations, while the commercial series is engineered for demanding, high-cycle operation across commercial and public facilities. Both variants are built for reliable performance under Indian operating conditions and are suitable for government buildings, airports, data centres, commercial complexes, hotels, and critical infrastructure.

Features

Access Control Integration

Compatible with RFID, biometric, QR, and ticketing systems.

Automatic Operation

Raises and lowers automatically for controlled vehicle access.

High Impact Resistance

Designed to withstand vehicle impact and enhance perimeter security.

Hydraulic Drive System

Ensures smooth and reliable bollard movement.

Emergency Manual Override

Allows operation during power outages or emergencies.

Weather-Resistant Construction

Suitable for continuous outdoor operation in varying conditions.

Models & Specifications

Choose Your Specification

Choose from our range of high performance variants tailored to your specific facility requirements.

Auro-TA-275GS800

Premium perimeter, brushed finish

Crash Rating K-12 / PAS 68:2013 V/7500 (N2)/48/90:0.0/0.0

Emergency Operation Auto lowering with blackout device + hand pump

Cylinder Material Stainless Steel 304

Cylinder Diameter 220 mm

Cylinder Height 600 mm (customizable)

Cylinder Wall Thickness 25 mm

Cylinder Finish Brushed

Reflective Strip Yes (55 mm)

Rising Speed 10 cm/sec

Lowering Speed 15 cm/sec

Rising / Lowering Time 2 to 3 sec

Drive / Motor Electro-hydraulic, 2.2 kW pump, 400 V 3Ph+N+PE 50 Hz

Protection Grade IP67

Impact Resistance 30,000 J

Breakout Resistance 150,000 J

Life Average 5,000,000 MTBF (2000/day)

Duty Cycle 100%

Operating Temperature -25 to +60 C (frost protection to -50 C)

Control Unit PLC based, customizable access-control integration

Control Cable 10 m standard (max 80 m)

Safety Devices (optional) Loop detector (vehicle) + photo sensor (human)

Auro-TA-275GS800

Premium perimeter, brushed finish

Crash Rating K-12 / PAS 68:2013 V/7500 (N2)/48/90:0.0/0.0

Emergency Operation Auto lowering with blackout device + hand pump

Cylinder Material Stainless Steel 304

Cylinder Diameter 220 mm

Cylinder Height 600 mm (customizable)

Cylinder Wall Thickness 25 mm

Cylinder Finish Brushed

Reflective Strip Yes (55 mm)

Rising Speed 10 cm/sec

Lowering Speed 15 cm/sec

Rising / Lowering Time 2 to 3 sec

Drive / Motor Electro-hydraulic, 2.2 kW pump, 400 V 3Ph+N+PE 50 Hz

Protection Grade IP67

Impact Resistance 30,000 J

Breakout Resistance 150,000 J

Life Average 5,000,000 MTBF (2000/day)

Duty Cycle 100%

Operating Temperature -25 to +60 C (frost protection to -50 C)

Control Unit PLC based, customizable access-control integration

Control Cable 10 m standard (max 80 m)

Safety Devices (optional) Loop detector (vehicle) + photo sensor (human)

Full Specification Comparison

Specification	Auro-TA-275GS800
Best for	High-visibility premium entrances
Corrosion resistance	Highest, brushed SS 304
Wall thickness	25 mm
Finish	Brushed steel
Crash rating	K-12 / PAS 68
Economics	Premium

Where These Doors Are Installed

Industries & Applications

High speed doors operate across six distinct application environments — each with specific compliance, speed, and hygiene requirements.

Aviation

Data Centres

Projects & Case Studies

Installed & Running

High speed doors from Aurotoshi are operational at over 200 industrial facilities. A selection of reference projects below.

No projects or case studies added yet. Please add them from the back panel.

Frequently Asked Questions

Buyer's Questions, Answered

Common queries from facility managers, procurement heads, and plant engineers.

A crash-rated hydraulic bollard is a rising steel cylinder installed at a perimeter entry point to physically stop a hostile vehicle. The Auro-TA-275GS800 is rated K-12 / PAS 68:2013 and was tested at MIRA Horiba UK, stopping a 7.2 ton vehicle at 80 km/h with only 0.1 m of penetration. It rises on signal and lowers flush to let cleared traffic pass.

K-12 and PAS 68 are recognised anti-ram vehicle-barrier standards. The classification PAS 68:2013 V/7500 (N2)/48/90:0.0/0.0 records that a 7,500 kg vehicle at 48 km/h was stopped with zero penetration. Third-party certification is issued per single bollard, not per set.

Rising speed is 10 cm/sec and lowering speed is 15 cm/sec, giving a 2 to 3 second cycle. An emergency fast-operation option raises the bollard even quicker using an accumulator.

The bollard has an integrated hydraulic hand pump and a blackout auto-lowering device, so operators keep control during an outage. A UPS can be added to hold the bollard raised in the up position on power loss.

Yes. A single PLC control panel operates a set of bollards, for example a set of seven at one gate, with push-button, RFID and access-control triggering. The system integrates with CCTV and perimeter security.

The PLC control unit integrates with fire alarm and access-control systems. Optional safety devices include a loop detector for vehicles and a photo sensor for pedestrians. Emergency inputs such as a Knox box or strobe allow quick lowering for police, fire and ambulance access.

Lead time depends on quantity and site civil readiness. Contact us for a project schedule after a site survey. The bollards are manufactured at our facility in Ghaziabad.

Yes. Aurotoshi is an OEM and ODM manufacturer supplying EPC contractors, security integrators and consultants, with custom spec sheets, crash certificates and documentation available on request.

After Installation

Service & AMC for
Security Bollards

We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.

Preventive Maintenance

Quarterly AMC

Hydraulic power unit and fluid inspection
Cylinder, seal and reflective-strip check Rising and lowering time measurement
PLC panel and LED signal test
Blackout and hand-pump fail-safe test

Breakdown Support

24-Hour Response

24-hour response for AMC customers
In-house spare parts, no import lead times
Trained engineers across Delhi NCR, Mumbai, Pune
Priority response for high-security sites

Compliance & Records

Compliance Records

Crash-certificate and service records for security audits
Loop-detector and photo-sensor calibration logs
Annual PLC and hydraulic check
Integrated reporting via Aurionpro software
