Two Builds, One Job At The Gate
A boom barrier is judged on two things: how many times a day it can cycle without complaint, and how far it can reach across the lane. Everything else follows from those.
Aurotoshi supplies two boom barrier product families to meet different vehicle access requirements. RIB, Italy, offers a 100% European-built range compliant with applicable EN standards, with 100% duty-class models designed for demanding industrial perimeters, toll and highway lanes, and exposed sites where long booms, wind loads, and frequent operation are key considerations. The range includes Extra Heavy-Duty models with boom lengths up to 7 metres, a 300 Nm actuator, and IP55 protection; Heavy-Duty models for 4- and 6-metre lanes with up to 1,500 cycles per day; and Low Intensity models with telescopic booms for locations where swing arc or headroom is restricted.
The Aurotoshi PB001 is an automatic boom barrier manufactured at the company's Ghaziabad facility and CE certified. It supports boom lengths up to 6 metres, opening times of 4 to 5 seconds, and an 80% duty cycle. Features include spring counterbalance, thermal motor protection, and magnetic limit switches. It is suited to parking facilities, warehouse yards, and corporate entrances where vehicle traffic is steady rather than continuous.
As a Boom Barrier Manufacturer in India, Aurotoshi provides solutions for both demanding industrial perimeters and everyday vehicle access points. Every unit includes a built-in de-clutch for manual operation during a power cut, and spare parts for both product families are held in Ghaziabad.
Features
100% Duty Class on Every RIB Build
Rated for continuous cycling, up to 1500 operations a day on Rapid-N.
Reach Up to 7 Metres
Ø80 mm aluminium boom on a 300 Nm actuator for the widest industrial lanes.
Open in Three Seconds
Rapid-S clears a 4 m boom in 3 to 4 seconds on a fan-cooled drive.
Built to EN 60335-2-103
Magnetic encoder detects an obstacle and reverses the boom, as the norm requires.
EN 12978 Safety Devices
FOTOCOSTA safety edge, NOVA photocells and LASERIB detector, all PL"c" Cat.2.
Cataphoresis-Treated Columns
RAPID columns carry cataphoresis and thermosetting treatment against corrosion.
A boom barrier is an automatic vehicle access control solution designed to regulate entry and exit at designated checkpoints. It is commonly used at parking facilities, industrial premises, commercial buildings, warehouses, residential complexes, and other locations where vehicle movement needs to be managed efficiently.
The right boom barrier gate helps control vehicle access, organise traffic flow, and support the security procedures of a facility. Selection depends on factors such as lane width, traffic volume, operating frequency, opening time, safety requirements, and compatibility with the site's access control system.
Aurotoshi provides boom barrier solutions for a range of vehicle access requirements, combining the RIB, Italy product range with the India-built Aurotoshi PB001. This allows customers to evaluate different configurations according to their site's operating conditions and security needs.
The RIB range includes models for different boom lengths and operating frequencies, from compact entrances to heavy-duty industrial applications. The Aurotoshi PB001 is suited to applications such as parking facilities, warehouse entrances, and corporate premises where controlled vehicle movement is required.
As a Boom Barrier Manufacturer in India, Aurotoshi offers an India-built option alongside its RIB range, helping project teams assess the appropriate solution for their entrance layout, operating requirements, and installation environment.
An automatic boom barrier can be integrated into a vehicle entry system to help manage authorised access and reduce the need for manual gate operation. Depending on the selected configuration, additional devices can support vehicle detection, credential-based entry, and controlled opening and closing.
Typical applications include:
-
Commercial parking facilities: Manage vehicle entry and exit at parking lots, office complexes, and parking structures.
-
Industrial facilities: Regulate vehicle movement at factory entrances, production facilities, and restricted areas.
-
Warehouses and logistics centres: Organise vehicle access at loading areas, storage facilities, and distribution centres.
-
Corporate and commercial buildings: Control entry at office campuses, business parks, and employee parking areas.
-
Residential and institutional premises: Manage vehicle access at designated entrances and checkpoints.
The final configuration should be selected according to traffic conditions, lane dimensions, safety provisions, and the level of access control required.
Before selecting a boom barrier gate, consider the following factors to ensure that the model suits the intended application.
Boom Length and Entrance Width
Measure the vehicle lane and determine the required boom length. The available Aurotoshi and RIB models cover different lane widths, with options extending up to 7 metres.
Operating Frequency and Duty Cycle
Consider the number of vehicles expected to pass through the entrance each day. A high-traffic industrial checkpoint may require a different duty class from a corporate entrance or parking facility with moderate traffic.
Opening Time and Traffic Flow
The required opening time depends on vehicle volume, queue conditions, and site operations. Compare the model's specified opening time with the expected traffic flow rather than selecting a barrier on speed alone.
Safety and Access Control Integration
Photocells, optional loop detectors, RFID credentials, and QR-based ticketing may be available depending on the selected model and configuration. Confirm the required devices and integration compatibility before finalising the system.
Environmental and Installation Conditions
Assess exposure to dust, moisture, temperature variations, and other site conditions. Check the selected model's ingress protection rating and operating temperature range against the actual installation environment.
Aurotoshi's boom barrier range gives project teams options for different vehicle access requirements, from everyday parking control to heavy-duty industrial entrances. The available models differ in boom length, drive configuration, duty cycle, opening time, and protection rating, so the final selection should be based on verified model specifications.
For a broader entrance security setup, boom barriers can be considered alongside entrance gates for perimeter access. Facilities requiring controlled pedestrian movement can also evaluate flap barrier turnstiles as part of their access management arrangement.
Explore the available models and specifications to identify a suitable boom barrier for your facility. Contact Aurotoshi to discuss your lane dimensions, daily traffic, operating requirements, and access control needs.
Models & Specifications
Choose Your Specification
Choose from our range of high performance variants tailored to your specific facility requirements.

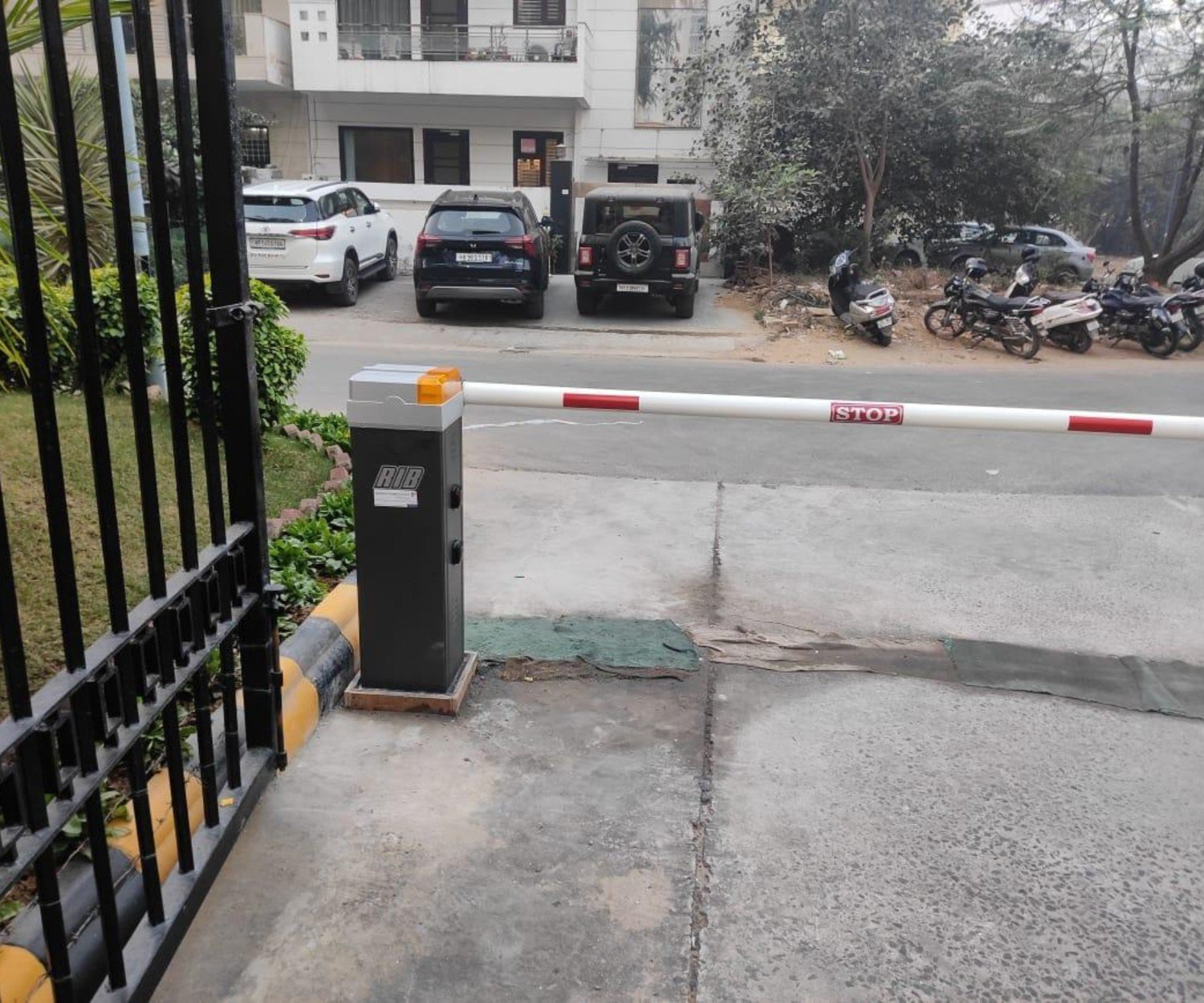

Fast robust heavy-duty boom barrier, up to 4 metre boom, opening in 3 to 4 seconds. Fan-cooled drive on a RIB Italy P1-CRX control board, IP54.
Fast robust heavy-duty boom barrier, up to 6 metre boom, opening in 5 to 6 seconds. Fan-cooled drive, RIB P1-CRX board, up to 1500 cycles per day.

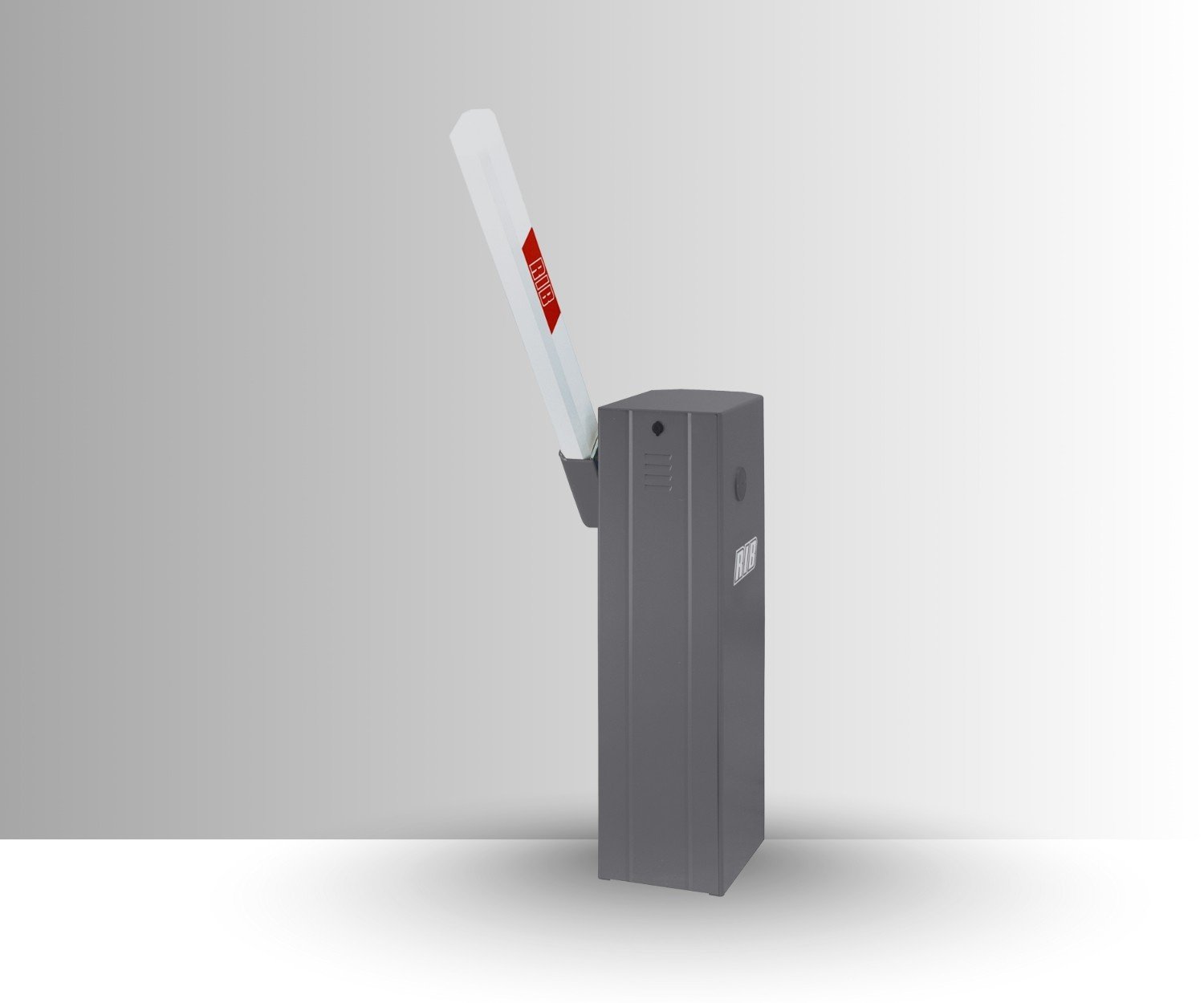

Extra heavy-duty boom barrier, up to 7 metre boom, air-cooled drive on a RIB P1-CRX board. 145 kg actuator, IP55, rated to 5 million cycles.

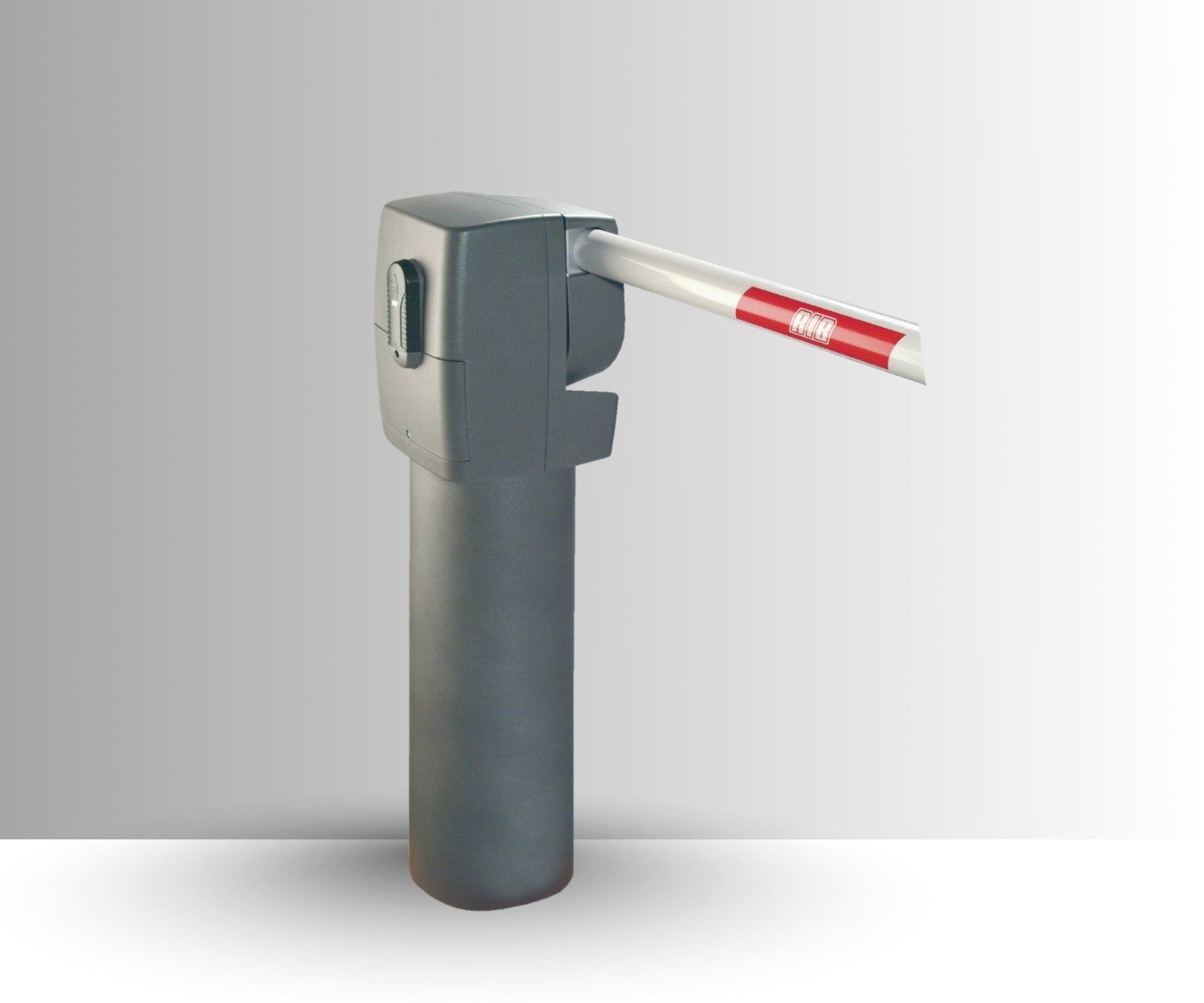

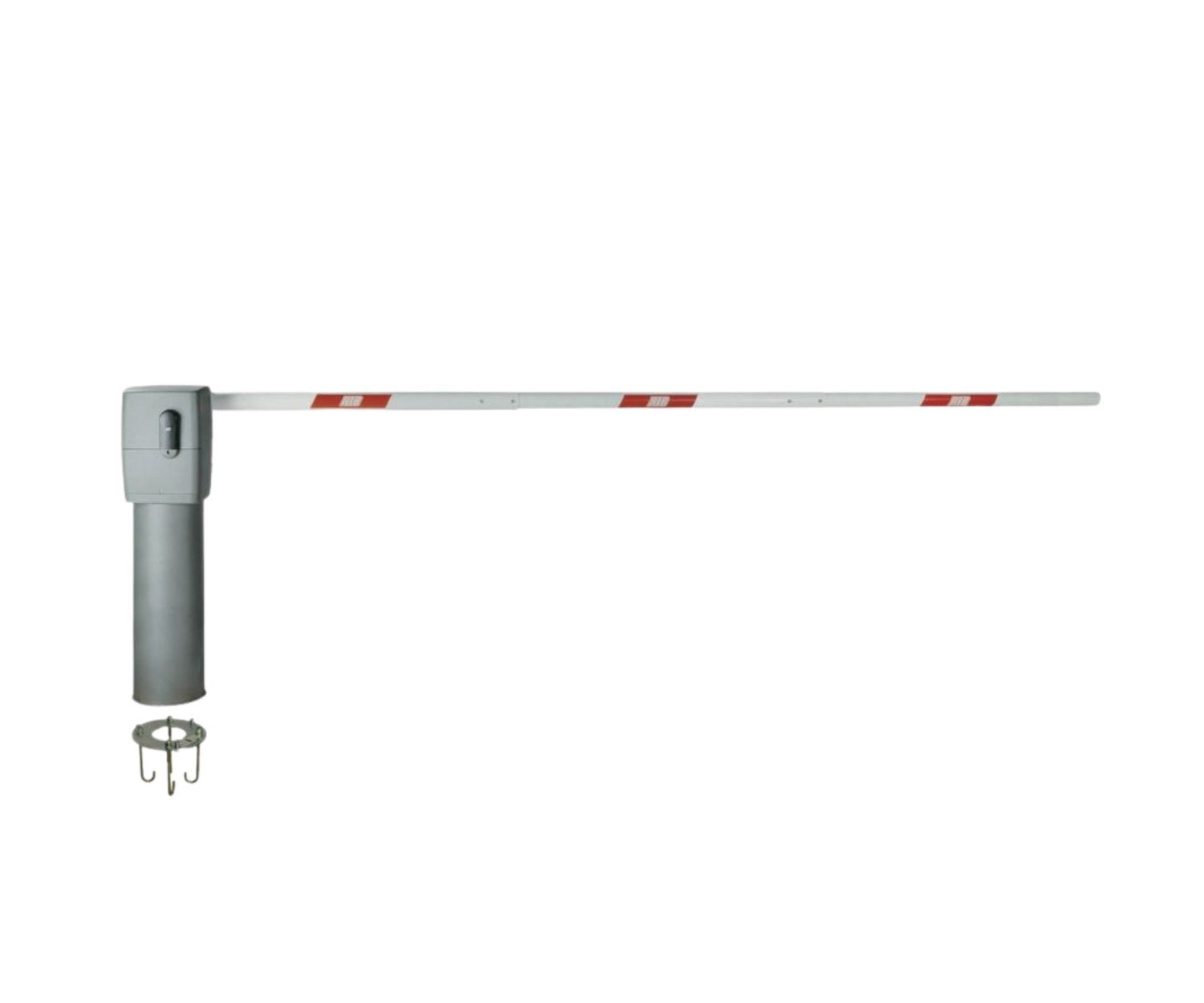

Low-intensity boom barrier, up to 4 metre telescopic boom, air-cooled drive on a RIB P1 24V-CRX board. Compact 40 kg actuator for lighter duty.
India-built electro-mechanical barrier with spring counterbalance, thermal motor protection and magnetic limit switches. Reaches 5 metres in 3 to 5 seconds at 80% duty.
Fast robust heavy-duty boom barrier, up to 4 metre boom, opening in 3 to 4 seconds. Fan-cooled drive on a RIB Italy P1-CRX control board, IP54.
Fast robust heavy-duty boom barrier, up to 6 metre boom, opening in 5 to 6 seconds. Fan-cooled drive, RIB P1-CRX board, up to 1500 cycles per day.
Extra heavy-duty boom barrier, up to 7 metre boom, air-cooled drive on a RIB P1-CRX board. 145 kg actuator, IP55, rated to 5 million cycles.
Low-intensity boom barrier, up to 4 metre telescopic boom, air-cooled drive on a RIB P1 24V-CRX board. Compact 40 kg actuator for lighter duty.
India-built electro-mechanical barrier with spring counterbalance, thermal motor protection and magnetic limit switches. Reaches 5 metres in 3 to 5 seconds at 80% duty.
Full Specification Comparison
| Specification | RIB Rapid-S | RIB Rapid-N | RIB Normal | RIB President | PB In-House |
|---|---|---|---|---|---|
| Choose it when | The lane is under 4 m and every second at the gate counts | The lane is up to 6 m and q00% duty cycle is required | The opening is the widest on site and exposed to wind load | Swing arc or headroom is restricted, and duty is light | Parking, warehouse or corporate entry on a controlled budget |
| Build origin & class | RIB, Italy - Heavy-Duty | RIB, Italy - Heavy-Duty | RIB, Italy - Extra Heavy-Duty | RIB, Italy - Low Intensity | AuroToshi, India - High Intensity |
| Max boom / open time | 4 m / 3 to 4 sec | 6 m / 5 to 6 sec | 7 m / 11 sec | 4 m telescopic / 3 to 5 sec | — |
| Daily duty | 1200 cycles, 100% duty class | 1500 cycles, 100% duty class | 1000 cycles, 100% duty class | 600 cycles, 100% duty class | — |
| Service life | 3 million cycles | 3 million cycles | 5 million cycles | 1 million cycles | 0.5 million cycles |
| Certification | CECE, EN 60335-2-103, EN 12978 PL"c" Cat.2 | CE, EN 60335-2-103, EN 12978 PL"c" Cat.2 | CE, EN 60335-2-103, EN 12978 PL"c" Cat.2 | CE, EN 60335-2-103, EN 12978 PL"c" Cat.2 | CE |
| Open Time | — | — | — | — | 5 m / 3 to 5 sec |
| Duty / Day | — | — | — | — | 80% duty cycle |
Where These Doors Are Installed
Industries & Applications
Engineered for diverse industrial and commercial environments, our solutions are trusted across a wide range of industries and applications.

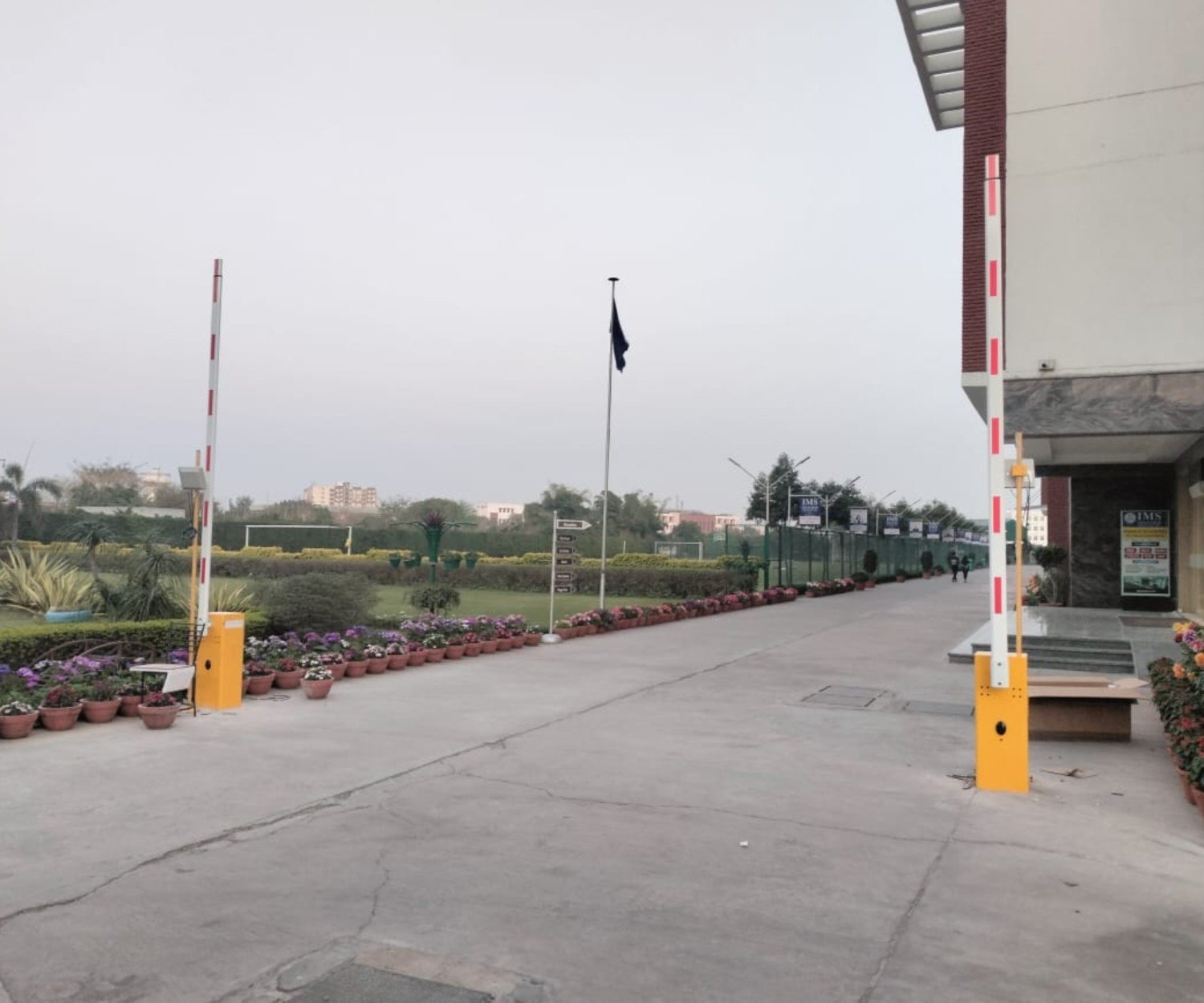

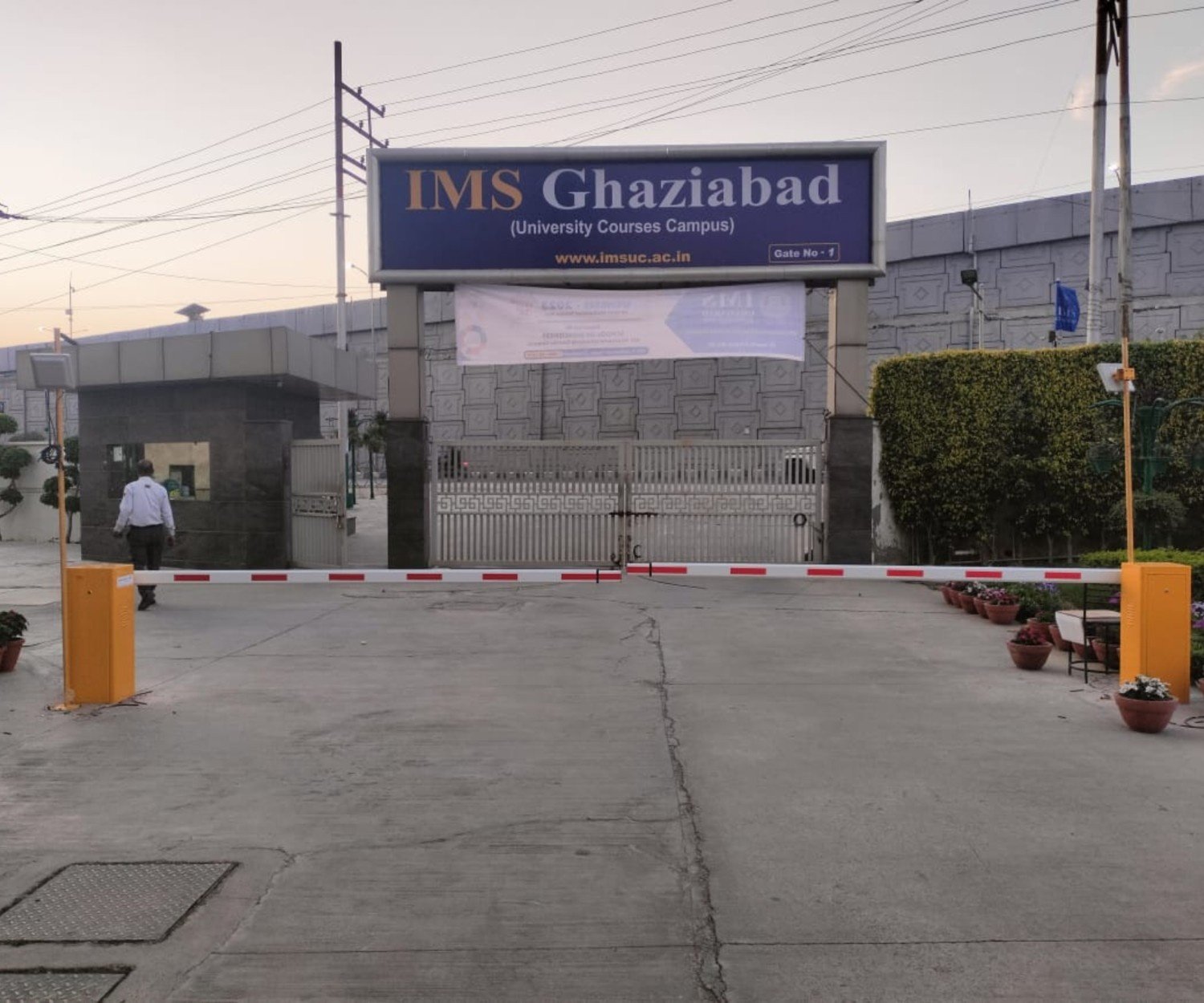

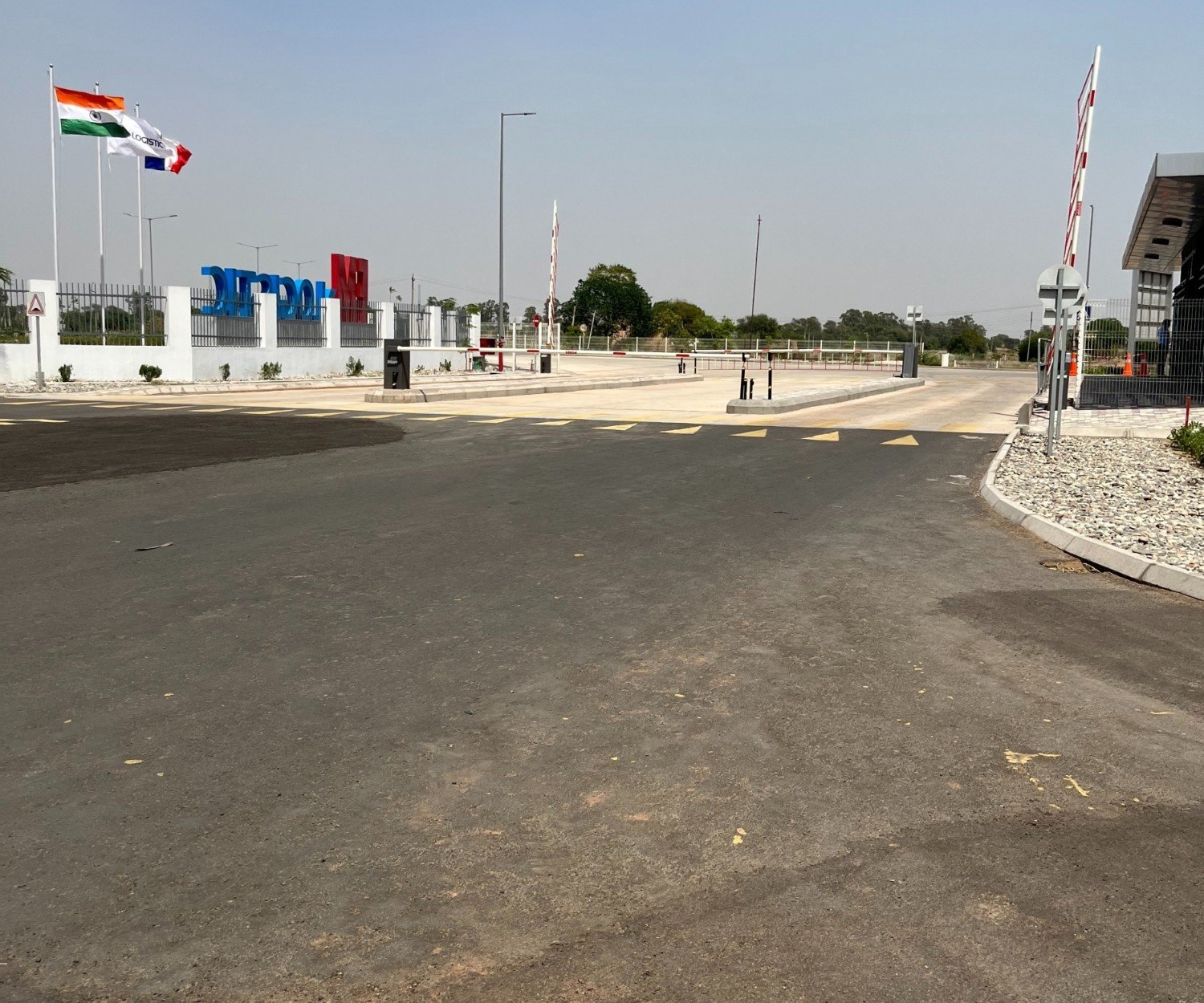

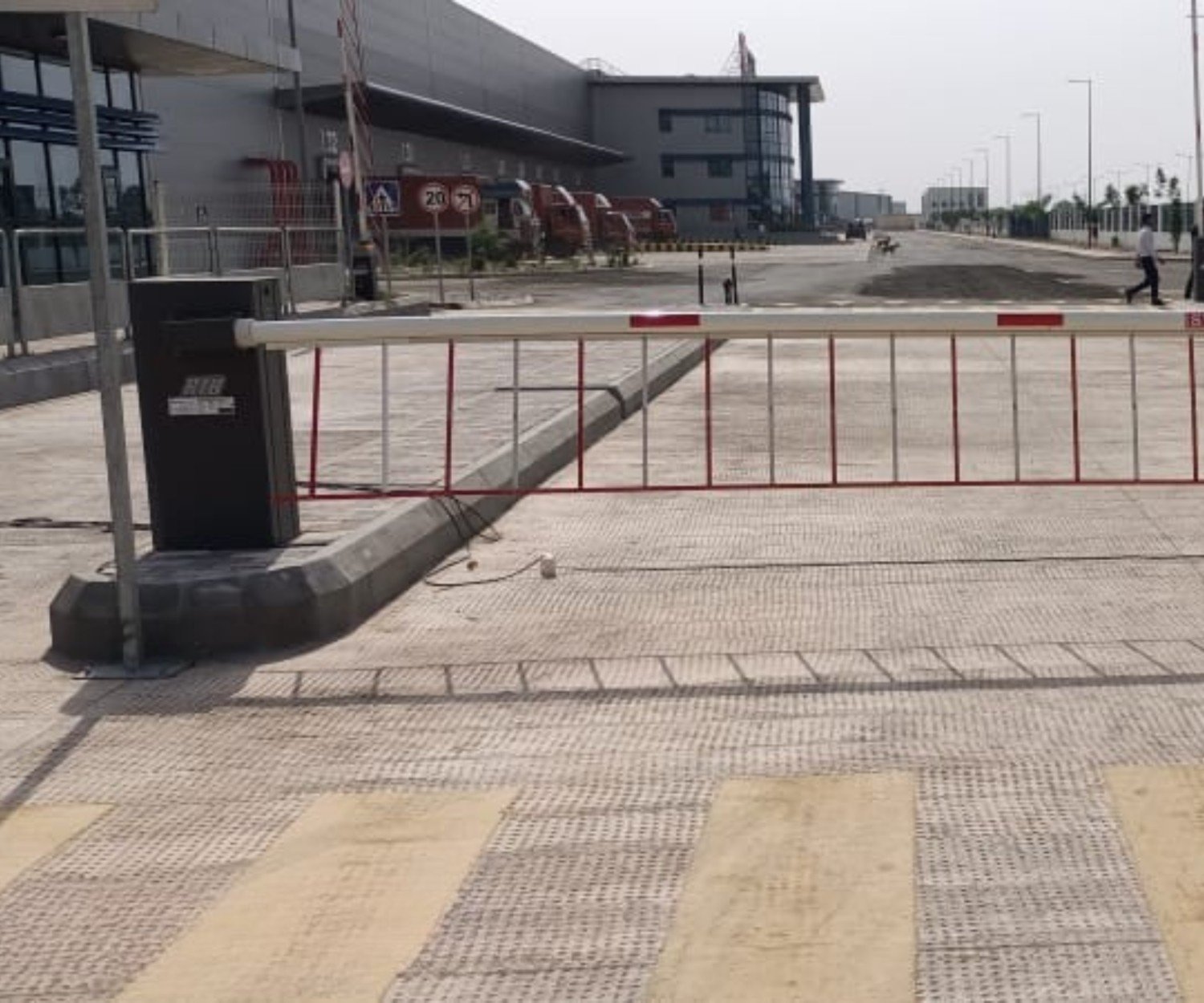

Projects & Case Studies
Installed & Running
See how our solutions are helping businesses improve operational efficiency, safety, and reliability across diverse industries.
Frequently Asked Questions
Buyer's Questions, Answered
Common queries from facility managers, procurement heads, and plant engineers.
An automatic boom barrier is a vehicle access control system that uses a motorised boom arm to regulate entry and exit at designated points. It can be integrated with access control devices, such as RFID readers, QR ticketing systems, and vehicle detectors, depending on the selected configuration.
The right boom barrier depends on lane width, traffic volume, operating frequency, and site conditions. RIB Rapid-S and Rapid-N suit different heavy-duty requirements, RIB Normal supports boom lengths up to 7 metres, and RIB President is designed for lower-intensity applications. The Aurotoshi PB001 is another option for parking facilities, warehouses, and corporate entrances.
Aurotoshi offers boom barrier solutions through its RIB, Italy range and the India-built PB001. The available configurations cater to different vehicle access requirements, from parking facilities and corporate entrances to industrial perimeters. Model selection should be based on verified specifications and the site's operating conditions.
The RIB Normal supports boom lengths up to 7 metres. RIB Rapid-N and Aurotoshi PB001 are listed for lengths up to 6 metres, while RIB Rapid-S and RIB President support up to 4 metres. RIB President also features a telescopic boom for installations where swing clearance or headroom is restricted.
Opening time varies by model and boom length. RIB Rapid-S opens in 3 to 4 seconds, RIB Rapid-N in 5 to 6 seconds, RIB President in 3 to 5 seconds, and RIB Normal in approximately 11 seconds. The Aurotoshi PB001 is specified at 3 to 5 seconds in the model specifications.
Aurotoshi's listed boom barrier models include a built-in de-clutch for manual operation during a power failure. The barrier can be operated manually according to the manufacturer's instructions and returned to normal operation when power is restored. Battery backup availability should be confirmed for the specific model and configuration.

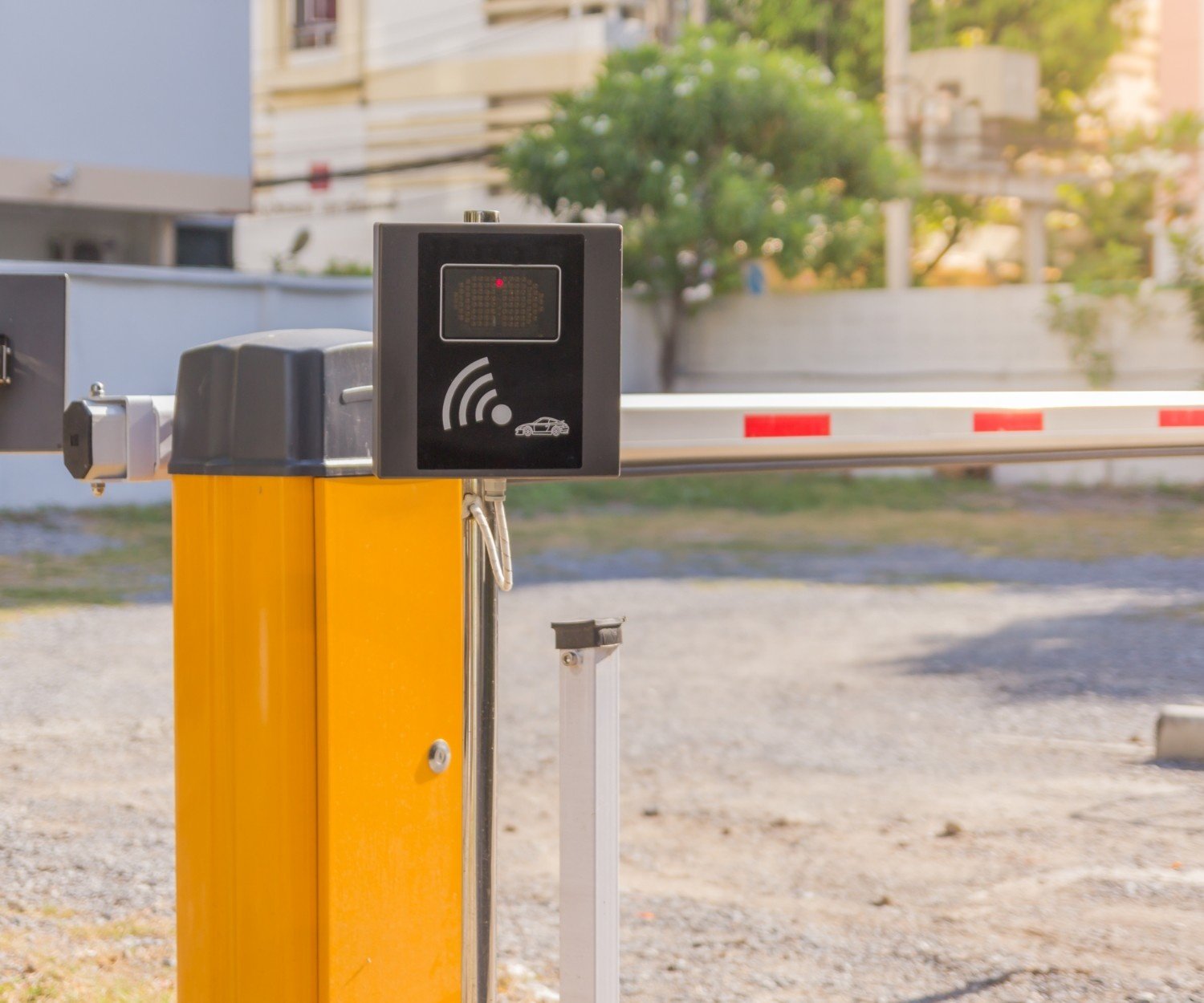

Depending on the model, available options include photocells, loop detectors, RFID long-range readers, and QR-based ticketing integration. These devices can support vehicle detection and authorised access when correctly configured. The required safety devices and integration compatibility should be confirmed before ordering.
The cost of a boom barrier in India depends on the selected model, boom length, duty cycle, access control integration, safety devices, and installation requirements. Heavy-duty configurations and customised projects may have different costs from standard parking applications. Contact Aurotoshi with your site requirements for a suitable model recommendation and quotation.
According to the supplied project information, standard sizes typically have a lead time of 1 to 2 weeks after order confirmation, while custom orders or bulk quantities may require 6 to 8 weeks. Site survey availability is typically within 3 working days of enquiry, subject to scheduling and site conditions.
Yes. Aurotoshi offers Annual Maintenance Contract (AMC) support for installed systems. Depending on the service agreement, maintenance can include drive and motor inspection, boom balancing, safety device checks, sensor calibration, and breakdown support. Service scope and response times should be confirmed when selecting the AMC plan.
After Installation
Service & AMC for
Boom Barriers
We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.
- Motor and drive servicing
- Spring and boom balancing
- Photocell and loop-detector calibration
- De-clutch mechanism check
- Service records provided
- 24-hour response for AMC customers
- In-house spare parts, no import lead times
- Motor, board and boom replacements
- Trained engineers across Delhi NCR, Mumbai, Pune
- CE and EN compliance records
- Photocell and loop-detector testing
- Boom-balance and safety checks
- Service records provided for audit
