About Product
Designed For Fast And Secure Entry

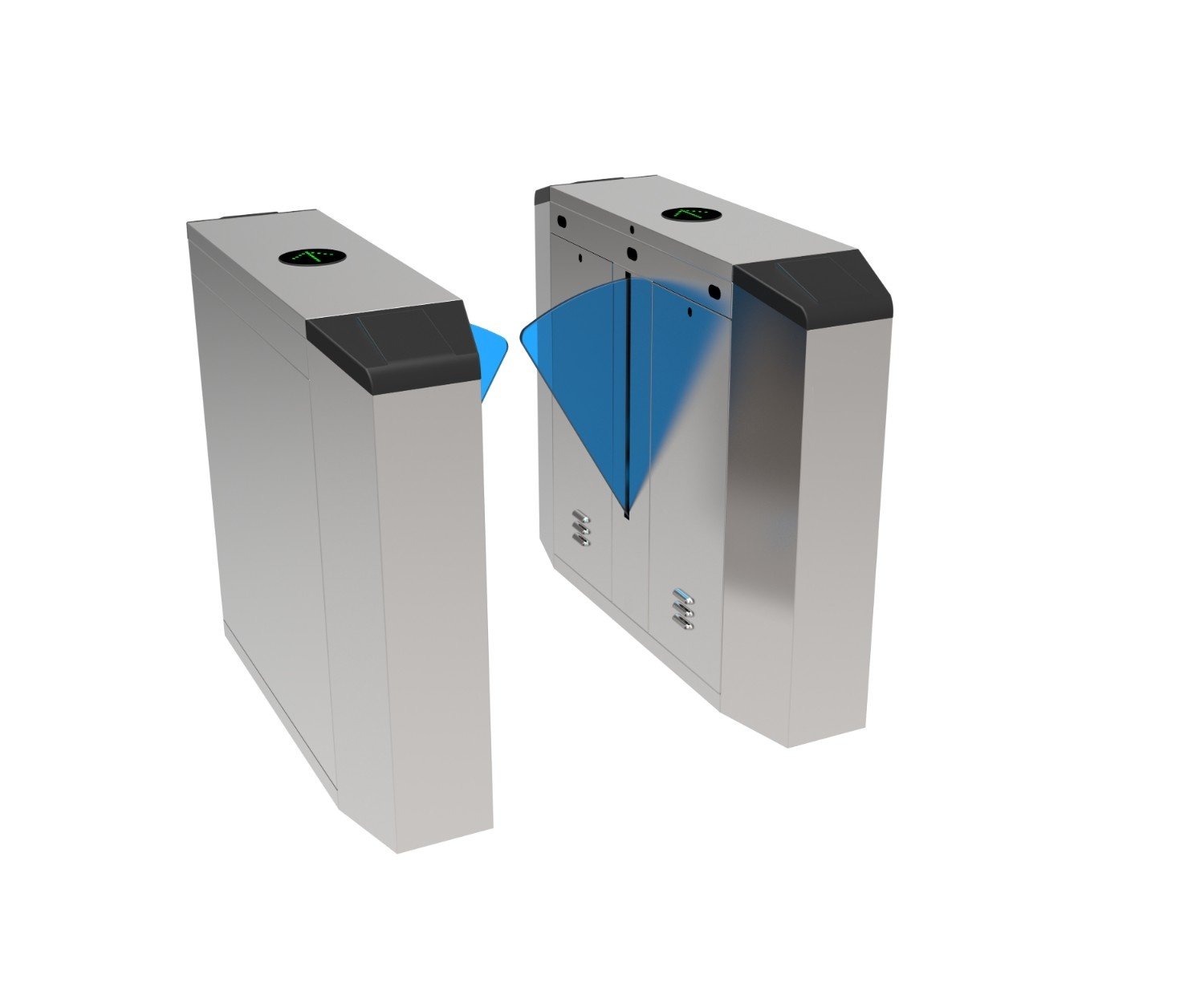

A flap barrier is the lane you specify when the constraint is throughput. Retractable wings clear the passage in under half a second and close behind each authorised person, so a queue keeps moving at walking pace instead of stopping at every credential.
It suits entrances that fill and empty in bursts, including corporate lobbies, multi-tenant technology parks, plant gates at shift change, educational institutions, and transit concourses.
Aurotoshi manufactures flap barrier turnstiles in three build tiers, ranging from brushless DC drives to quiet servo drives that can move over 35 people per minute.
Cabinets, wings, and drive assemblies are manufactured in-house in Ghaziabad. Each lane uses an Aurotoshi gate control unit with proprietary firmware for IR sensor coordination, passage timing, anti-tailgating, anti-pass-back logic, and fail-safe release on a fire alarm. This in-house capability supports customised passage sequences, integration changes, and field replacements directly.
Features
Brushless DC Drive, Under 0.5 Second
High-precision BLDC motor opens and closes the wing in under 0.5 seconds.
High Throughput for fast access
Sustains 30 to 35 persons per minute through a 550 mm passage.
Proprietary Anti-Tailgating & Piggybacking Logic
Up to six IR pairs; proprietary logic distinguishes tailgating and piggybacking from single passage.
Multi-Access Media Integration
RFID, QR, fingerprint, face and iris readers drive the lane over a pulse input.
Auto-Open on Fire Alarm
Wings retract automatically on fire alarm or power loss, clearing the lane.
SS 304 Cabinet, 10 Million Cycles
SS 304 hairline as standard; mechanism rated to 10 million cycles.
Aurotoshi is a Flap Barrier Manufacturer in India, offering automated flap barrier turnstiles for secure and efficient pedestrian access. Designed for entrances with high footfall, our flap barrier gates combine fast operation, infrared sensing, and access-control integration to help manage entry and exit in corporate offices, commercial buildings, industrial facilities, educational institutions, and transit stations.
Our flap barriers are available in three models, from the economy FB242 to the premium FB203-S/D and luxe FB221. Depending on the model, the systems support throughput of 30 to 35 persons per minute per lane, with opening and closing times under 0.5 seconds. These configurations allow facilities to select a flap barrier turnstile based on their security requirements, passage width, design preferences, and expected pedestrian traffic.
A flap barrier turnstile controls pedestrian movement by allowing authorised users to pass through retractable wings. Aurotoshi systems support integration with access-control technologies such as RFID cards, QR codes, fingerprint readers, facial recognition, and iris recognition. Infrared sensors monitor passage, while anti-tailgating and anti-pass-back logic help prevent unauthorised entry and repeated access attempts.
These features make our access control turnstiles suitable for facilities that need controlled pedestrian entry without slowing down everyday movement.
Aurotoshi flap barrier gates are designed for entrances that experience concentrated pedestrian movement during shift changes, office hours, class changes, or transit rush periods. The range includes brushless DC drive models and premium servo-drive configurations, with model-specific sensor arrangements and passage indicators.
Cabinets, wings, and drive assemblies are manufactured in-house at Aurotoshi's Ghaziabad facility. Proprietary gate-control firmware manages sensor coordination, passage timing, anti-tailgating, and anti-pass-back functions. This in-house capability also supports customised passage sequences and access-control integration requirements.
Selecting the right flap barrier depends on expected pedestrian traffic, required passage width, access-control technology, installation space, and the desired finish. Aurotoshi offers economy, premium, and luxe configurations to accommodate different operational and design requirements.
For facilities considering other pedestrian access-control options, Tripod Turnstiles provide an alternative for controlled entry, while Swing Barriers can suit entrances that require wider or more accessible passage arrangements.
Aurotoshi combines in-house manufacturing with proprietary gate-control technology to deliver flap barrier systems tailored to different access-control needs. With three model options, integration support for multiple credential types, infrared sensing, and anti-tailgating functions, our flap barriers help facilities manage pedestrian entry efficiently while maintaining controlled access.
Models & Specifications
Choose Your Specification
Choose from our range of high performance variants tailored to your specific facility requirements.

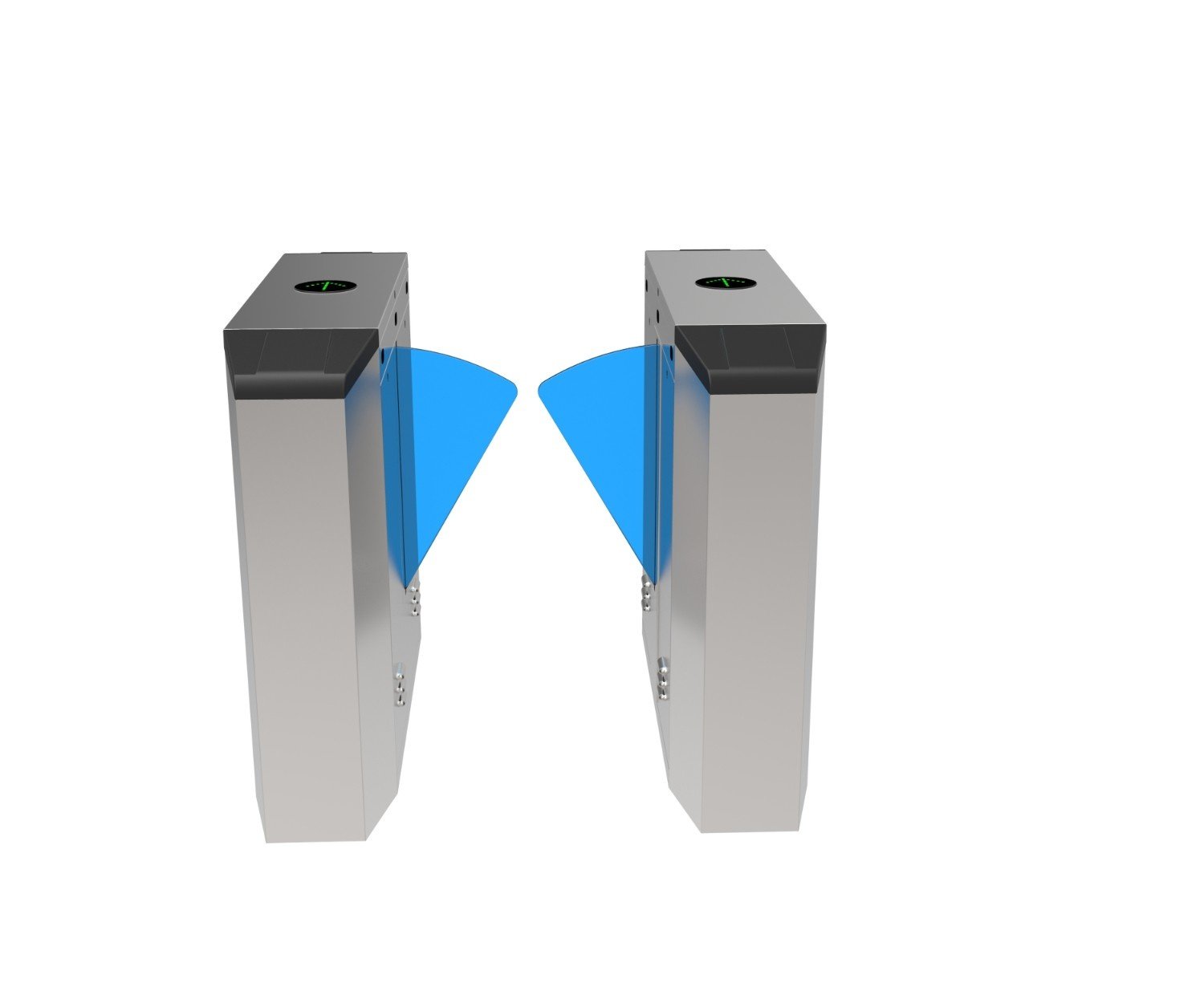

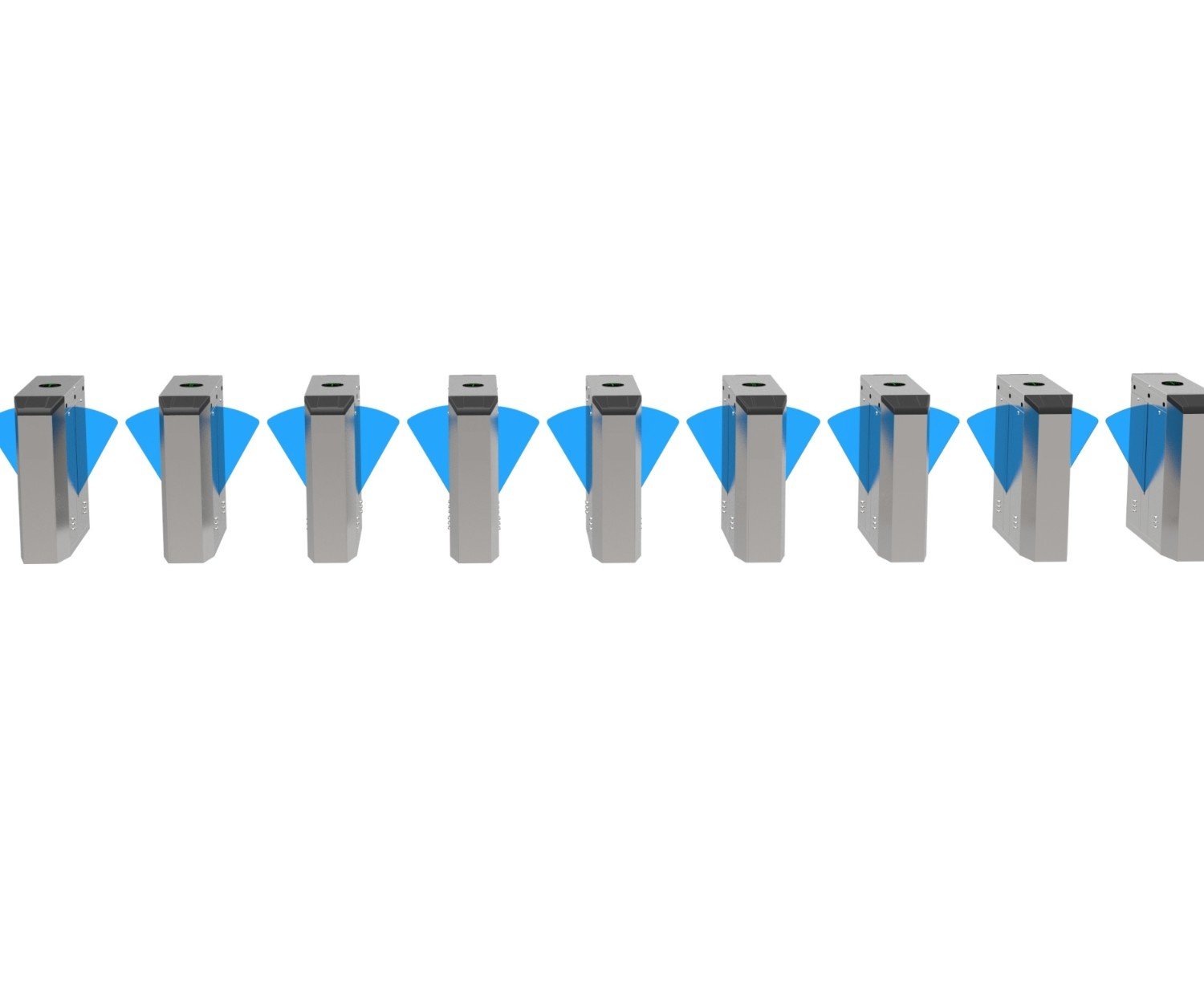

Cost-sensitive build. 6 mm acrylic wing, 3-pair IR, and the only tier with a 900 mm wide lane.

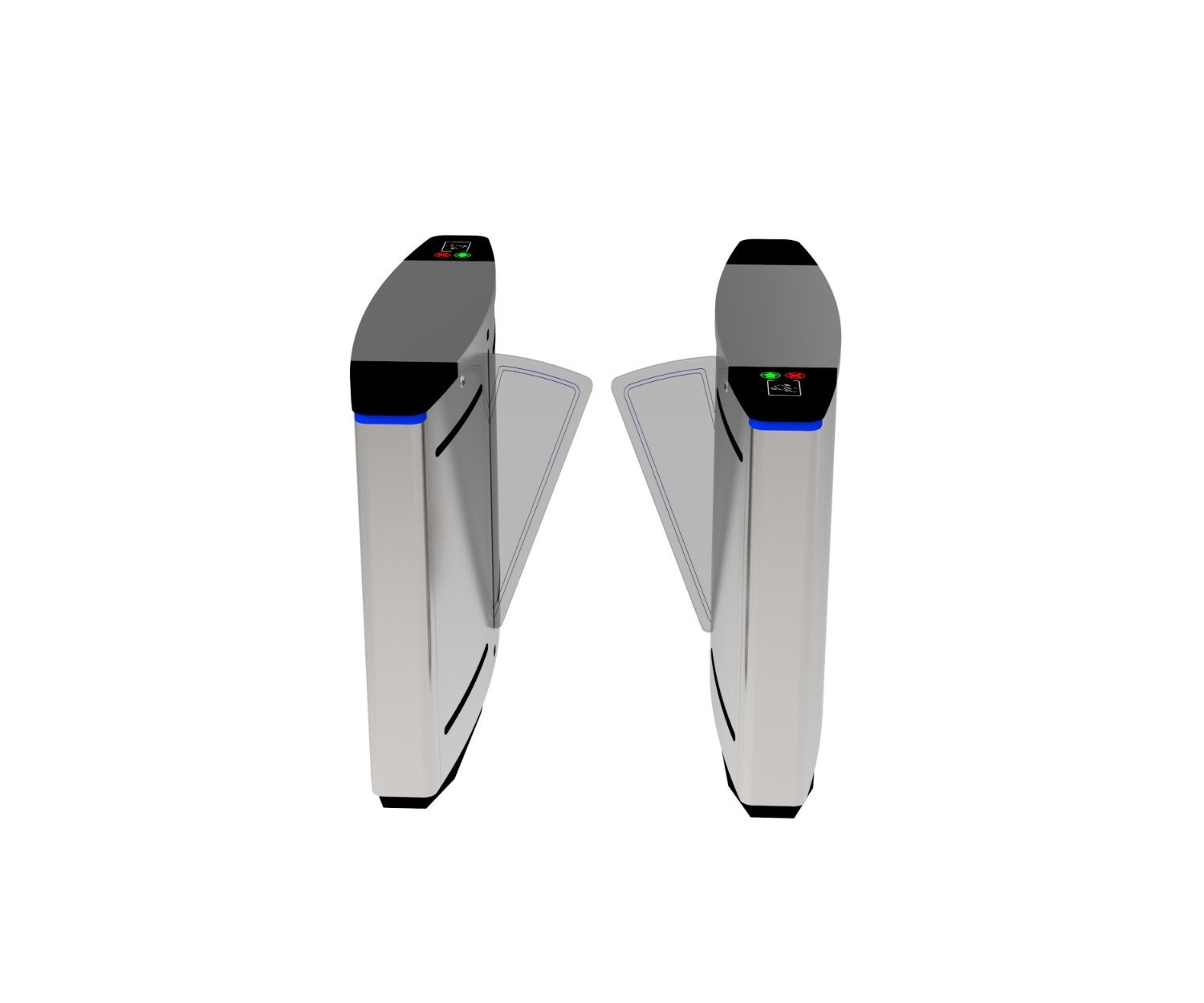

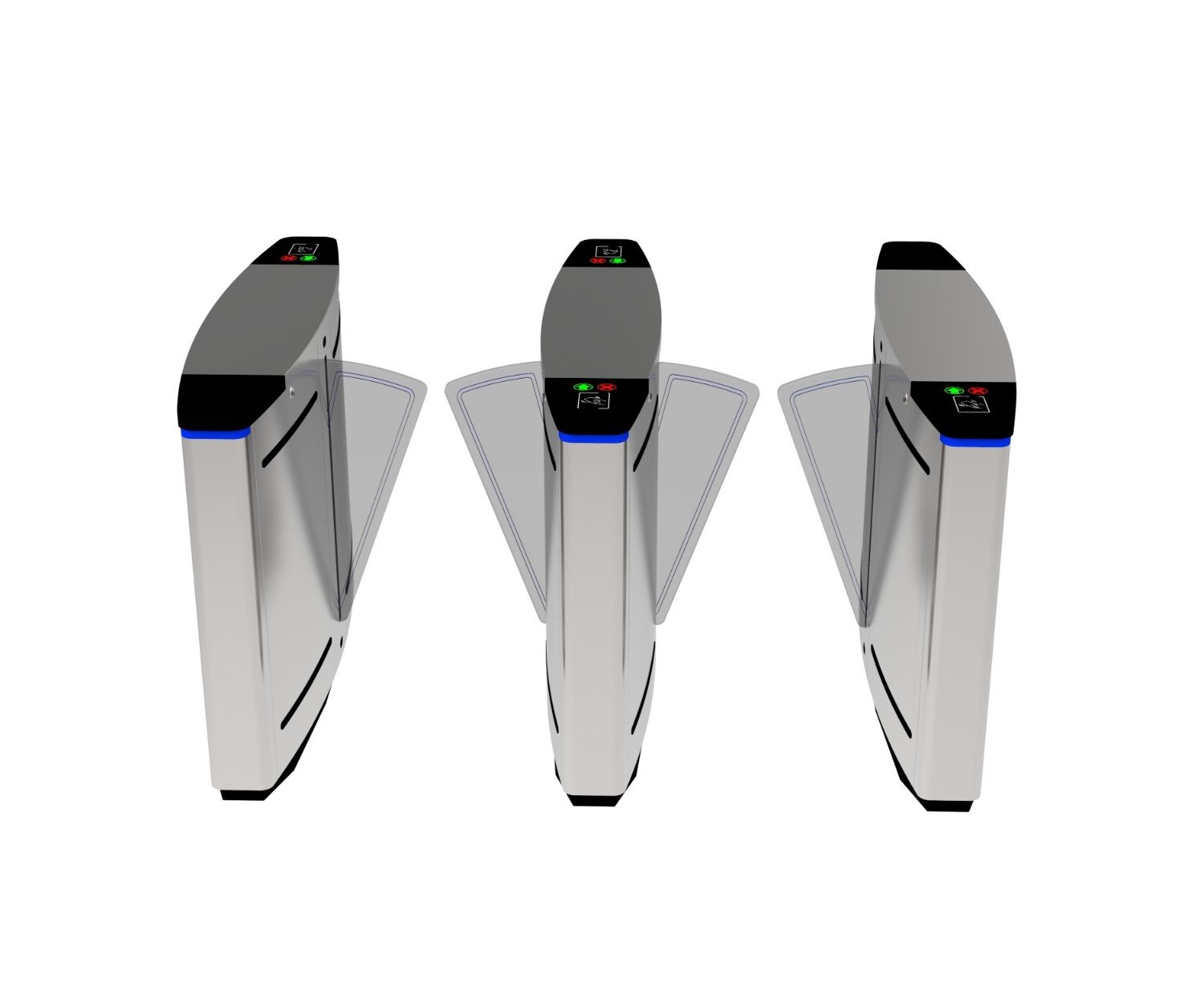

Heavier cabinet with an illuminated 10 mm wing and 5-pair IR. Single or dual cabinet.

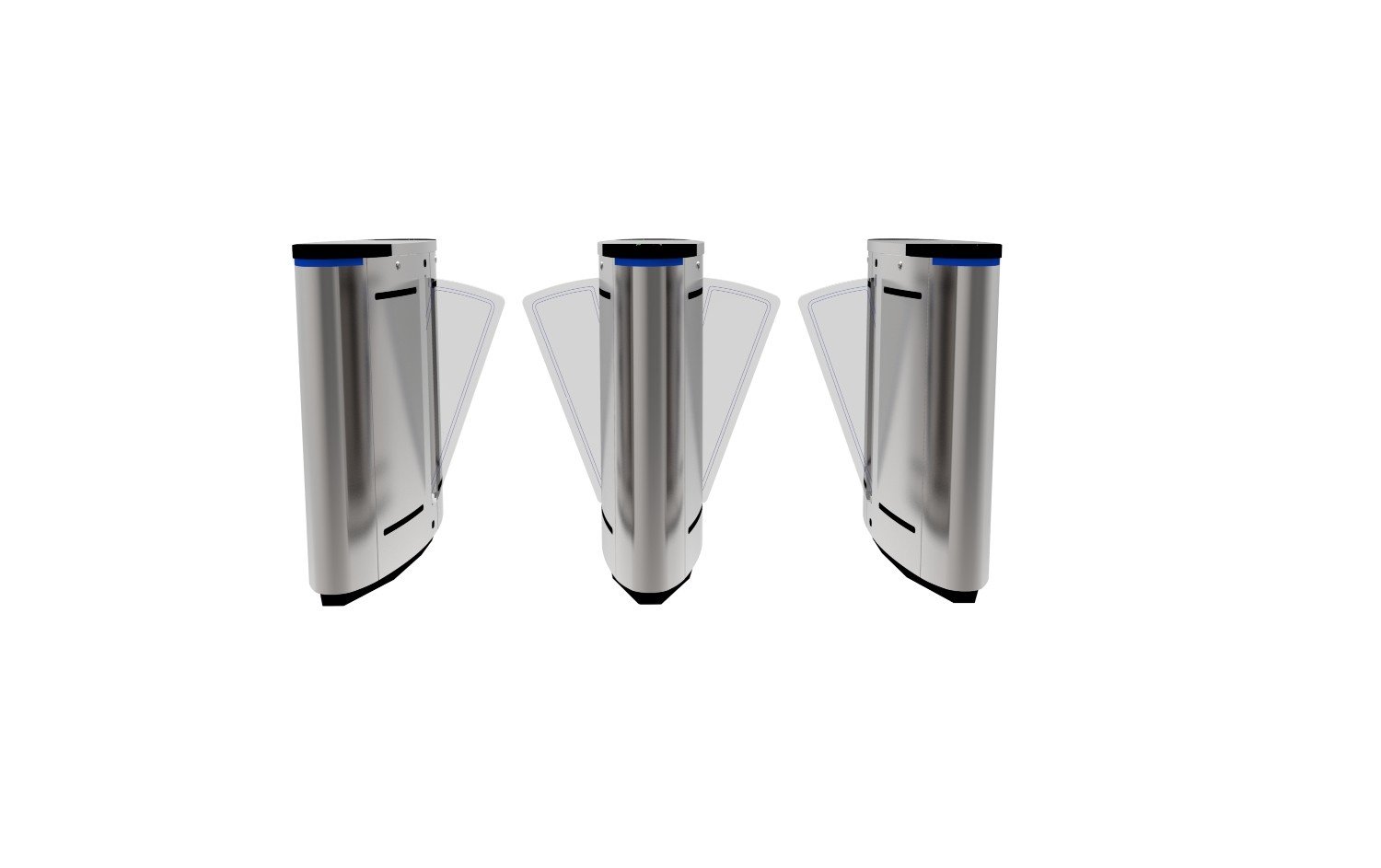

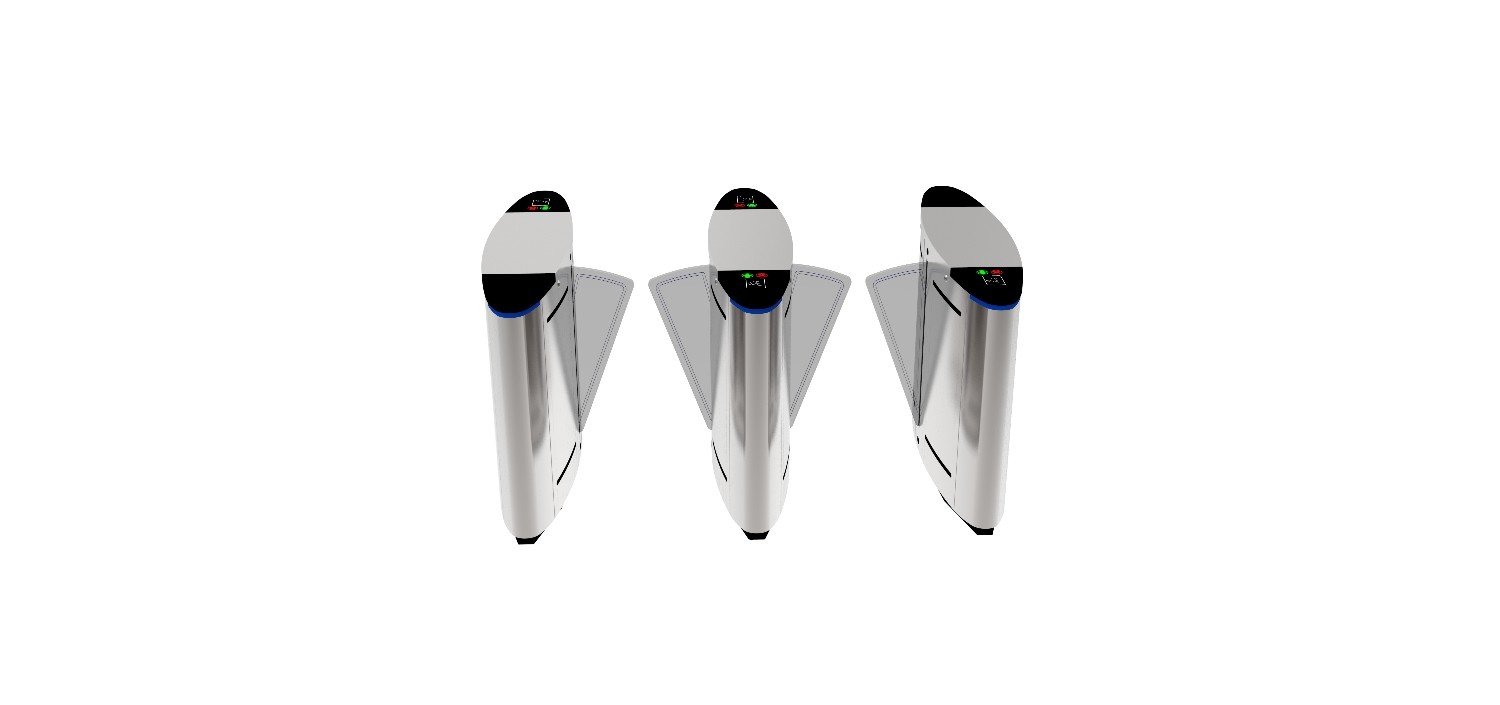

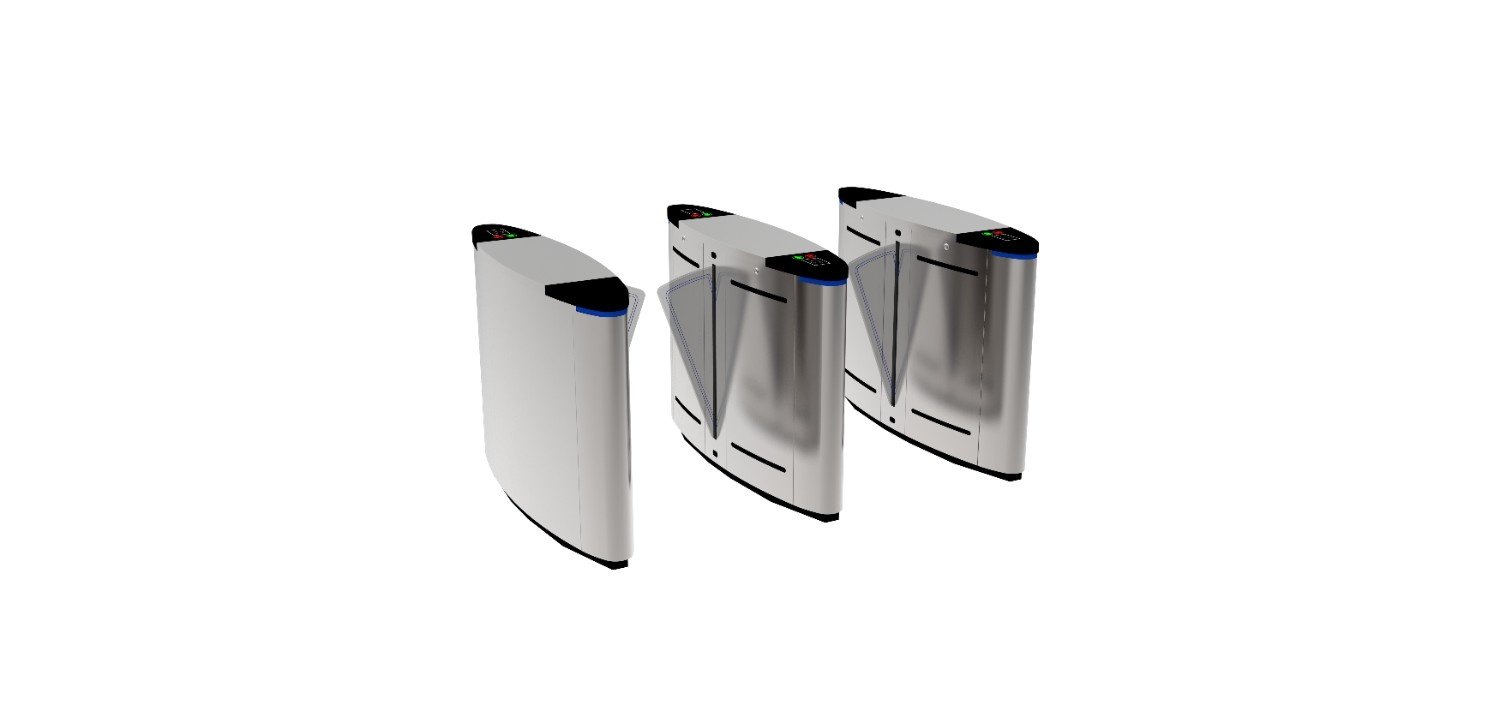

Presentation build. 12 mm wing, customisable to 18 mm, with 6-pair IR for the highest sensing density.
Cost-sensitive build. 6 mm acrylic wing, 3-pair IR, and the only tier with a 900 mm wide lane.
Heavier cabinet with an illuminated 10 mm wing and 5-pair IR. Single or dual cabinet.
Presentation build. 12 mm wing, customisable to 18 mm, with 6-pair IR for the highest sensing density.
Full Specification Comparison
| Specification | AURO-TA-FB242 | AURO-TA-FB203-S/D | AURO-TA-FB221 |
|---|---|---|---|
| Best for | Cost-sensitive high-throughput | Premium single/dual cabinet | Top-tier build and finish |
| Wing Thickness / Illumination | Acrylic 6 mm / No | Acrylic 10mm / Yes | Acrylic 12mm / Yes |
| IR Sensors | 3 pairs | 5 pairs | 6 pairs |
| Passage Way Indicator | Yes - at both ends | Yes - at both ends and swip panel | Yes - 360° illumination |
| IP Rating | IP 44 | IP 54 | IP 54 |
| Certification | CE | CE | CE |
Where These Doors Are Installed
Industries & Applications
Engineered for diverse industrial and commercial environments, our solutions are trusted across a wide range of industries and applications.
Projects & Case Studies
Installed & Running
See how our solutions are helping businesses improve operational efficiency, safety, and reliability across diverse industries.
Frequently Asked Questions
Buyer's Questions, Answered
Common queries from facility managers, procurement heads, and plant engineers.
Aurotoshi offers three models to suit different budgets and operational requirements. The Economy FB242 features a 1.2 mm cabinet, 6 mm acrylic wings, three pairs of IR sensors, and an optional 900 mm wide passage. The Premium FB203-S/D includes illuminated 10 mm acrylic wings, five IR sensor pairs, and IP54 protection in single or dual cabinet configurations. The Luxe FB221 features illuminated 12 mm wings, customisable up to 18 mm, and six IR sensor pairs. All three models support a throughput of 30 to 35 persons per minute per lane.
Flap barriers are designed for high-throughput entrances where retractable wings open quickly to maintain pedestrian flow. They are suitable for corporate offices, campuses, industrial facilities, schools, and technology parks. Swing barriers use a wider, more robust moving leaf and can be suitable for accessible passageways or entrances where wider clearance is required.
Aurotoshi flap barriers support a throughput of approximately 30 to 35 persons per minute per lane, with opening and closing times under 0.5 seconds. Actual throughput depends on user behaviour, credential verification time, and the access-control configuration.
Aurotoshi flap barrier turnstiles use infrared sensors and access-control logic to monitor pedestrian passage and help prevent tailgating and repeated access attempts. The Economy FB242 has three pairs of IR sensors, the Premium FB203-S/D has five pairs, and the Luxe FB221 has six pairs. Detection performance depends on the model and system configuration.
Aurotoshi flap barriers support integration options for RFID cards, QR codes, fingerprint readers, facial recognition, iris recognition, and Morpho systems through dry-contact interfaces. The appropriate configuration depends on the credential technology and the site's access-control requirements.
A flap barrier controls pedestrian access based on authorisation from an access-control system. An automatic fare collection (AFC) gate is designed for transit environments, where entry and exit may depend on ticket validation, fare rules, payment status, and integration with the transit back-office system. Flap barriers are commonly used for building access, while AFC gates are designed for ticketed transport systems.
Aurotoshi's standard flap barrier models typically have a lead time of 4 to 6 weeks after order confirmation. Custom models and bespoke modifications may require 8 to 10 weeks. A site survey is typically arranged within three working days of an enquiry, subject to site access and scheduling.
Yes. Aurotoshi offers Annual Maintenance Contracts (AMC) for installed flap barrier systems. Maintenance can cover drive and control-panel servicing, infrared sensor and access-control calibration, and breakdown response. As the original equipment manufacturer (OEM), Aurotoshi can also support spare-parts requirements.
Yes. Aurotoshi provides flap barrier solutions for EPC contractors, ELV consultants, system integrators, and procurement teams. Its in-house engineering and manufacturing capabilities support project-specific requirements, along with bill of quantities (BOQ) and technical submittal assistance. Aurotoshi has been manufacturing pedestrian access-control systems since 1992.
When selecting a flap barrier manufacturer in India, consider throughput, passage width, cabinet and wing materials, sensor configuration, access-control compatibility, safety functions, installation requirements, and after-sales support. Aurotoshi offers three flap barrier models, with different wing specifications, sensor arrangements, and enclosure protection ratings, helping buyers select a configuration suited to their facility.
After Installation
Service & AMC for
Flap Barriers
We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.
- Drive and panel mechanism servicing
- IR sensor alignment
- Access-control and reader calibration
- Fail-safe mode testing
- Service records provided"
- 24-hour response for AMC customers
- OEM-held spares, no third-party lead time
- Drive, controller and reader replacements
- Trained engineers across Delhi NCR, Mumbai, Pune, Bangalore, Hyderabad, Chennai, Ahmedabad, Surat, Rajkot, etc.
- CE verification records
- Fire alarm auto-open testing
- Anti-pass-back and anti-tailgating checks
- Service records provided for audit
