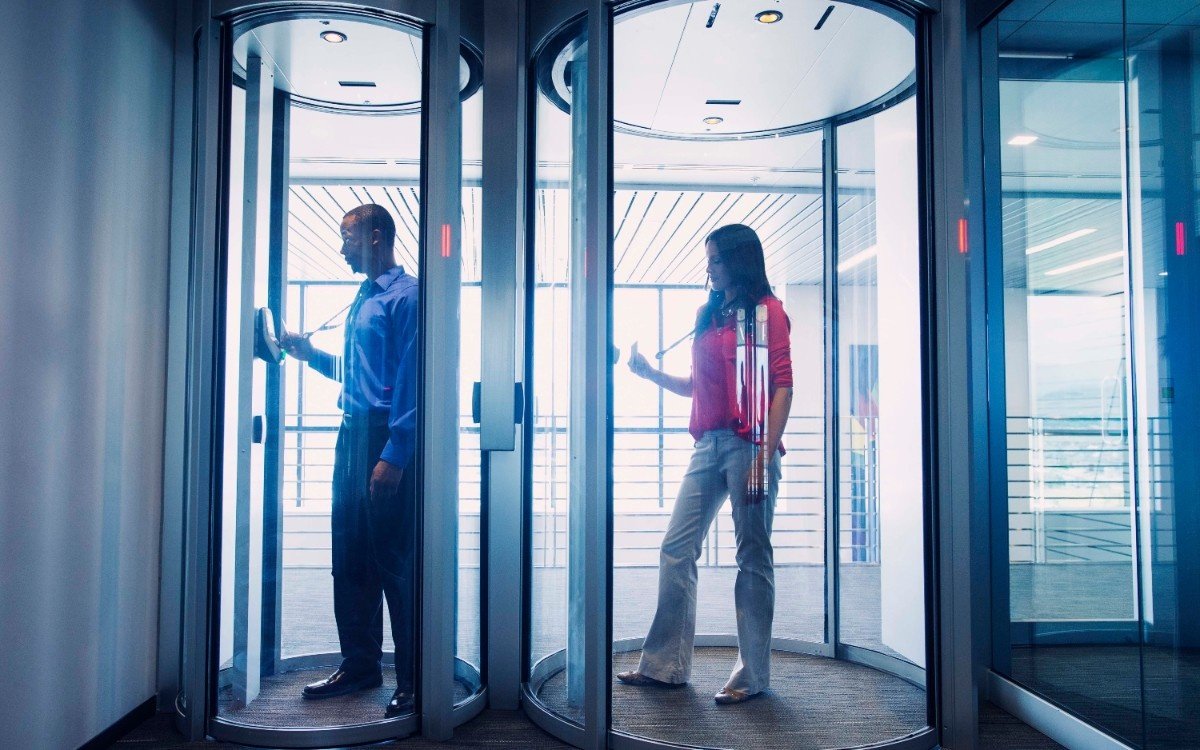

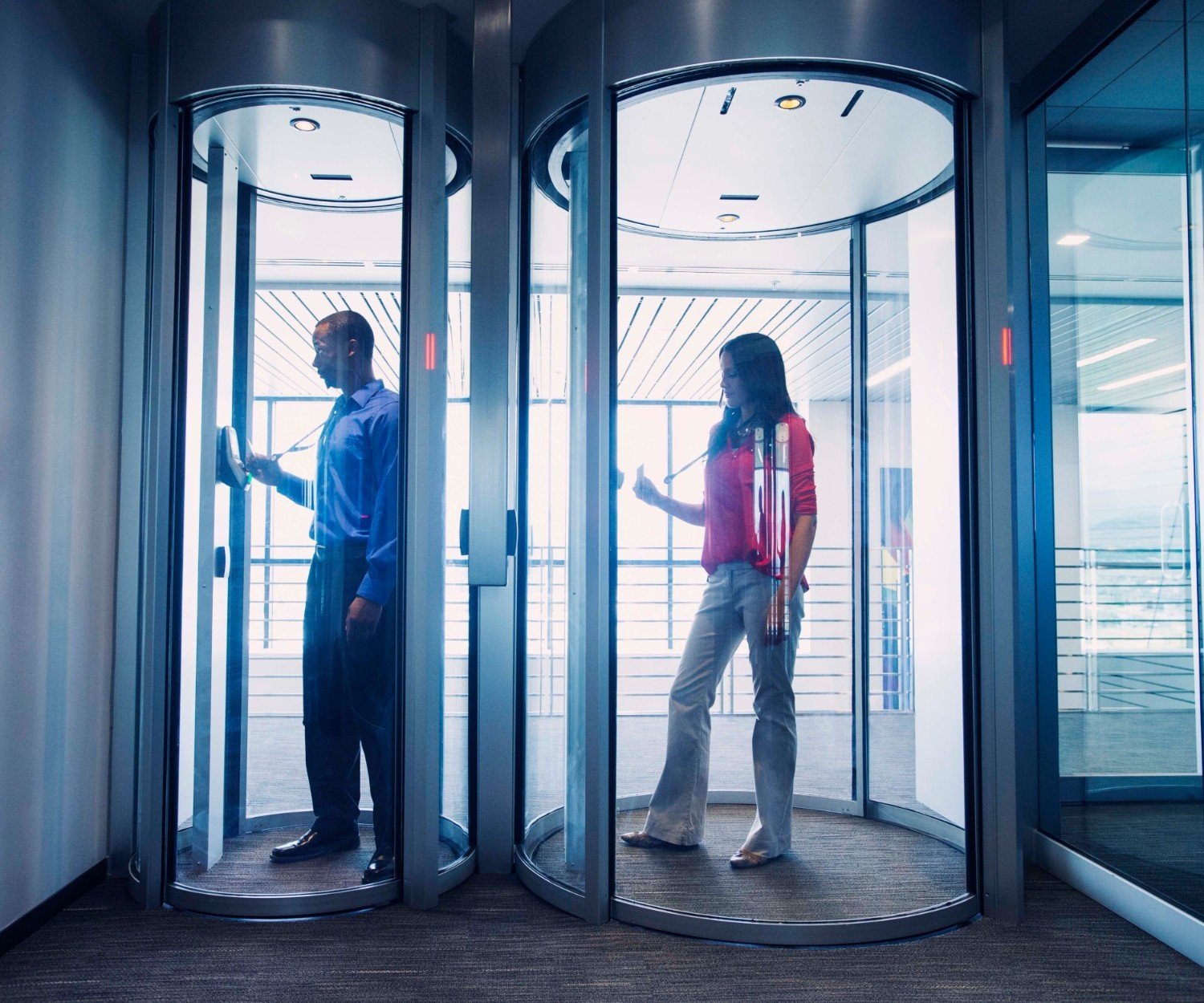

Full Height Mantrap

🔍 Click to zoom

✉Get A Quote

About Product

Controlled Access For High-security Environments

Critical facilities require more than controlled access, they require verified access. Unauthorized entry through tailgating, piggybacking, or forced access can compromise security, making conventional doors and access control systems insufficient for environments where every entry must be authenticated and monitored.

Aurotoshi's full height mantrap provides a secure, automated entrance solution that combines intelligent sensors, access control devices, and security portals to ensure single-person authorization before access is granted. Engineered for high-security environments including data centres, government buildings, banks, and other sensitive facilities, the system delivers maximum protection, accurate access monitoring, and reliable operation while minimizing dependence on security personnel.

Features

Access Control Integration

Supports RFID, biometric, ANPR, and access control systems.

Anti-Tailgating

Restricts unauthorized or multiple-person entry.

Dual Door Interlocking

Allows only one door to open at a time.

Presence Detection

Monitors occupancy before granting access.

Emergency Override

Enables safe exit during emergencies or power failure.

Stainless Steel Construction

Designed for continuous use in secure environments.

Models & Specifications

Choose Your Specification

Choose from our range of high performance variants tailored to your specific facility requirements.

Auro-TA-MNT01

Frame Total Height 2400 mm

Outer Diameter 1020 mm

Headroom 2100 mm (tolerance +/-5%)

Passage Width 550 mm (+/-15%)

Frame Body Stainless steel, MS powder coated

Sliding Wing Glass or polycarbonate

Locking Mechanism BLDC motor with brake technology

Drive BLDC motorized

Power Consumption Less than 220 W

Intelligence Microprocessor based

Throughput 5 to 7 persons/minute approx

Configuration Fail-safe, fall-lock, emergency, block

Access Time-Out Adjustable 1 to 10 sec

Sensors Infrared beam, pressure mat, weight-sensing mat for dual-occupancy detection

Main Supply 230 VAC, 50 Hz

Operating Voltage 24V DC

MCBF 10 million cycles

Duty Cycle 100%

Weight 580 kg

IP Rating IP54

Audible Indication Buzzer alert on unauthorised use

Operating Temperature -10 to +50 C

Optional Electronic counter, ceiling light inside passage

Auro-TA-MNT01

Frame Total Height 2400 mm

Outer Diameter 1020 mm

Headroom 2100 mm (tolerance +/-5%)

Passage Width 550 mm (+/-15%)

Frame Body Stainless steel, MS powder coated

Sliding Wing Glass or polycarbonate

Locking Mechanism BLDC motor with brake technology

Drive BLDC motorized

Power Consumption Less than 220 W

Intelligence Microprocessor based

Throughput 5 to 7 persons/minute approx

Configuration Fail-safe, fall-lock, emergency, block

Access Time-Out Adjustable 1 to 10 sec

Sensors Infrared beam, pressure mat, weight-sensing mat for dual-occupancy detection

Main Supply 230 VAC, 50 Hz

Operating Voltage 24V DC

MCBF 10 million cycles

Duty Cycle 100%

Weight 580 kg

IP Rating IP54

Audible Indication Buzzer alert on unauthorised use

Operating Temperature -10 to +50 C

Optional Electronic counter, ceiling light inside passage

Where These Doors Are Installed

Industries & Applications

Engineered for diverse industrial and commercial environments, our solutions are trusted across a wide range of industries and applications.

Data Centres

Projects & Case Studies

Installed & Running

See how our solutions are helping businesses improve operational efficiency, safety, and reliability across diverse industries.

No projects or case studies added yet. Please add them from the back panel.

Frequently Asked Questions

Buyer's Questions, Answered

Common queries from facility managers, procurement heads, and plant engineers.

A full height mantrap is a cylindrical security portal that allows only one authorised person to pass at a time. Two automatic sliding doors and a central platform, combined with occupancy sensors, stop tailgating and piggybacking. It is used at banks, government buildings and data centres where entry must be strictly controlled.

Integrated infrared, pressure-mat and weight sensors detect how many people are inside the portal. If more than one person is present, the second door stays locked and a buzzer alerts security. Only when a single occupant is confirmed does the inner door open.

No. The mantrap works unmanned. It integrates with access control, time-and-attendance and CCTV, so entry is authorised by card or credential and the portal enforces single-person passage automatically.

In a power failure or fire alarm, the outer run-secure door opens for safe exit while the inner secure door stays locked. Fail-safe, fall-lock, emergency and block configurations are available to match the site protocol.

The portal handles 5 to 7 persons per minute, with an adjustable access time-out of 1 to 10 seconds per person. It is rated for 100% duty cycle and 10 million MCBF cycles for high-traffic entrances.

Total height is 2400 mm with a 1020 mm outer diameter and a 550 mm passage width. The frame is stainless steel with MS powder coating, and the sliding wings are glass or polycarbonate.

Lead time depends on quantity and site readiness. Contact us for a schedule after a site survey. The mantrap is manufactured at our facility in Ghaziabad.

Yes. Aurotoshi is an OEM and ODM manufacturer supplying EPC contractors, security integrators and consultants, with custom spec sheets and documentation available on request.

After Installation

Service & AMC for
Full Height Mantrap

We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.

Preventive Maintenance

Quarterly AMC

BLDC motor and brake servicing
Infrared, pressure-mat and weight-sensor calibration
Sliding-door and safety-strip check
Access-time-out and buzzer test
Integration and CCTV link check

Breakdown Support

24-Hour Response

24-hour response for AMC customers
In-house spare parts, no import lead times Trained engineers across Delhi NCR, Mumbai, Pune
Priority response for high-security sites

Compliance & Records

Compliance Records

Service records for security audits
Sensor and occupancy-detection calibration logs
Annual control-system check
Integrated reporting via Aurionpro software
