About Product
Large Openings Sealed, Floor Space Freed
A sectional door lifts vertically and parks overhead on tracks, sealing a large opening without a swinging leaf or side stacking space. The floor and walls either side stay clear for use, while the insulated panel holds conditioned air in and keeps dust, wind and rain out.
Aurotoshi designs and manufactures overhead sectional doors in two configurations. The industrial door uses a 40 mm double-skin galvanised panel with a CFC-free PUF core - suitable for warehouses, cold stores and plant openings where thermal performance and forklift duty decide everything. The second variant, a full-vision option swaps solid opaque panels for glazed sections, bringing visual openness and a clean architectural front to showrooms, service bays and frontages.
Aurotoshi sectional doors are equipped with spring-break and cable-break arrestors, optical safety edges, infrared photocells, and a finger-safe panel joint, conforming to DIN EN 12604. Tested to 500,000 cycles and manufactured at our Ghaziabad facility, Aurotoshi customizes the door as per available site configuration and headroom.
Features
Spring & Cable Break Arrestors
Mechanical arrestors engage the track within centimetres of a torsion spring or lifting cable failure, preventing panel drop.
Finger-Safe Panel Joint
Panels close on a shaped hinge profile that leaves no gap at the joint, eliminating the principal crush point on a sectional door.
40 mm CFC-Free PUF Panel
European drive options available from 500 Kg-6000 kg, CE certified to EN 13241-1.
Optical Safety Edge & Photocell Screen
A wireless optical edge on the bottom profile reverses the door on contact, with infrared photocells monitoring the closing zone for personnel and vehicles.
Counter-Balanced Manual Release
Torsion springs counterbalance the panel weight, allowing single-person manual operation of doors up to 6 m on power loss, without lifting equipment.
500,000-Cycle Tested Assembly
Hinges, rollers, springs and panel joints are tested to 100,000 operations - an 8 to 10 year service life at 30 to 40 cycles per day.
Sectional doors are a preferred solution for industrial facilities, warehouses, logistics centres, manufacturing plants, and commercial buildings that require secure, insulated, and space-efficient access. Unlike conventional doors, Sectional Overhead Doors India open vertically and move along overhead tracks, maximising usable space around the entrance while ensuring smooth and reliable operation. Their robust construction, excellent sealing performance, and thermal insulation make them suitable for facilities where energy efficiency, operational safety, and long-term durability are priorities.
As a trusted Sectional Door Manufacturer India, Aurotoshi designs and manufactures overhead door systems engineered for demanding industrial environments. Built for continuous operation and Indian working conditions, our sectional doors combine reliable automation, durable components, and advanced safety features to support efficient daily operations.
Modern industrial facilities require entrance solutions that optimise available space without compromising security or operational efficiency. Sectional overhead doors open vertically, allowing unrestricted movement of forklifts, trucks, and material handling equipment while maximising internal and external working space. Their insulated panel construction also helps maintain indoor temperatures, reduce energy loss, and improve environmental control in warehouses, manufacturing units, cold storage facilities, and distribution centres.
Suitable for both new installations and retrofit projects, Aurotoshi sectional doors are available in multiple sizes and configurations to meet specific operational and architectural requirements.
Aurotoshi offers Insulated Sectional Doors India designed to deliver dependable performance in demanding industrial environments. High-quality insulated panels help reduce heat transfer, improve energy efficiency, minimise external noise, and provide better weather protection throughout the year. Combined with smooth automated operation and low maintenance requirements, these doors support safe and efficient movement of goods while protecting valuable inventory and maintaining controlled indoor conditions.
With over 30 years of engineering expertise, three manufacturing units, and OEM & ODM capabilities, Aurotoshi delivers sectional door solutions trusted by industries across India. Every door is engineered for long-term performance, operational reliability, and easy maintenance while complying with international quality standards. Backed by professional installation and responsive after-sales support, Aurotoshi helps businesses improve facility efficiency, enhance safety, and optimise industrial entrance operations.
Models & Specifications
Choose Your Specification
Choose from our range of high performance variants tailored to your specific facility requirements.

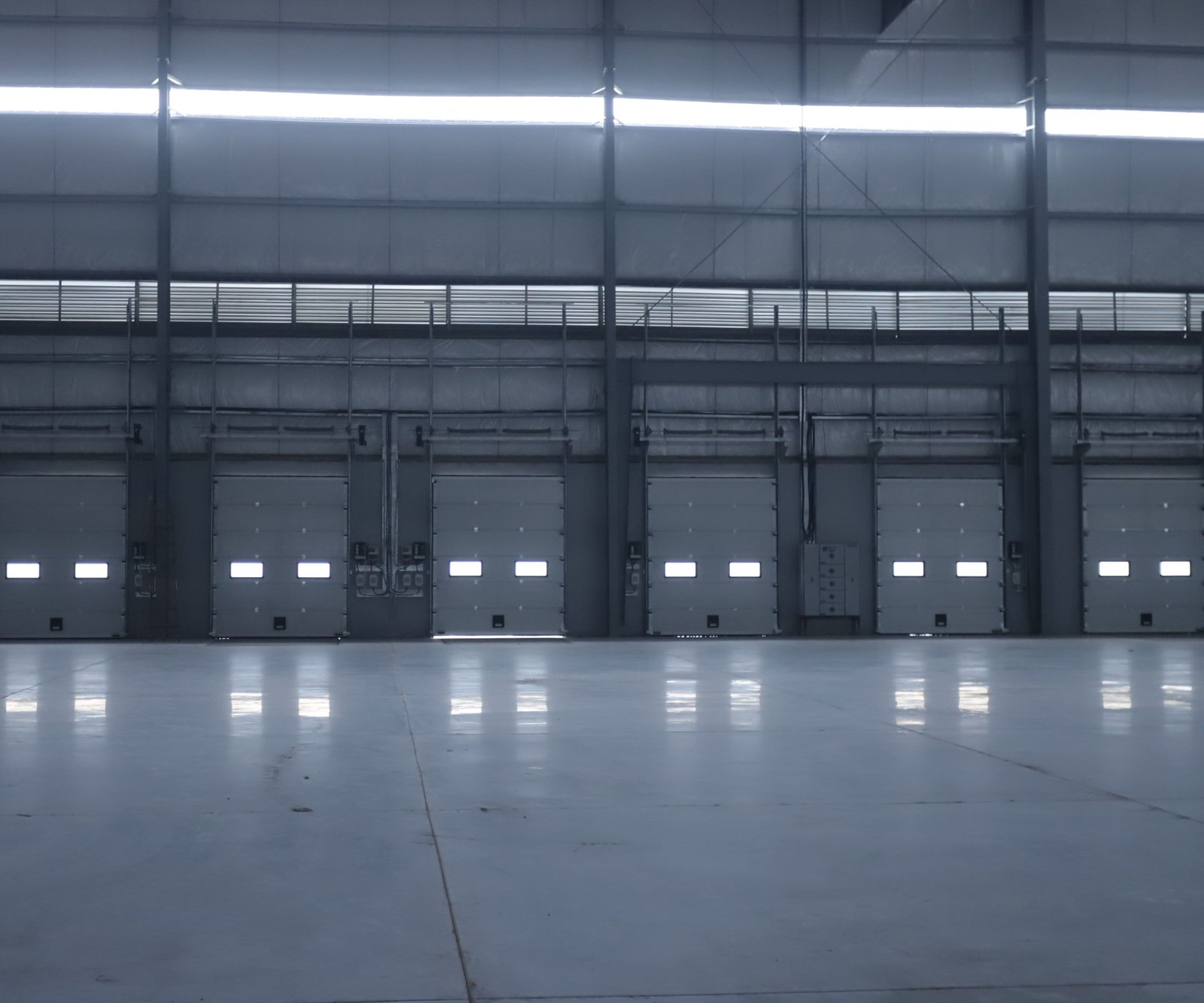

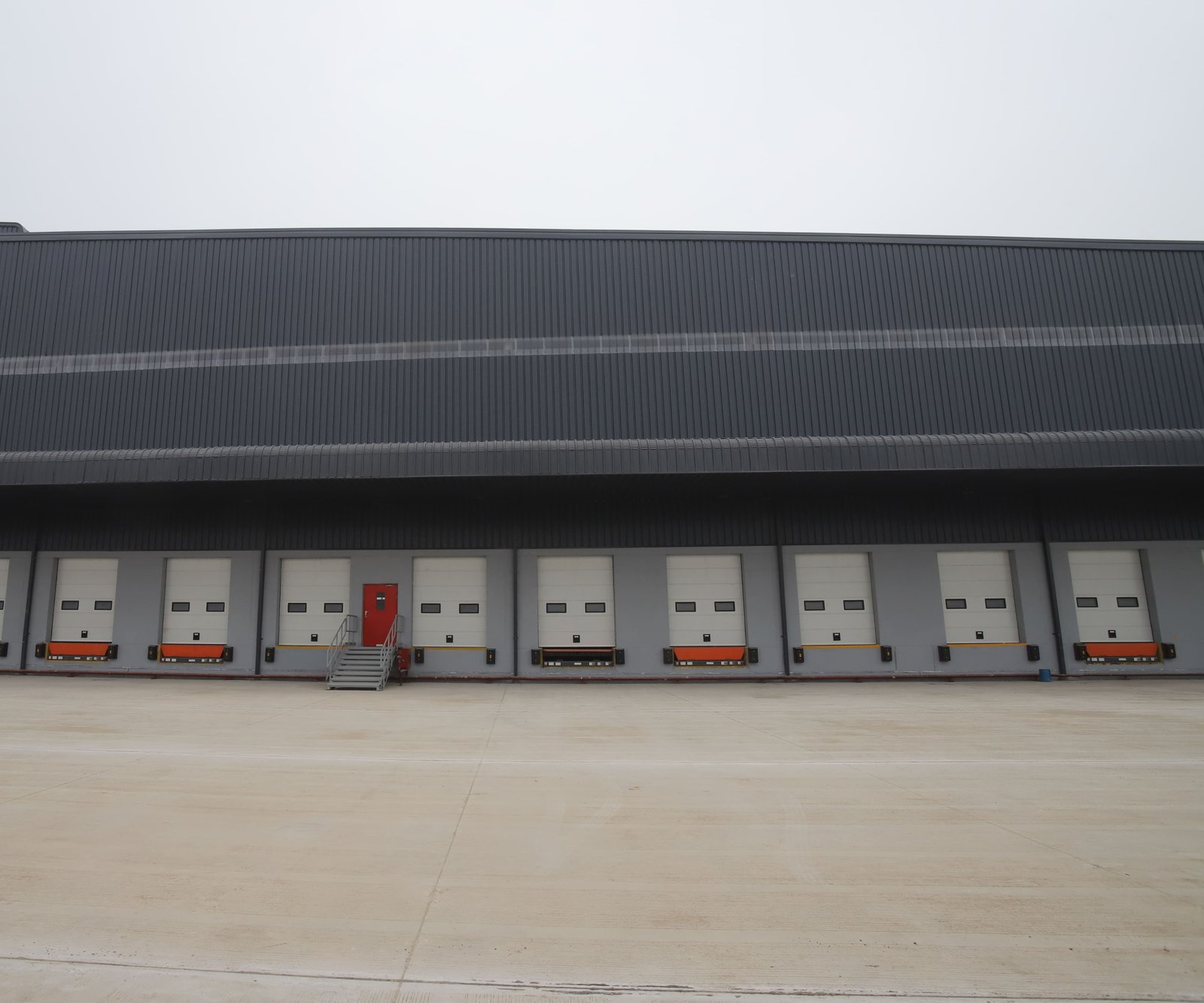

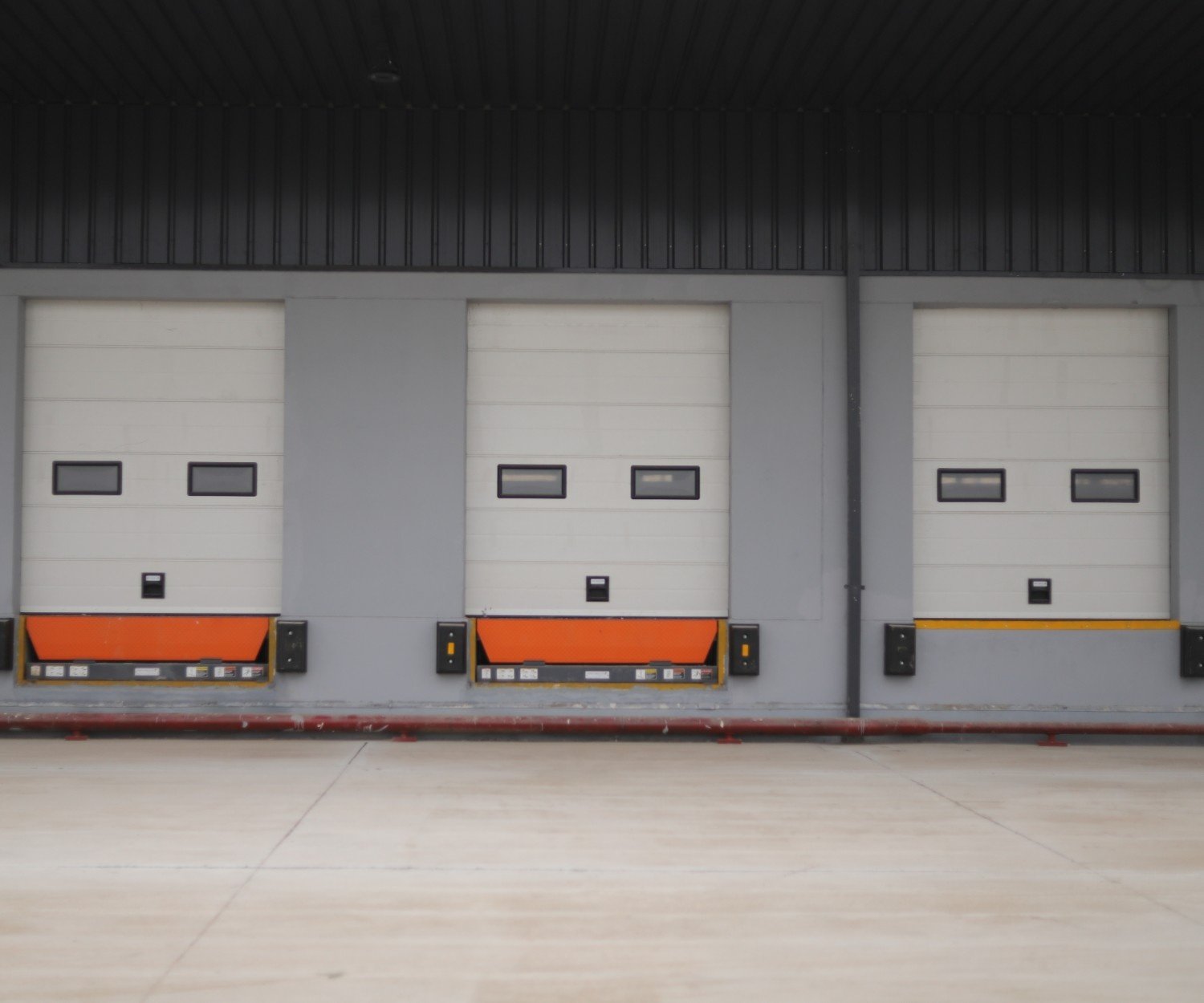

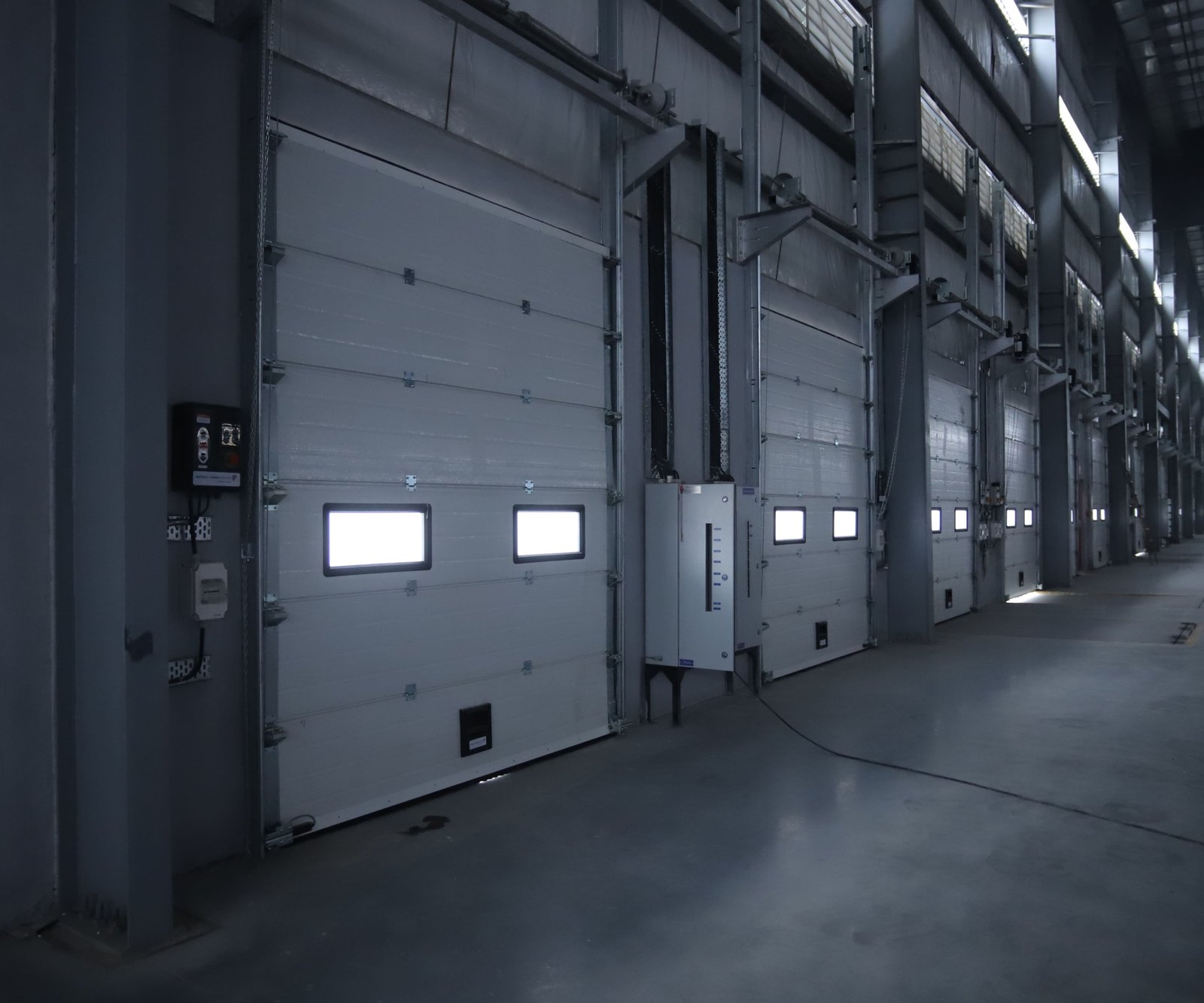

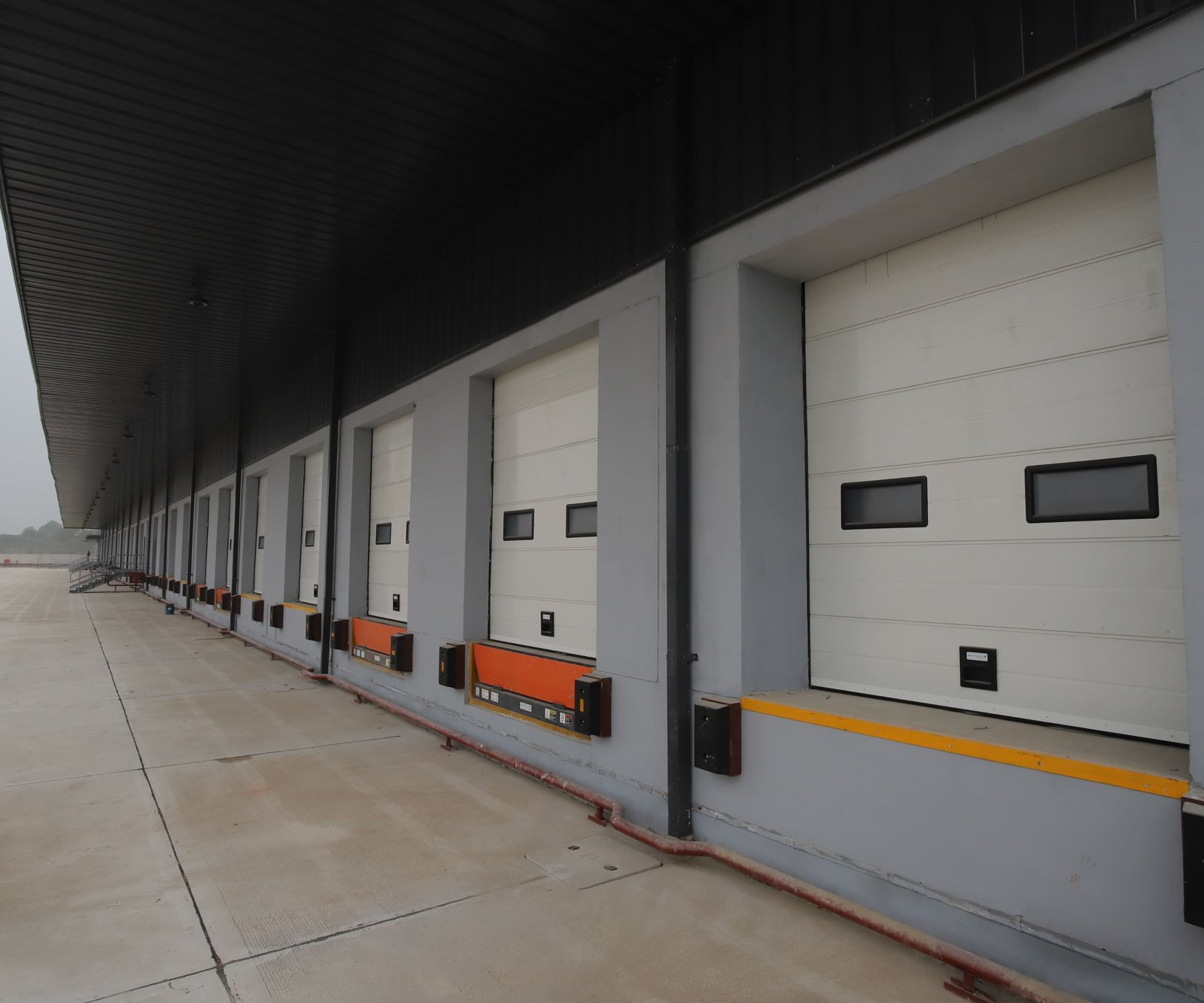

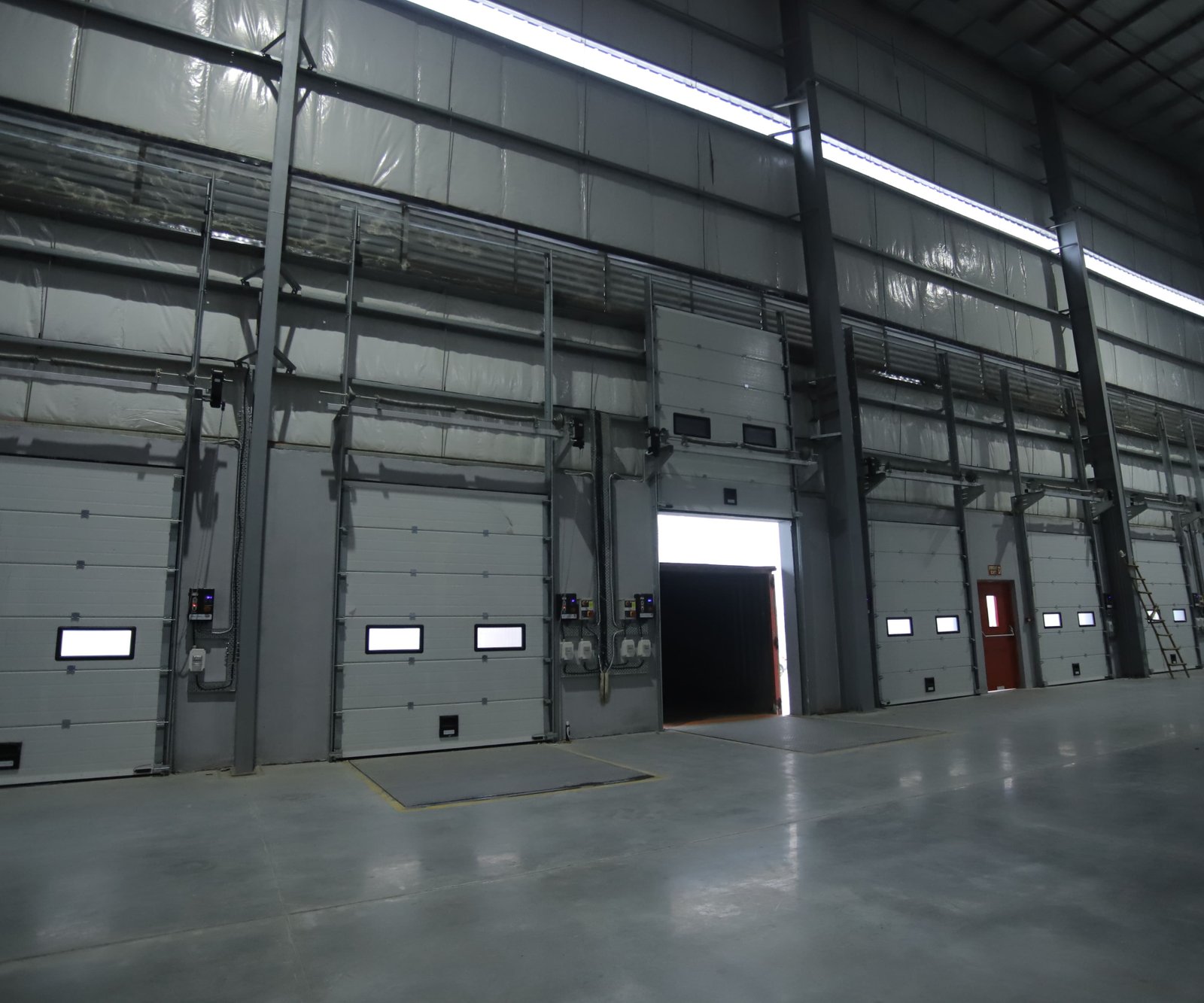

Insulated 40 mm PUF panel door at U 0.88 W/m²°C, lifting vertically to free floor and side space. Break arrestors, safety edge and photocells as standard.

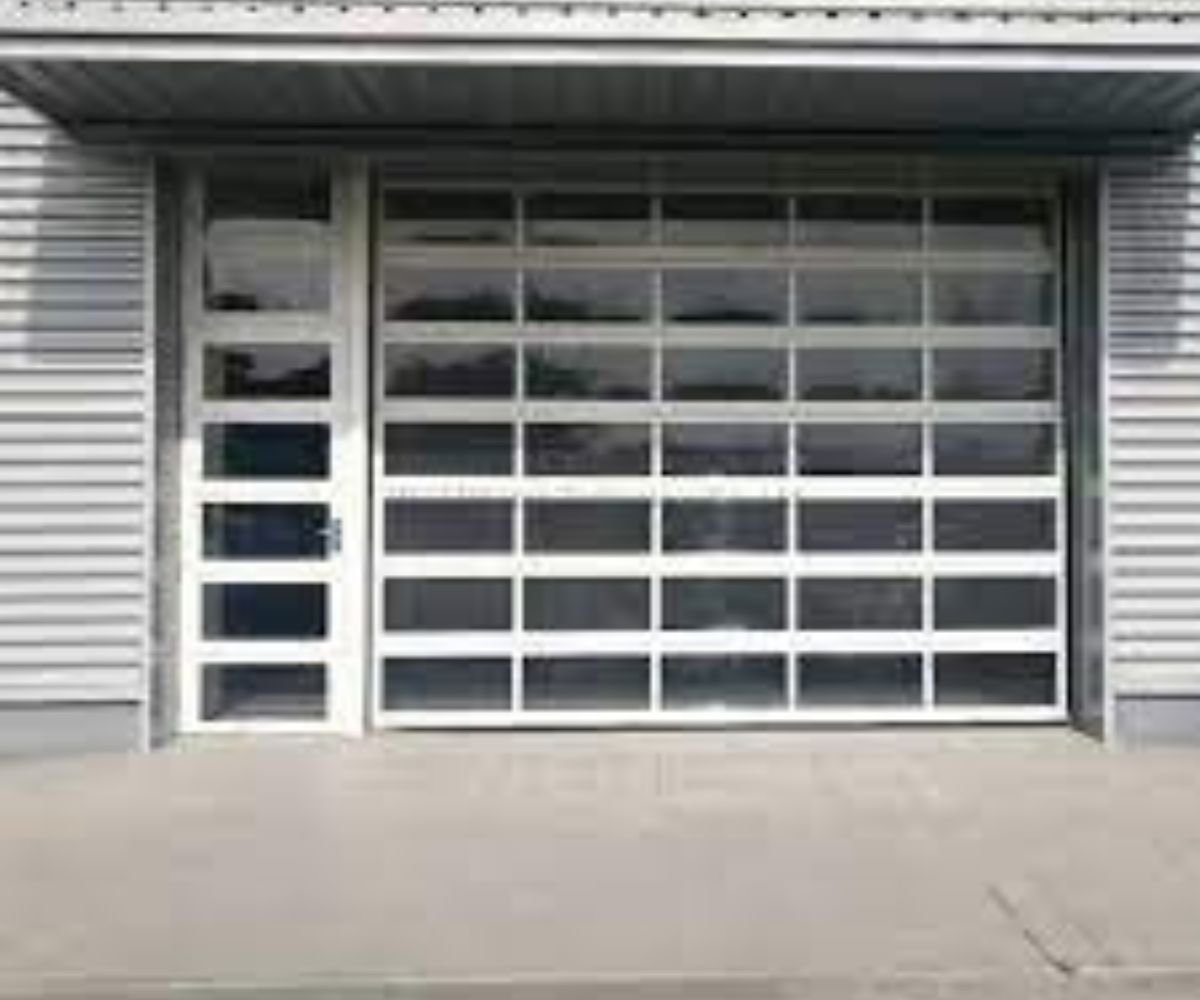

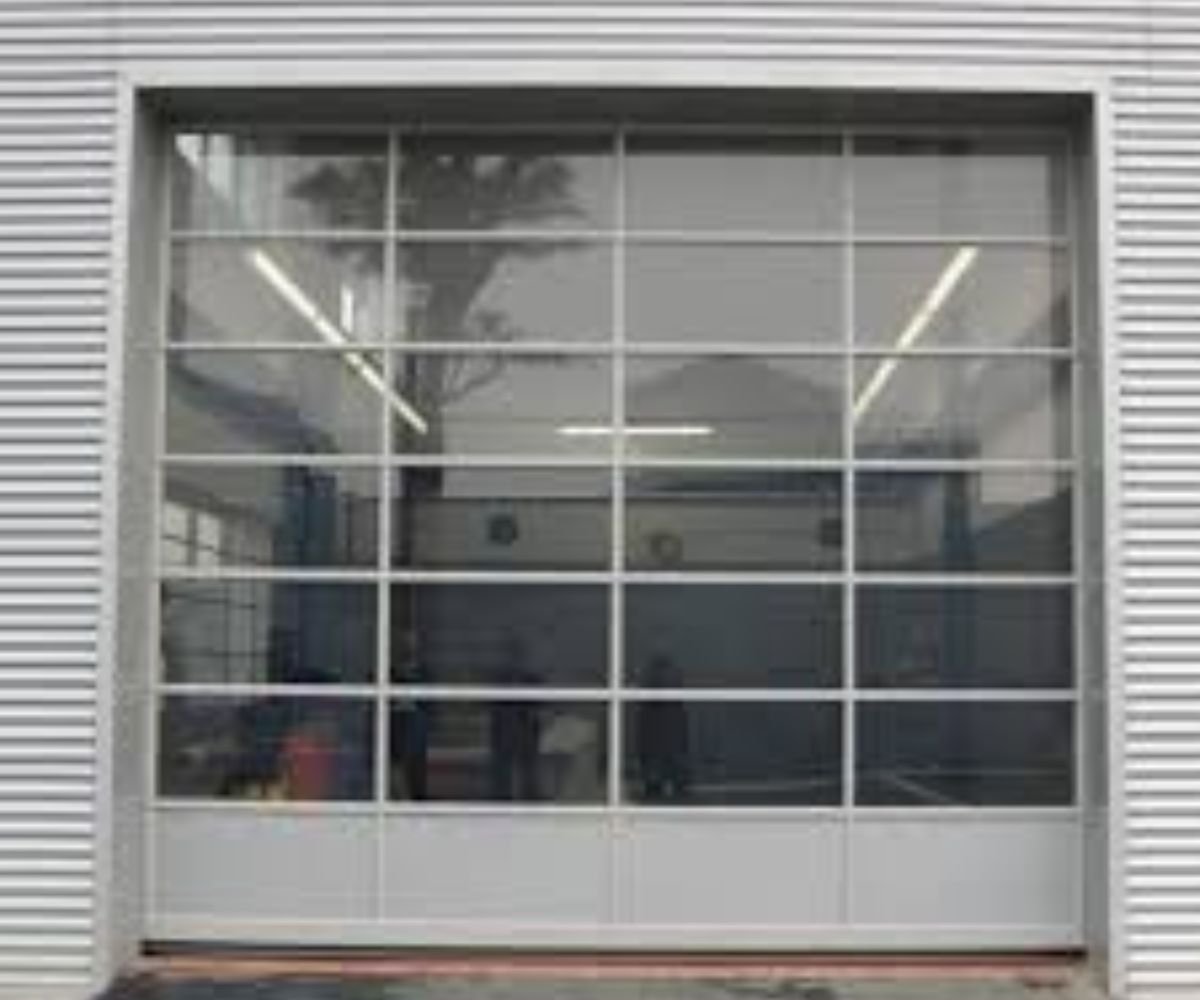

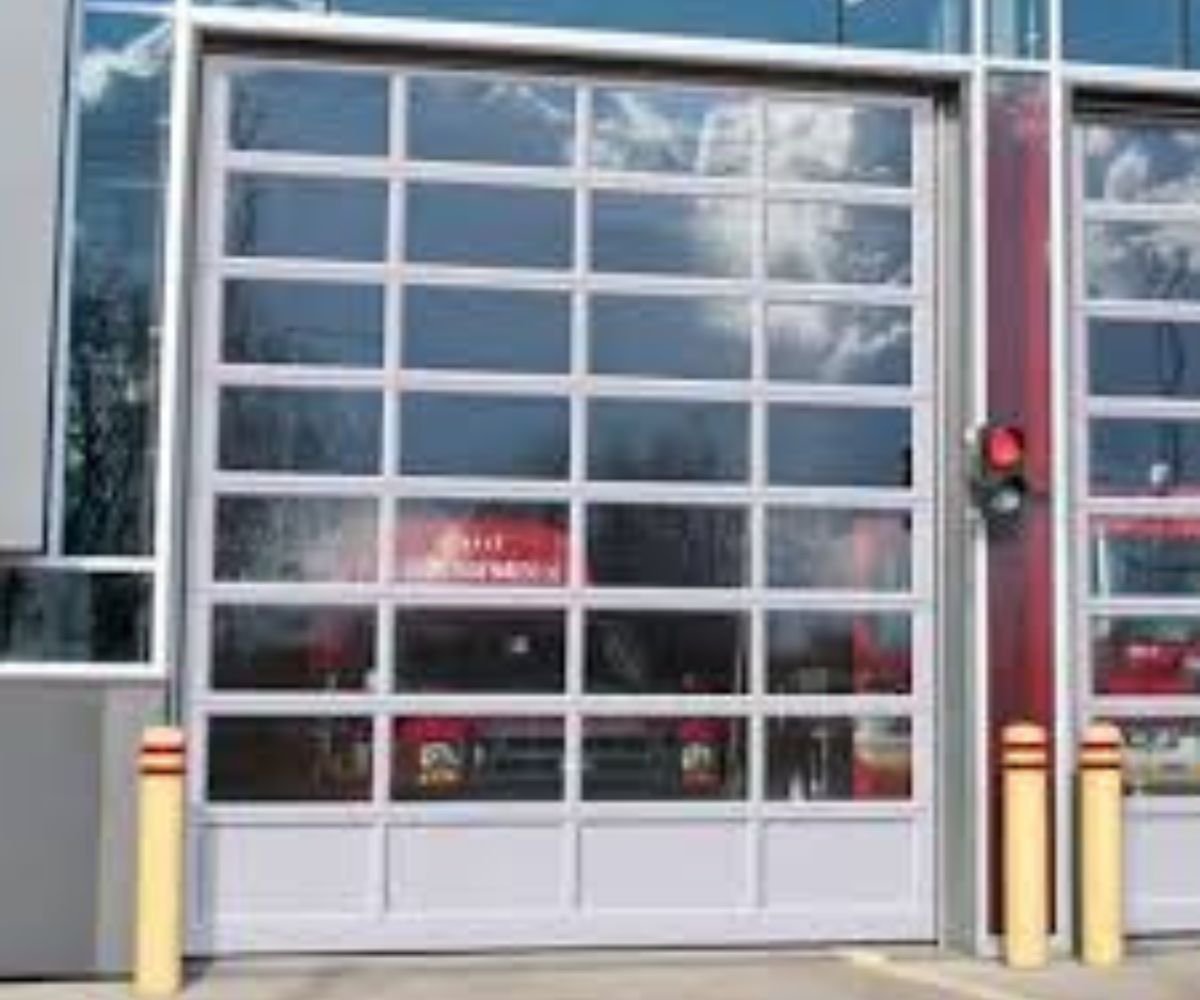

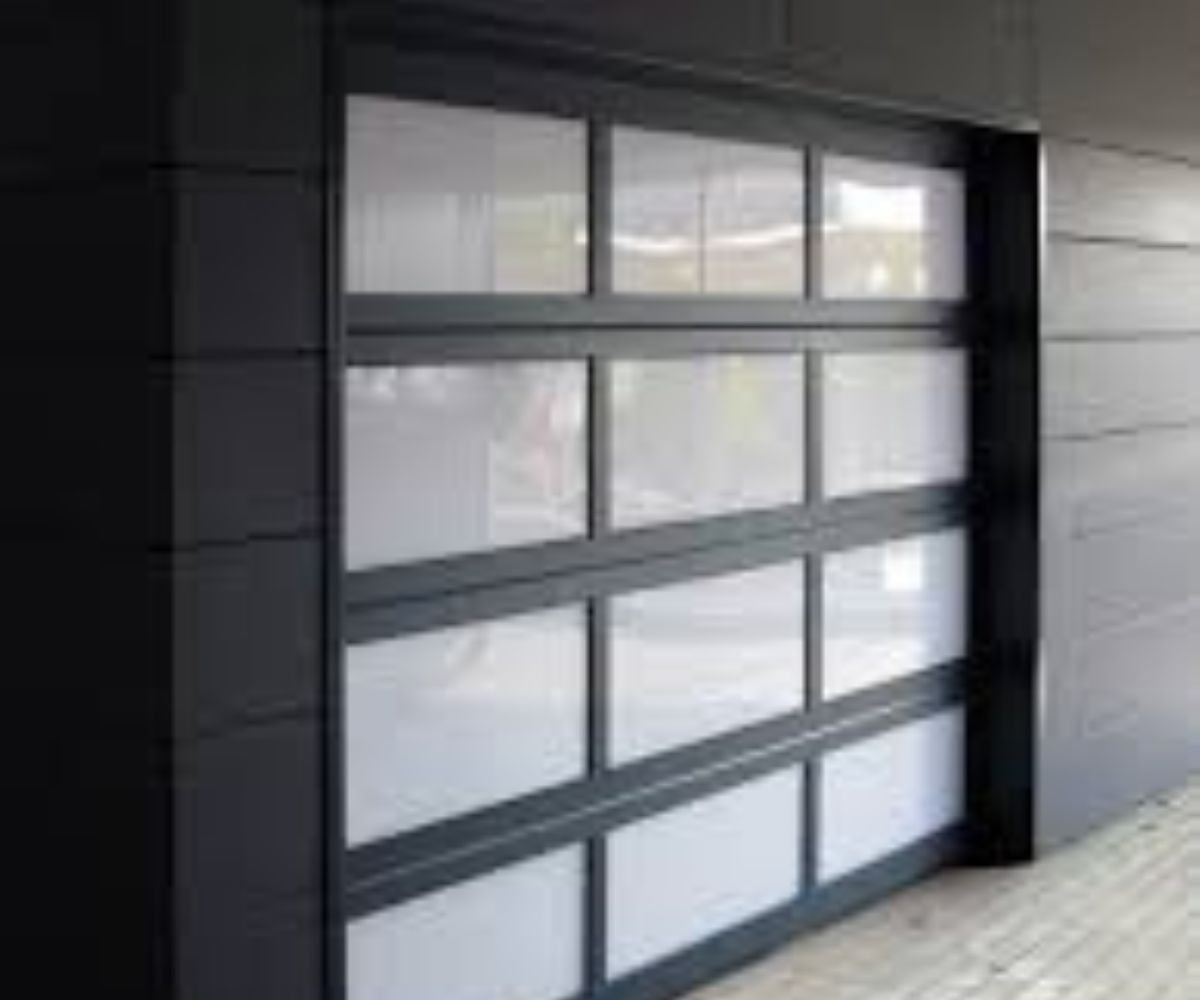

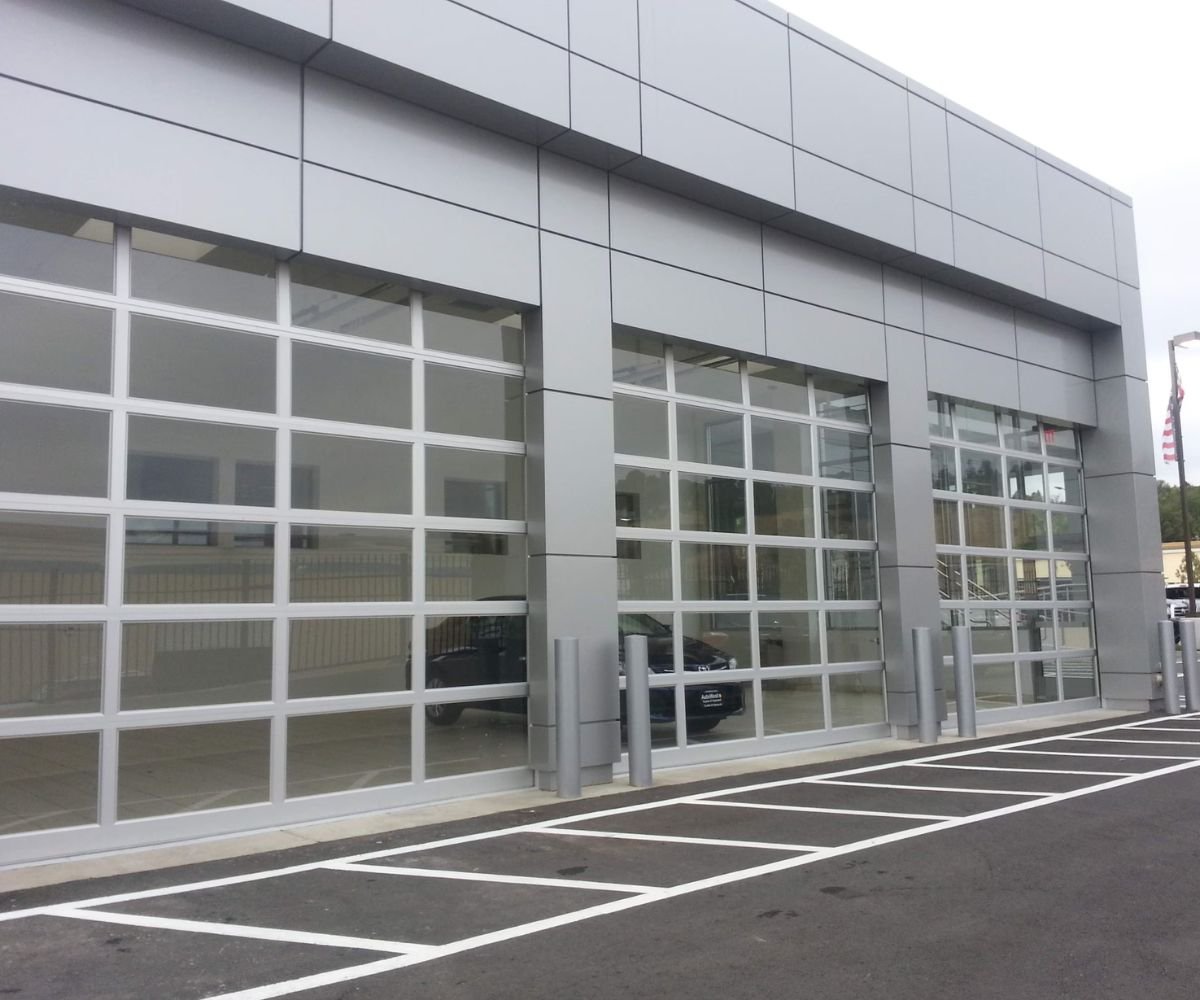

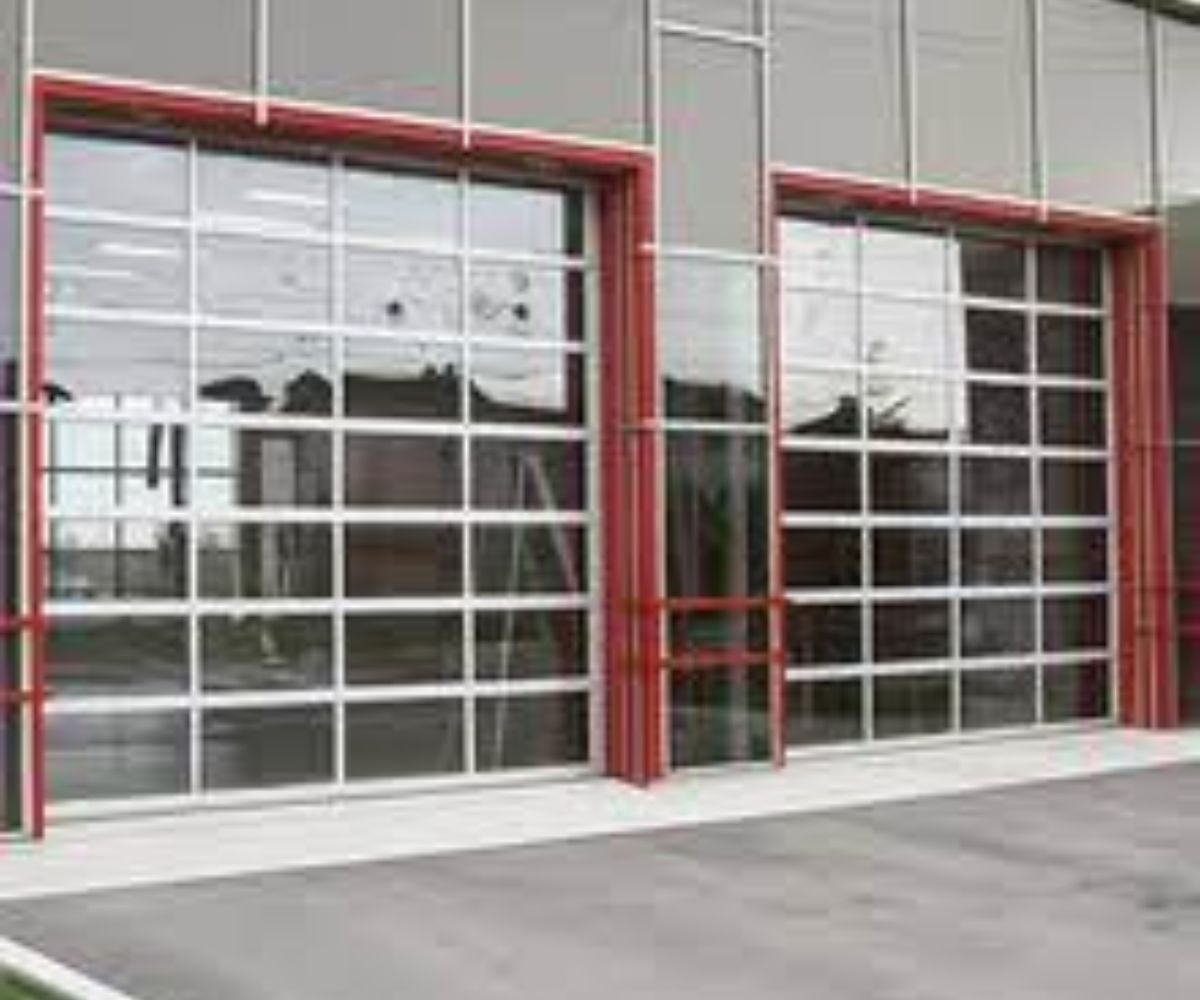

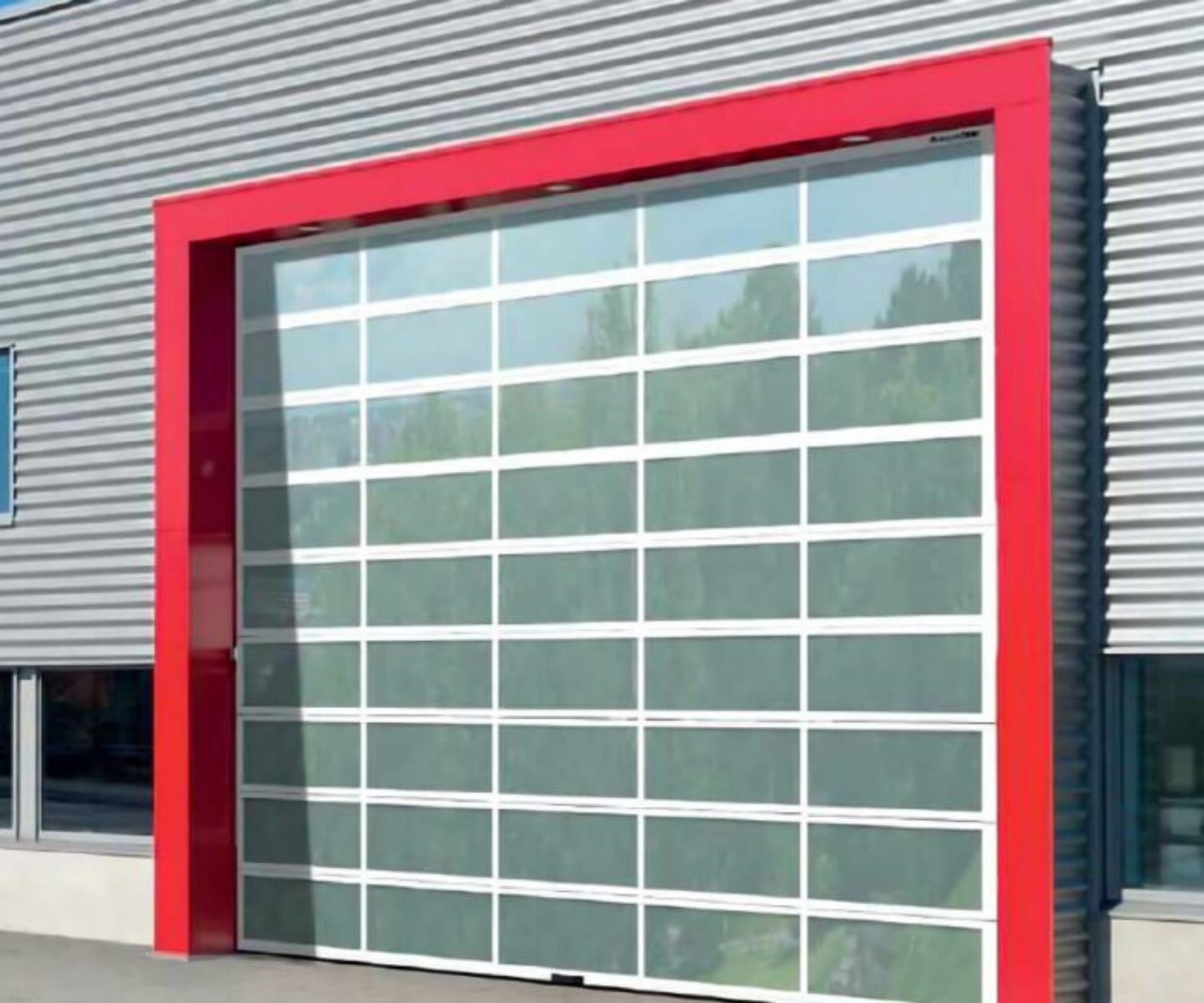

Full-vision glazed panel door for daylight and display, lifting vertically to free floor and side space. Same safety edge and photocell package as the industrial door.
Insulated 40 mm PUF panel door at U 0.88 W/m²°C, lifting vertically to free floor and side space. Break arrestors, safety edge and photocells as standard.
Full-vision glazed panel door for daylight and display, lifting vertically to free floor and side space. Same safety edge and photocell package as the industrial door.
Full Specification Comparison
| Specification | Industrial Application | Commercial & Retail Application |
|---|---|---|
| Best for | Warehouses, cold stores and plant openings where temperature control and continuous forklift traffic both matter | Showrooms, service bays and retail frontages where daylight and display visibility come first |
| Panel type | 40 mm insulated GI double-skin, CFC-free PUF core | Full-vision glazed panel |
| Thermal / Acoustic | U 0.88 W/m²°C, under 35 dB | U 0.20 W/m²°C |
| Visibility | Solid panel, optional vision windows | Full-height glazing across the leaf |
| Max size | Approx. full opening width + overlap | Approx. half the opening width |
| Safety package | Spring-break, cable-break, optical edge, IR photocells, finger-safe joint | Spring-break, cable-break, optical edge, IR photocells |
| Certification | CE certified, in conformity with EN 13241-1 | CE certified, in conformity with EN 13241-1 |
Where These Doors Are Installed
Industries & Applications
Engineered for diverse industrial and commercial environments, our solutions are trusted across a wide range of industries and applications.
Frequently Asked Questions
Buyer's Questions, Answered
Common queries from facility managers, procurement heads, and plant engineers.
Choose the industrial door where the opening separates conditioned or dusty space and takes continuous forklift traffic, there the 40 mm insulated panel is doing real thermal work. Choose the commercial full-vision door where the opening is a frontage or service bay and daylight and display visibility matter more than insulation.

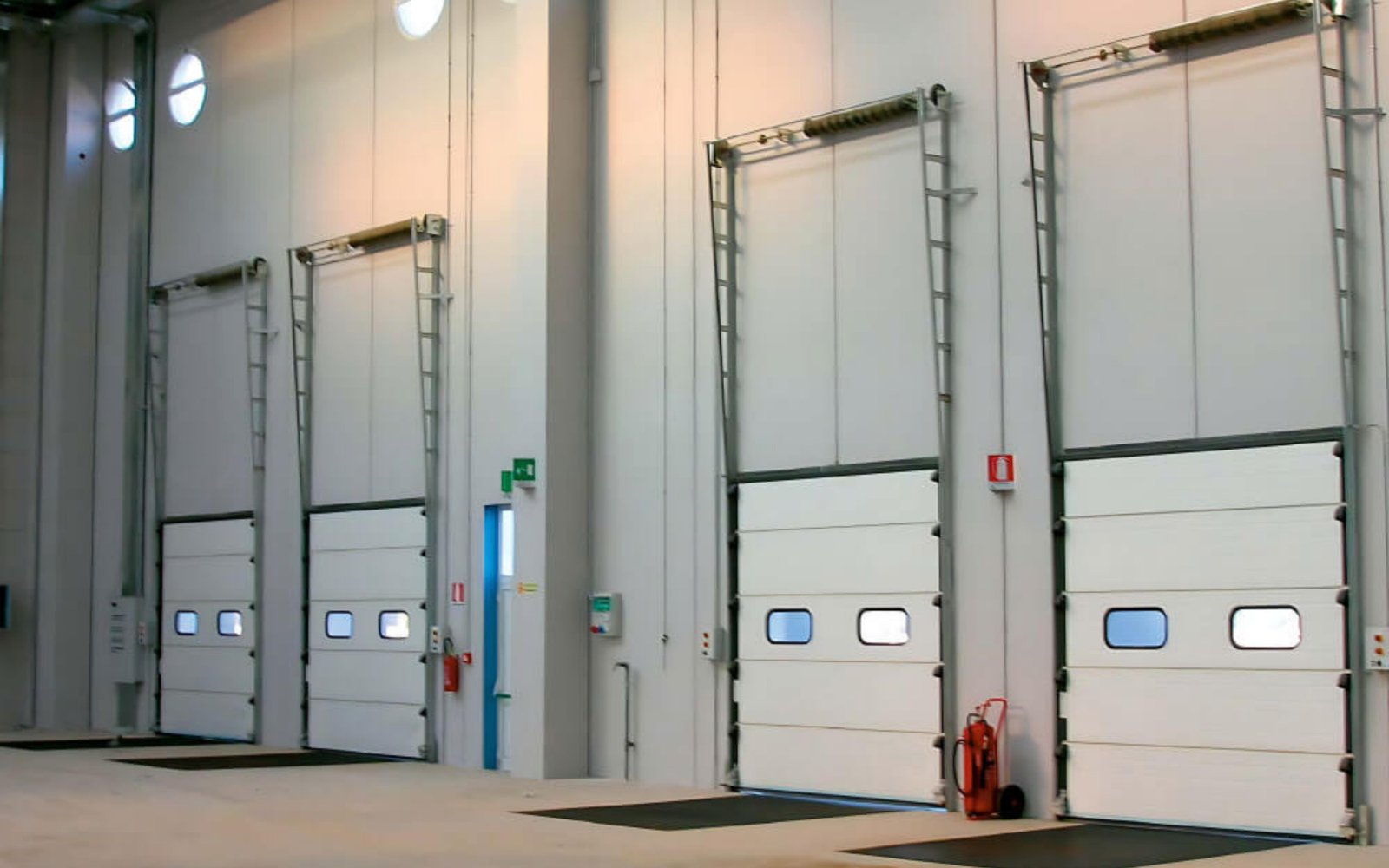

That determines the lift type, which is selected from your site survey. Normal Lift suits standard headroom above the lintel, High Lift needs additional clearance, and Vertical Lift travels straight up where the building has full headroom to the ceiling. Send opening width, height and clear headroom and we will confirm the lift type.
Mechanical spring-break and cable-break arrestors to DIN EN 12604 lock the panel into the track the moment tension is lost, so the door stops within centimetres instead of dropping the height of the opening. Both are fitted as standard, not sold as a paid upgrade.
The industrial panel is 40 mm double-skin galvanised steel with a CFC-free PUF core, giving U 0.88 W/m²°C (R 1.13 m²°C/W) and under 35 dB sound reduction, with EPDM seals on all four edges. Air permeability is Class 4 and water tightness Class 3 to EN 13241-1.
A chain link is provided for manual operation. Because the torsion springs counter-balance the panel weight, one person can raise even a 6 m door by hand - no lifting gear, and no waiting for a technician to clear the bay.
An optical wireless safety edge on the bottom profile reverses the door on contact, and infrared photocell beams monitor the closing zone so the door will not close on a person or vehicle. The panel joint is finger-safe by profile, which removes the most common crush point on a sectional door.
Quarterly preventive maintenance covers torsion spring and cable inspection, panel, hinge and roller checks, motor and control servicing, and safety-edge and photocell calibration. Aurotoshi offers a structured AMC with 24-hour breakdown response and in-house spare parts, so springs, cables and panels ship without import lead time.
Up to 6000 × 6000 mm. Standard sizes ship 4 to 6 weeks from order confirmation and custom sizes 6 to 8 weeks, manufactured at our Ghaziabad facility. Site survey is typically within 3 working days of enquiry.
After Installation
Service & AMC for
Sectional Doors
We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.
- Torsion spring and cable inspection
- Panel, hinge and roller check
- Motor and control board servicing
- Safety edge and photocell calibration
- Service records provided
- 24-hour response for AMC customers
- In-house spare parts, no import lead times
- Spring, cable and panel replacements
- Trained engineers across Delhi NCR, Mumbai, Pune
- EN 13241-1 verification records
- Spring and cable-break device testing
- Safety-edge calibration certificates
