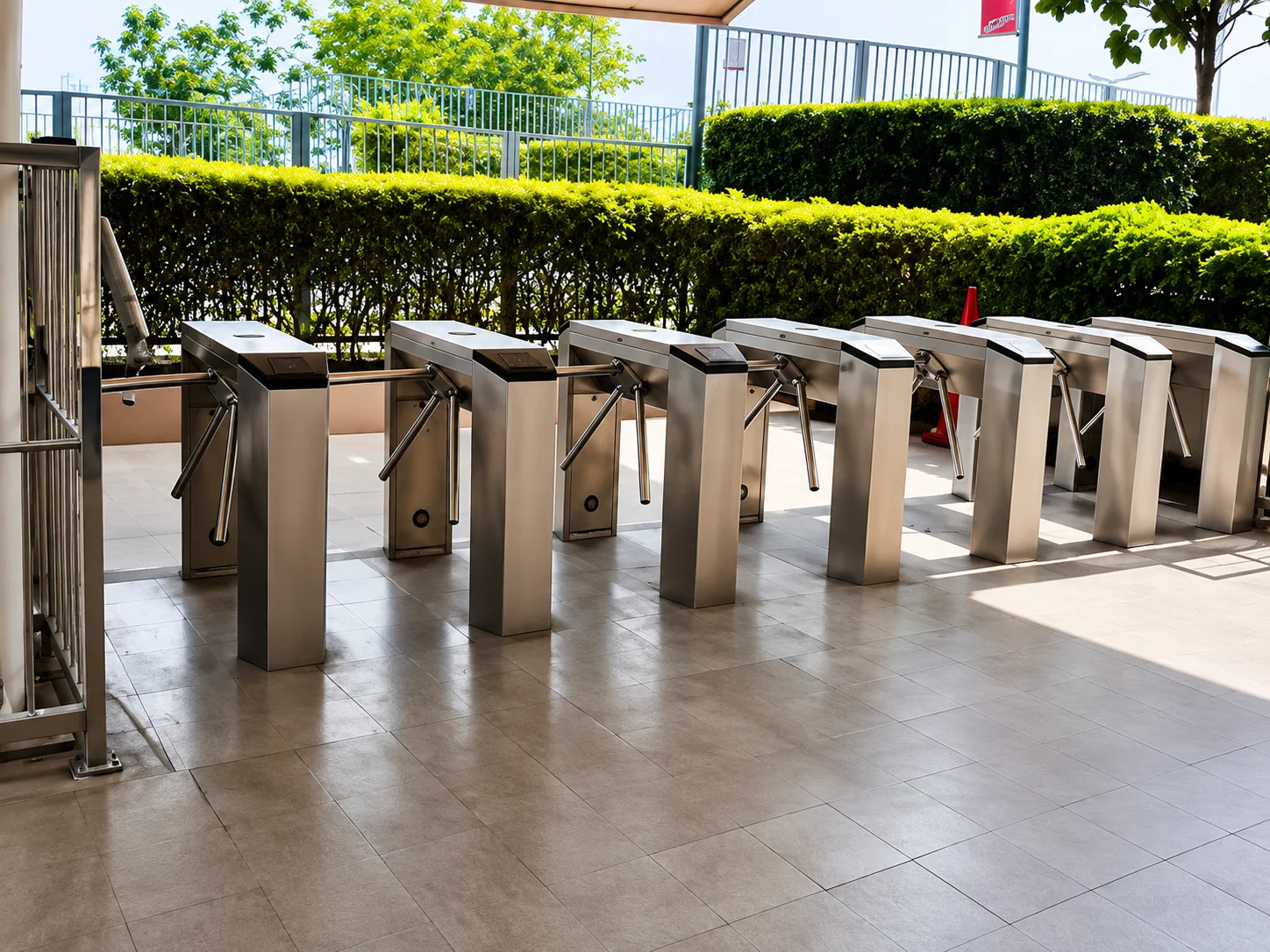

Tripod Turnstile: Types, Features, Applications & Price in India

Managing pedestrian access becomes more important when offices, factories, campuses, stadiums and transit facilities handle a large number of people every day. A tripod turnstile provides a controlled entry point by allowing authorised users to pass through one person at a time after their credential has been verified.

Unlike a conventional gate, a tripod turnstile combines physical access control with credential-based entry. It can be integrated with RFID cards, fingerprint readers, QR scanners, facial recognition and other compatible access-control systems. For businesses evaluating a Tripod Turnstile Manufacturer in India, factors such as throughput, construction, safety, cycle rating, access-control compatibility and after-sales support should be considered alongside the initial purchase cost.

What Is a Tripod Turnstile?

A tripod turnstile is a waist-high pedestrian access-control system with three rotating arms. The mechanism releases the lane after a valid credential is authorised and controls the movement of each person through the passage.

Aurotoshi tripod turnstiles are designed to release one person per credential, with a throughput of 30 to 35 persons per minute and a 550 mm passage clearance. The standard cabinet uses SS 304 hairline stainless steel, while SS 316 and powder-coated steel options are also available depending on the configuration.

The system can be used at controlled entrances where organisations need to regulate pedestrian movement while maintaining an access record.

How Does a Tripod Turnstile Work?

A tripod turnstile works together with an access-control system. The basic operating process is:

•        A person presents a valid credential such as an RFID card, biometric credential or QR code.

•        The connected access-control system verifies the credential.

•        Once access is authorised, the turnstile releases the mechanism.

•        The user rotates or passes through the three-arm mechanism depending on the model.

•        The mechanism returns to its controlled position for the next user.

Aurotoshi's semi-automatic models release the arm on authorisation and allow the user to rotate it, while the fully motorized bridge configuration uses a brushless DC motor for automatic arm rotation and return.

This approach helps facilities control pedestrian movement without requiring security personnel to manually check every person entering through the access lane.

Types of Tripod Turnstiles

The right tripod turnstile depends on the available space, expected footfall and level of automation required. Aurotoshi offers three configurations.

1. Standing Tripod Turnstile, Semi Automatic

The standing tripod turnstile is a compact solution for locations where floor space is limited. It uses a waist-high cabinet with a three-arm mechanism and is suitable for compact lobbies and single-lane staff entry.

The user rotates the arm after a valid credential is authorised. The model provides a 550 mm passage clearance and throughput of 30 to 35 persons per minute.

Key specifications:

•        Model: Auro-TA-TRY128

•        Cabinet: SS 304 hairline, 1.2 mm

•        Passage clearance: 550 mm

•        Throughput: 30 to 35 persons/minute

•        Release time: under 0.5 second

•        Drive: DC electromagnetic drive

•        Power supply: 220V AC, 50 to 60 Hz

•        IP rating: IP44

•        Certification: CE

2. Bridge Tripod Turnstile, Semi Automatic

The bridge configuration is suitable for multi-lane entrances at offices, industrial plants and campuses. The user rotates the arm after access is authorised, while the damped return mechanism helps provide controlled movement.

The cabinet is available in SS 304 hairline as standard, with SS 316 and powder-coated steel options available.

3. Bridge Tripod Turnstile, Fully Motorized

For entrances with continuous pedestrian movement, the fully motorized bridge model provides automated arm movement. It uses a brushless DC high-precision motor with automatic arm return and three IR proximity sensors.

This configuration is suitable for high-footfall transit lanes and fare collection applications where automated operation is preferred.

Tripod Turnstile Specifications Comparison

The comparison shows why selecting the right configuration should be based on the site's operating requirements rather than simply choosing the most automated model.

Key Features of a Tripod Turnstile

One Person Per Credential

A positive-action locking mechanism releases one 120-degree rotation per authorised credential. This helps maintain controlled pedestrian movement and supports anti-pass-back functionality.

Drop-Arm Fire Release

The arms can drop clear during a fire alarm or power loss, helping keep the lane available for emergency movement.

30 to 35 People Per Minute

Aurotoshi tripod turnstiles provide a throughput of 30 to 35 persons per minute per lane, with release under 0.5 second under the specified operating conditions.

SS 304 Construction

SS 304 hairline stainless steel is the standard cabinet finish. SS 316 and powder-coated steel options are also available for selected configurations.

Reader-Agnostic Integration

The turnstiles can be connected with compatible RFID, fingerprint, QR, facial recognition, iris and other access-control readers.

5 to 10 Million Cycle Mechanism

The specified mechanism supports 5 million cycles for the semi-automatic configurations and 10 million cycles for the motorized configuration, helping support long-term operation in high-use environments.

Tripod Turnstile Access Control Integration

A tripod turnstile becomes more effective when integrated with the facility's access-control system.

Depending on the project, the turnstile can work with technologies such as:

•        RFID cards

•        Fingerprint readers

•        QR codes

•        Facial recognition

•        Iris recognition

•        Other compatible access-control readers

The reader verifies the user's credentials before the turnstile releases the passage. This allows organisations to apply access permissions to employees, authorised visitors or other user groups.

For offices and industrial facilities, this can also help maintain a more controlled and auditable entry process.

Where Are Tripod Turnstiles Used?

Tripod turnstiles are suitable for a wide range of facilities where controlled pedestrian movement is required.

Offices and Corporate Lobbies

Tripod turnstiles can regulate employee entry and integrate with existing access-control systems.

Industrial Plants and Factories

They can be installed at controlled staff entrances to manage employee movement during regular operations and shift changes.

Educational Campuses

Schools, colleges and campuses can use controlled pedestrian access to restrict entry to authorised users.

Stadiums and Event Facilities

Tripod turnstiles can help manage pedestrian movement at controlled entrances where large numbers of people need to enter through defined access lanes.

Hospitals

Controlled pedestrian access can be useful at staff-only or restricted areas where access permissions need to be managed.

Transit and Fare Collection Facilities

The fully motorized bridge configuration is suitable for high-footfall transit lanes and fare collection applications where automated operation is required.

Residential Buildings

Tripod turnstiles can also be used at controlled pedestrian entrances in residential towers and similar facilities.

Safety Features of Tripod Turnstiles

Safety should be considered when selecting any pedestrian access-control system. Aurotoshi tripod turnstiles include a drop-arm emergency release that clears the arms during a fire alarm or power loss.

The system also supports controlled one-person-per-credential movement and anti-pass-back functionality.

When planning an installation, the emergency operating mode should be considered together with the site's overall fire and evacuation strategy.

How to Choose the Right Tripod Turnstile

Choosing a tripod turnstile should start with the actual requirements of the facility.

1. Consider Available Space

For compact entrances and single-lane installations, a standing tripod turnstile can be a practical choice. Larger multi-lane entrances may be better suited to bridge configurations.

2. Check Expected Footfall

Estimate the number of people who will use the entrance during peak periods rather than relying only on daily averages. Aurotoshi's configurations provide throughput of 30 to 35 persons per minute per lane.

3. Select the Required Automation Level

Semi-automatic models require the user to rotate the arm after authorisation. A fully motorized model automatically rotates and returns the arm, making it suitable for applications where automated operation is preferred.

4. Check Access-Control Compatibility

Confirm that the turnstile can integrate with the facility's existing or planned reader technology, whether RFID, fingerprint, QR, facial recognition or another compatible system.

5. Consider Construction and Finish

SS 304 hairline is the standard Aurotoshi construction. Depending on the project, SS 316 and powder-coated steel options can also be considered.

6. Evaluate Emergency Operation

Check how the turnstile behaves during power failure or a fire alarm and ensure the selected configuration is suitable for the facility's emergency access strategy.

7. Consider Long-Term Support

The purchase decision should also consider spare parts, service availability, maintenance requirements and the manufacturer's ability to support the installation after commissioning.

What Affects Tripod Turnstile Price in India?

The Tripod Turnstile Price in India can vary depending on the configuration and project requirements. A standard semi-automatic unit and a fully motorized turnstile do not have the same equipment, mechanism or integration requirements.

Important factors that can affect the final price include:

•        Semi-automatic or fully motorized operation

•        Stainless steel grade and cabinet construction

•        Number of lanes

•        Access-control reader integration

•        Required safety and emergency features

•        Installation requirements

•        Site-specific configuration

•        Service and AMC requirements

For this reason, comparing only the equipment price may not provide a complete picture of the total project cost. The required configuration and access-control system should be confirmed before requesting a quotation.

Why Choose an Experienced Tripod Turnstile Manufacturer in India?

The manufacturer plays an important role beyond supplying the turnstile itself. A suitable manufacturer should understand the access-control requirement, provide the correct configuration, support system integration and offer service after installation.

When evaluating a Tripod Turnstile Manufacturer in India, consider:

•        Product construction and material quality

•        Available configurations

•        Throughput and cycle rating

•        Safety and emergency release features

•        Access-control compatibility

•        Certification

•        Availability of spare parts

•        Installation and after-sales support

•        Ability to customise the system for project requirements

A manufacturer with in-house engineering and manufacturing capabilities can also provide better control over product configuration and technical support.

Why Choose Aurotoshi Tripod Turnstiles?

Aurotoshi provides three tripod turnstile configurations for different pedestrian access requirements, from compact single-lane entrances to high-footfall motorized applications.

The three configurations are designed for different pedestrian access requirements, with options for compact entrances, multi-lane facilities and high-footfall applications.

Aurotoshi also supports RFID, fingerprint, QR, facial recognition, iris and other compatible reader technologies, with the mechanism built for the long-term, high-use operation detailed earlier.

With manufacturing and spare-parts support from Ghaziabad, Aurotoshi can support access-control projects where reliable pedestrian entry management is required, alongside related access-control products such as Flap Barriers and Boom Barriers for combined pedestrian and vehicle access control.

Frequently Asked Questions

What is a tripod turnstile?

A tripod turnstile is a pedestrian access-control system with three rotating arms that controls entry through a defined lane. It releases the mechanism after an authorised credential is verified.

What is the capacity of a tripod turnstile?

Aurotoshi tripod turnstiles are specified for 30 to 35 persons per minute per lane, depending on the configuration and operating conditions.

What is the standard passage width of a tripod turnstile?

The Aurotoshi tripod turnstile range provides a 550 mm passage clearance.

Can a tripod turnstile work with RFID and biometric systems?

Yes. Aurotoshi tripod turnstiles are designed for reader-agnostic integration and can be connected with compatible RFID, fingerprint, QR, facial recognition and iris readers.

What happens to a tripod turnstile during a power failure?

Aurotoshi tripod turnstiles feature a drop-arm emergency mode. The arms can drop clear during a fire alarm or power loss to help keep the lane available for emergency movement.

What is the difference between a semi-automatic and fully motorized tripod turnstile?

In a semi-automatic model, the user rotates the arm after access is authorised. In a fully motorized model, the motor rotates and automatically returns the arm to its home position.

How many cycles can a tripod turnstile handle?

Aurotoshi's semi-automatic configurations are specified for 5 million cycles or above, while the fully motorized configuration is specified for 10 million cycles or above.

Is a tripod turnstile suitable for factories?

Yes. Tripod turnstiles can be used at controlled employee entrances in factories and industrial plants to manage pedestrian access and integrate entry with an access-control system.

Is a tripod turnstile suitable for offices?

Yes. A compact standing tripod turnstile can be used for controlled staff entry in office lobbies and other access-controlled areas.

What factors affect tripod turnstile price in India?

Price depends on the turnstile configuration, automation level, stainless steel grade, number of lanes, access-control integration, installation requirements and service requirements.

How do I choose a Tripod Turnstile Manufacturer in India?

Compare manufacturers based on product specifications, construction quality, safety features, access-control compatibility, certification, manufacturing capability, spare-parts availability and after-sales support rather than price alone.

Final Takeaway

A tripod turnstile is a practical solution for facilities that need controlled pedestrian access without creating a complicated entry system. The right configuration depends on available space, expected footfall, required automation, access-control technology and emergency operating requirements.

For businesses evaluating a Tripod Turnstile Manufacturer in India, Aurotoshi offers standing semi-automatic, bridge semi-automatic and bridge fully motorized configurations, each built to the construction, performance and safety specifications outlined earlier, with integration across multiple access-control technologies.

With 30+ years of manufacturing experience, 3 manufacturing units and OEM/ODM capabilities, Aurotoshi supports standard and application-specific access-control requirements across different facility types. Explore the full Tripod Turnstiles range to review configurations and specifications.
