40-45
Persons/Minute
< 0.5 sec
Opening Time
16 Pairs
IR Sensors
10 Million
MTBF Cycles
About Product
Built For High Volume Transit Access
Automatic Fare Collection (AFC) Gates solve one of the biggest challenges in modern public transport systems: moving large volumes of passengers quickly while ensuring that only authorized commuters gain access. They help transit operators reduce fare evasion, improve passenger throughput, and maintain reliable access control without slowing station operations.
Aurotoshi manufactures Automatic Fare Collection Gates in flap and swing variants for metro stations, BRTS, airports, and other mass transit applications. Designed for continuous operation under high passenger traffic, the gates integrate seamlessly with QR code, token, smart card, and other ticketing systems, while incorporating advanced safety features, emergency fail-safe operation, and durable stainless-steel construction for long service life.
Features
Obstacle Detection
Detects obstructions for safe gate operation.
Fast Passenger Throughput
Enables smooth and efficient passenger movement.
Fare Collection Integration
Works with AFC and ticketing systems.
Multiple Authentication Options
Supports smart cards, QR codes, and NFC.
Bidirectional Access
Controls entry and exit in both directions.
Real-Time Monitoring
Supports centralized control and system diagnostics.
Models & Specifications
Choose Your Specification
Choose from our range of high performance variants tailored to your specific facility requirements.

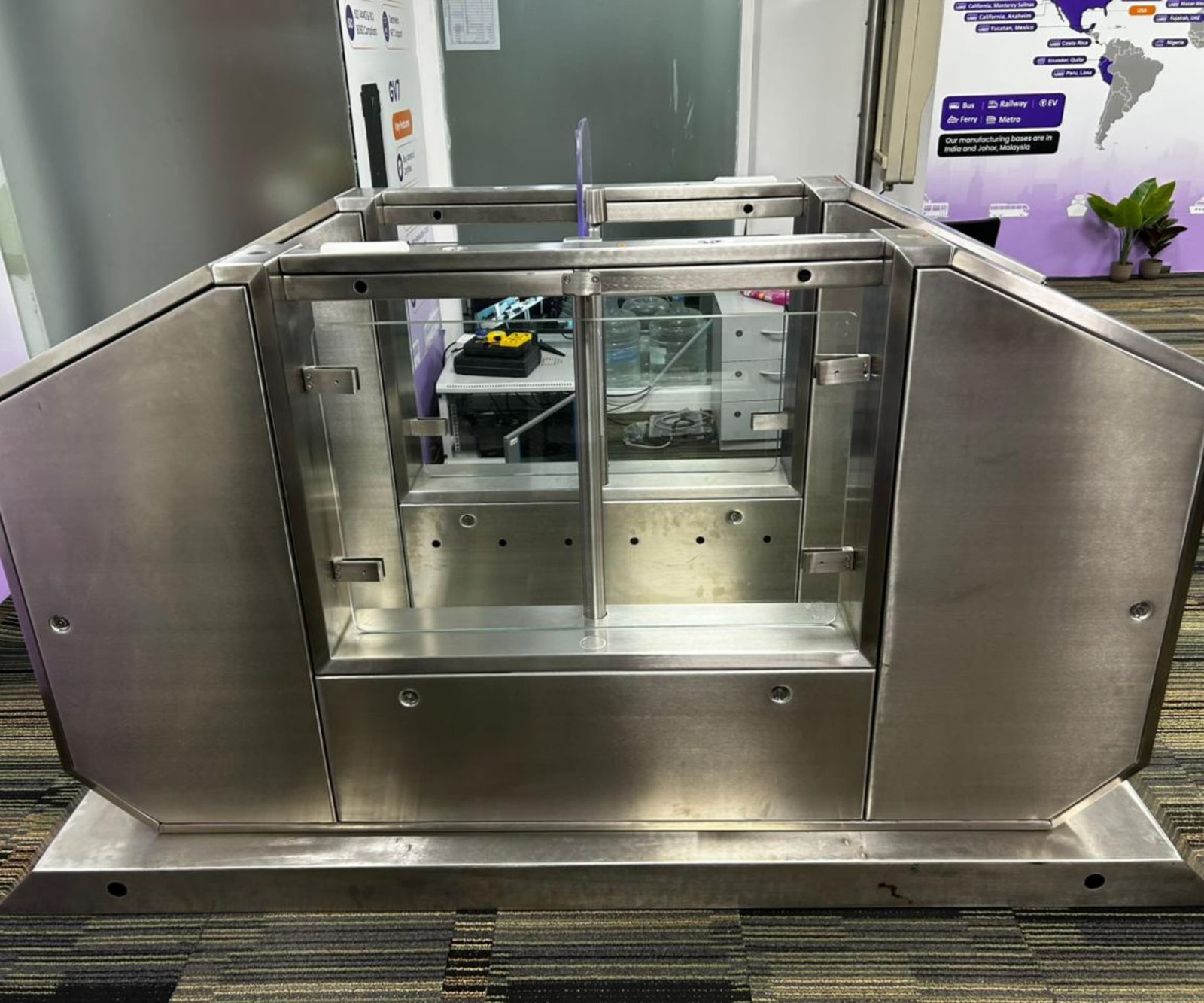

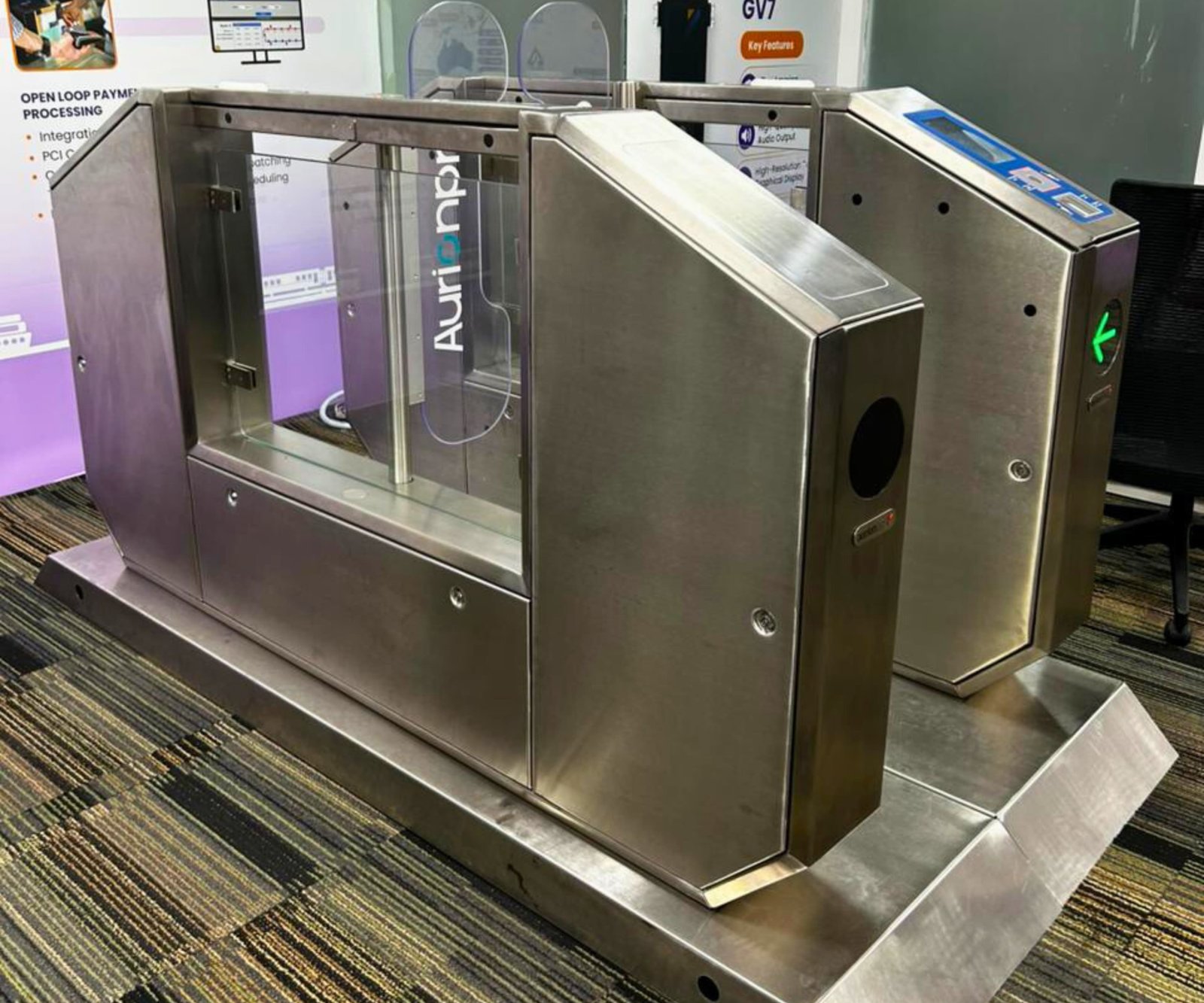

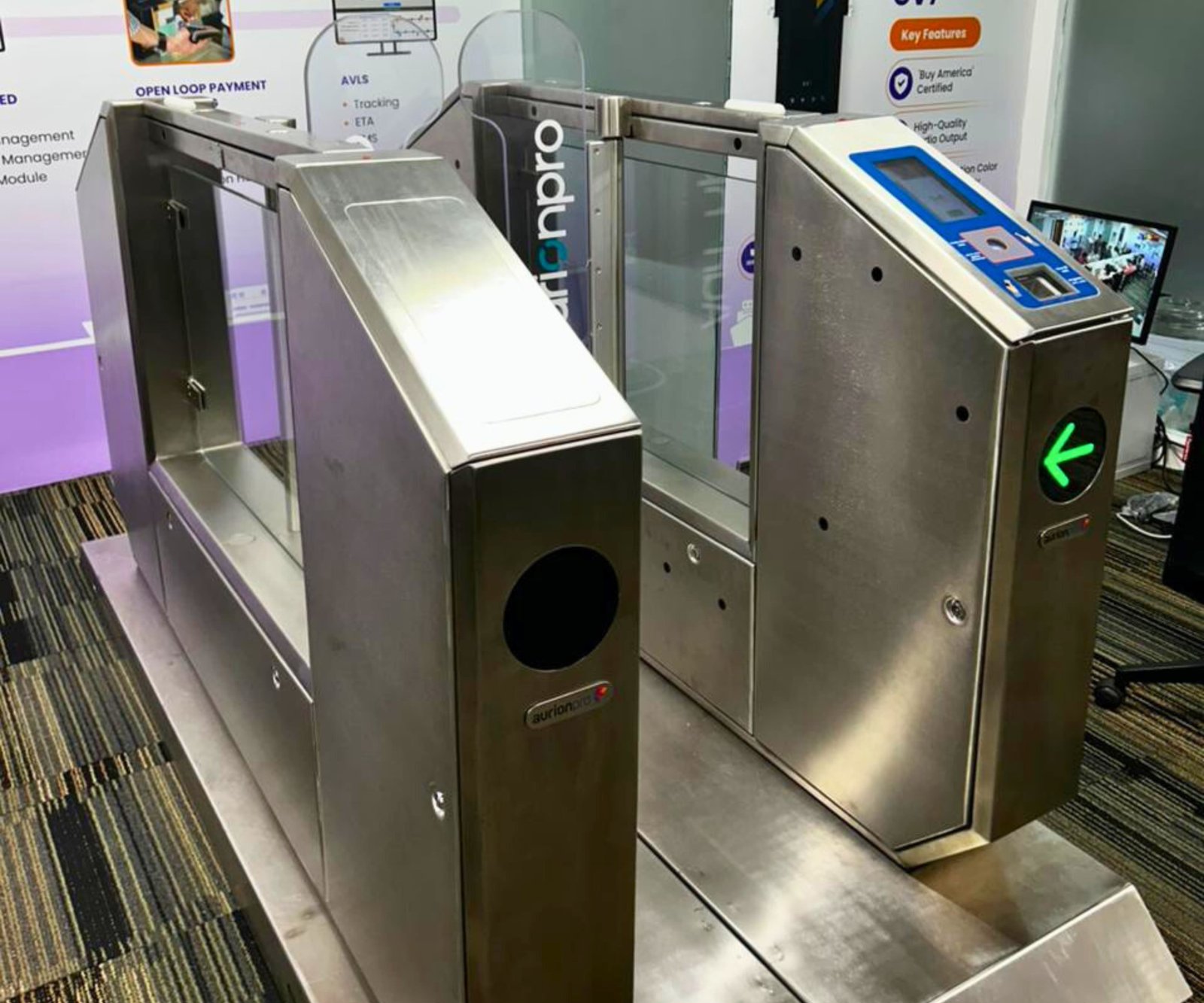

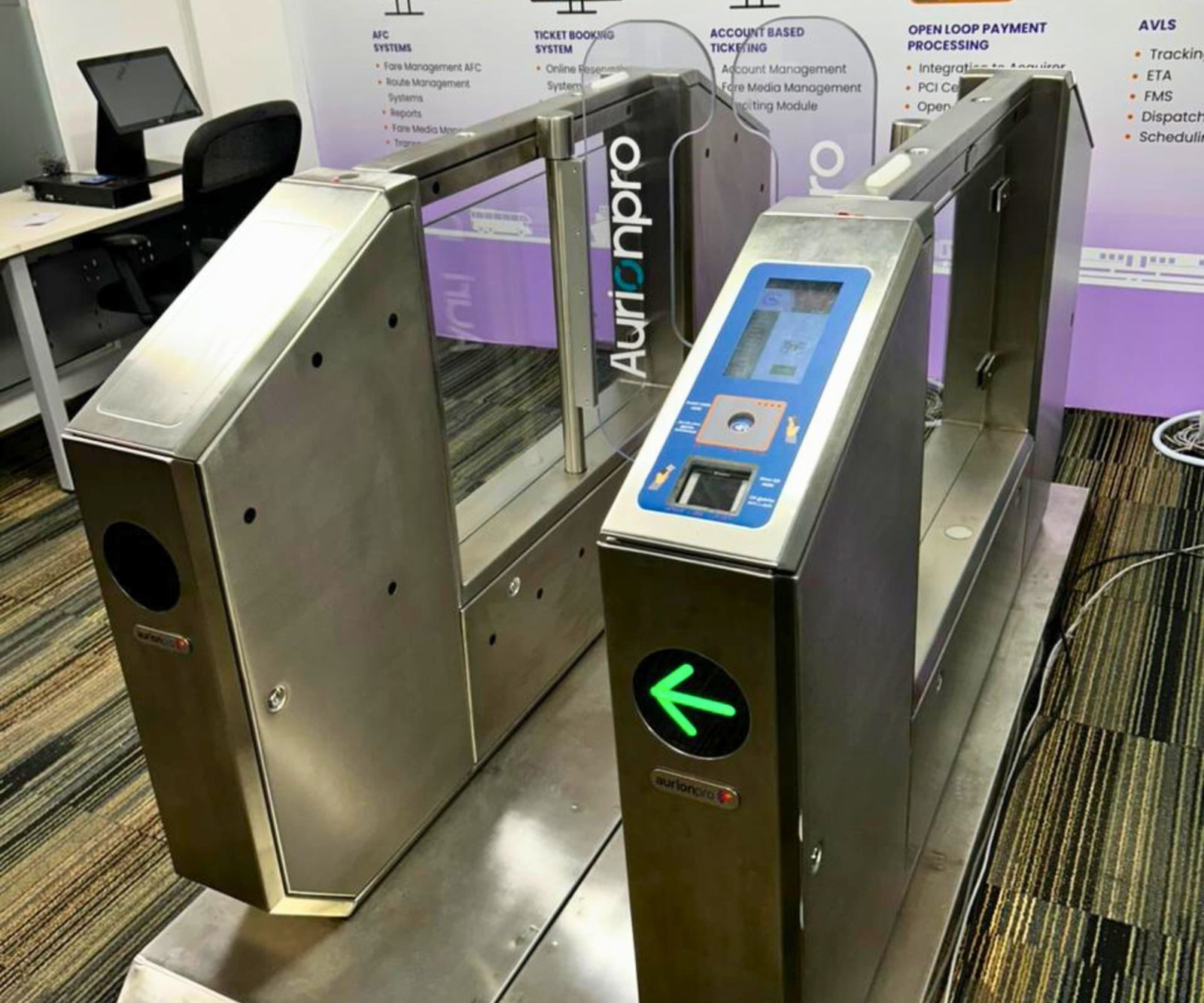

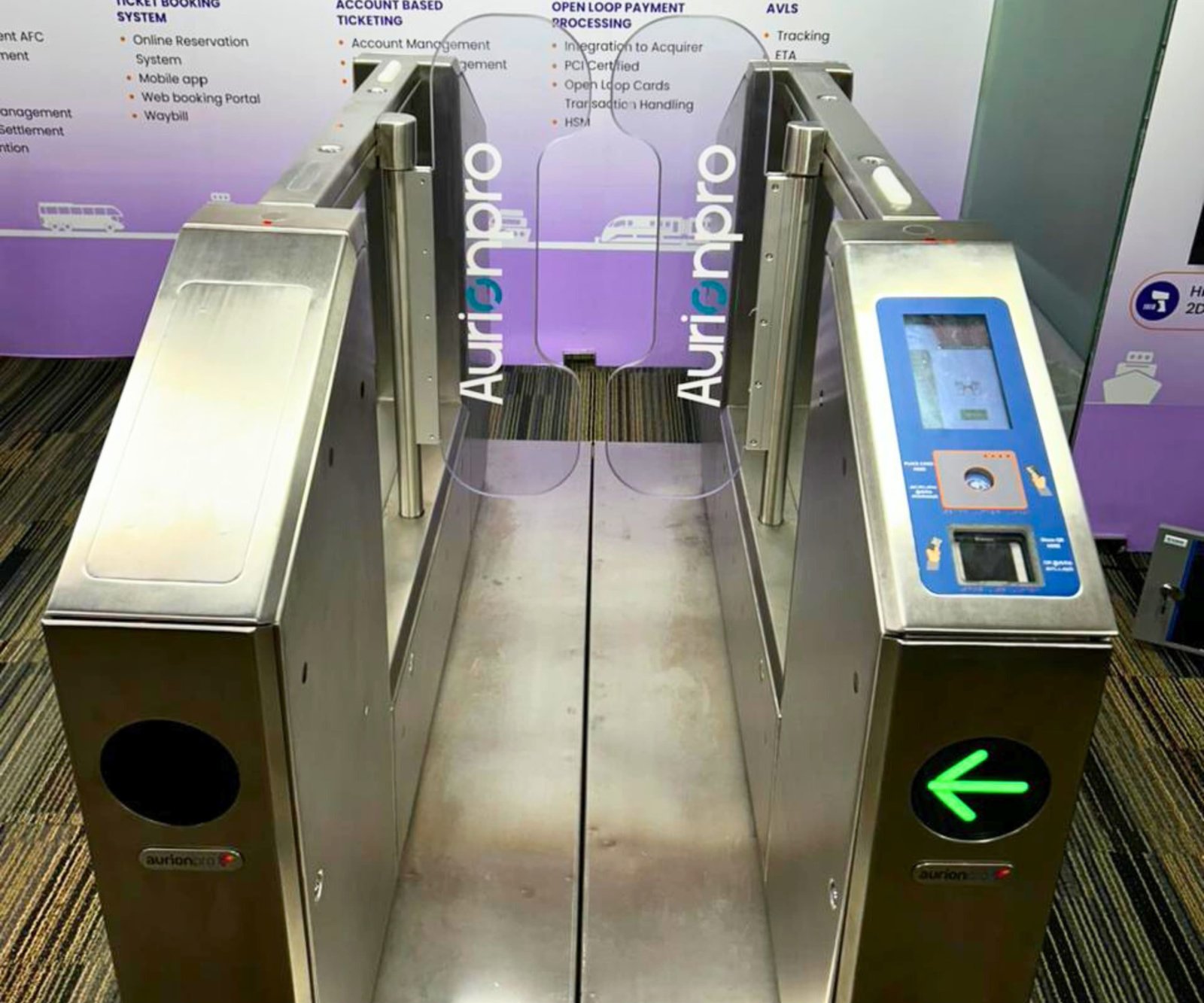

Auro-TA-SBAFC
Tag / Application
Mass transit, swing flap type
Type
Swing Flap Type | AFC Gate
Dimensions (L x W x H)
2000 x 200 x 1080 mm (+/-5%)
Cabinet Material
SS 304 hairline finish (SS 316 optional)
Passage Clearance
550 mm regular / 900 mm wide aisle
Wing
Polycarbonate / toughened glass / PU flaps
Material Thickness
2.0 mm
Throughput
40 to 45 persons/minute
Opening / Closing Time
< 0.5 second
Drive
Servo drive
Operating Modes
Normally Open | Normally Closed
Operating Directions
Uni-directional / bi-directional
Input Power
110 to 220V AC, 50-60 Hz
Presence Detection
IR sensors, 16 pairs
Ticket Media
CSC, EMV, paper QR
Passage Authorization
Dry contact / serial connection
Passenger Safety
4 sensors near flaps, pushes open at 250 N
Serial Connection
RS 232
Gate End Display (GED)
Yes
Ingress Protection
IP54
MTBF
10 million cycles or above
MTTR
< 30 min
Anti-Tailgating
Yes
Anti-Pass Back
Yes
Fire Alarm Integration
Yes
Temperature Sensor
Yes
Operating Temperature
-10 to 55 C
Emergency Mode
Customizable
Token Counter (TCU)
Optional at extra cost (gate width increases)
Certification
CE

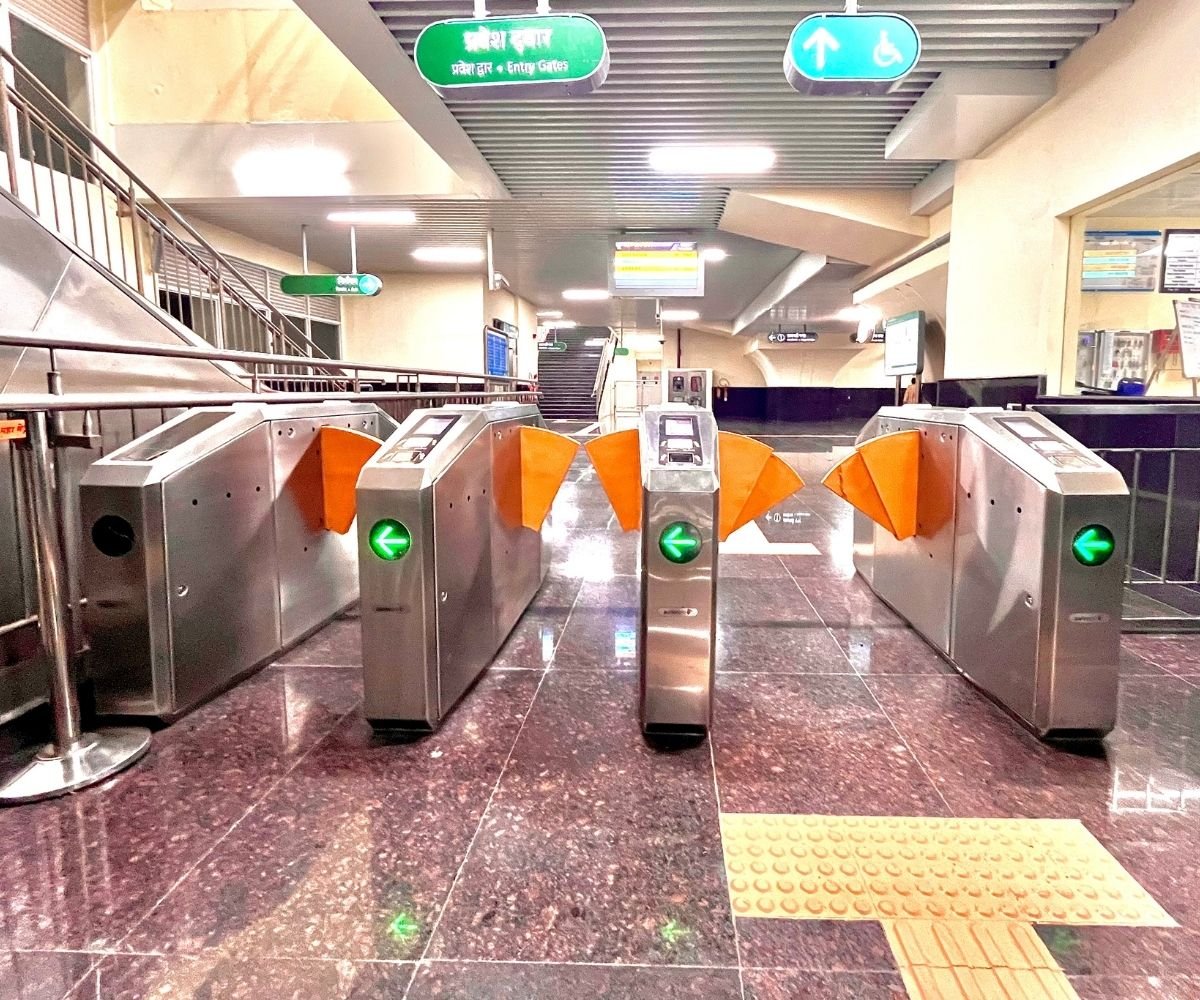

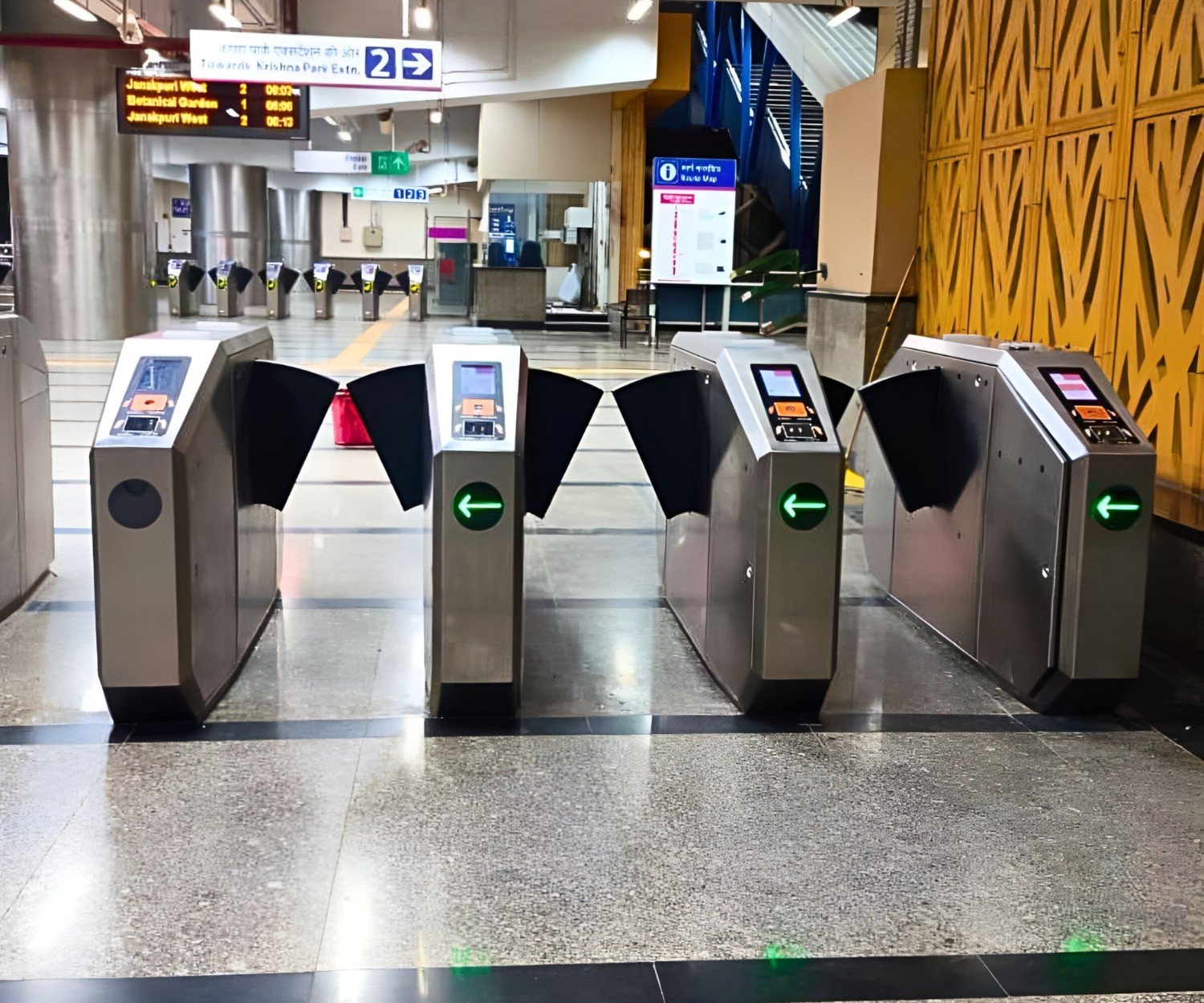

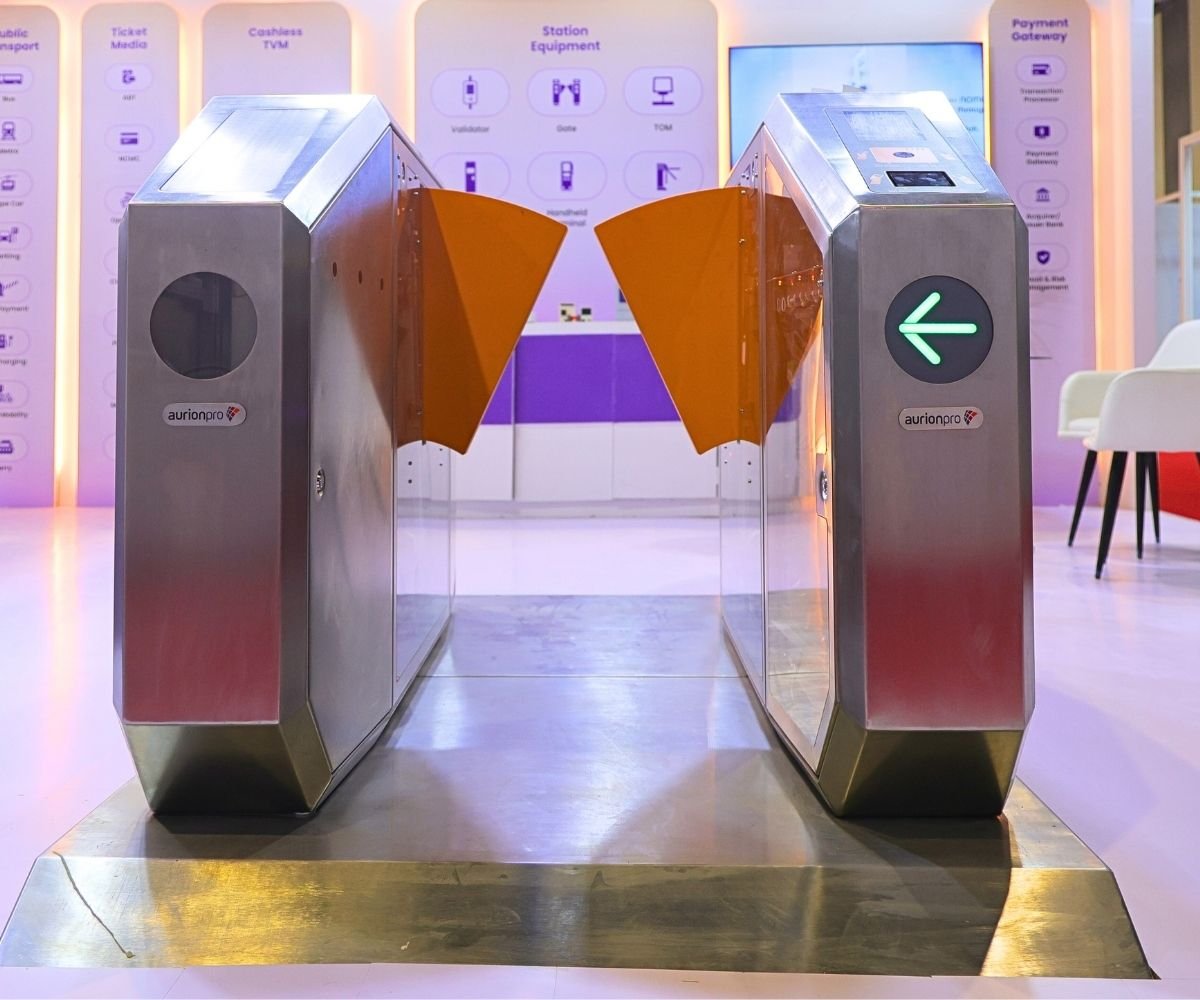

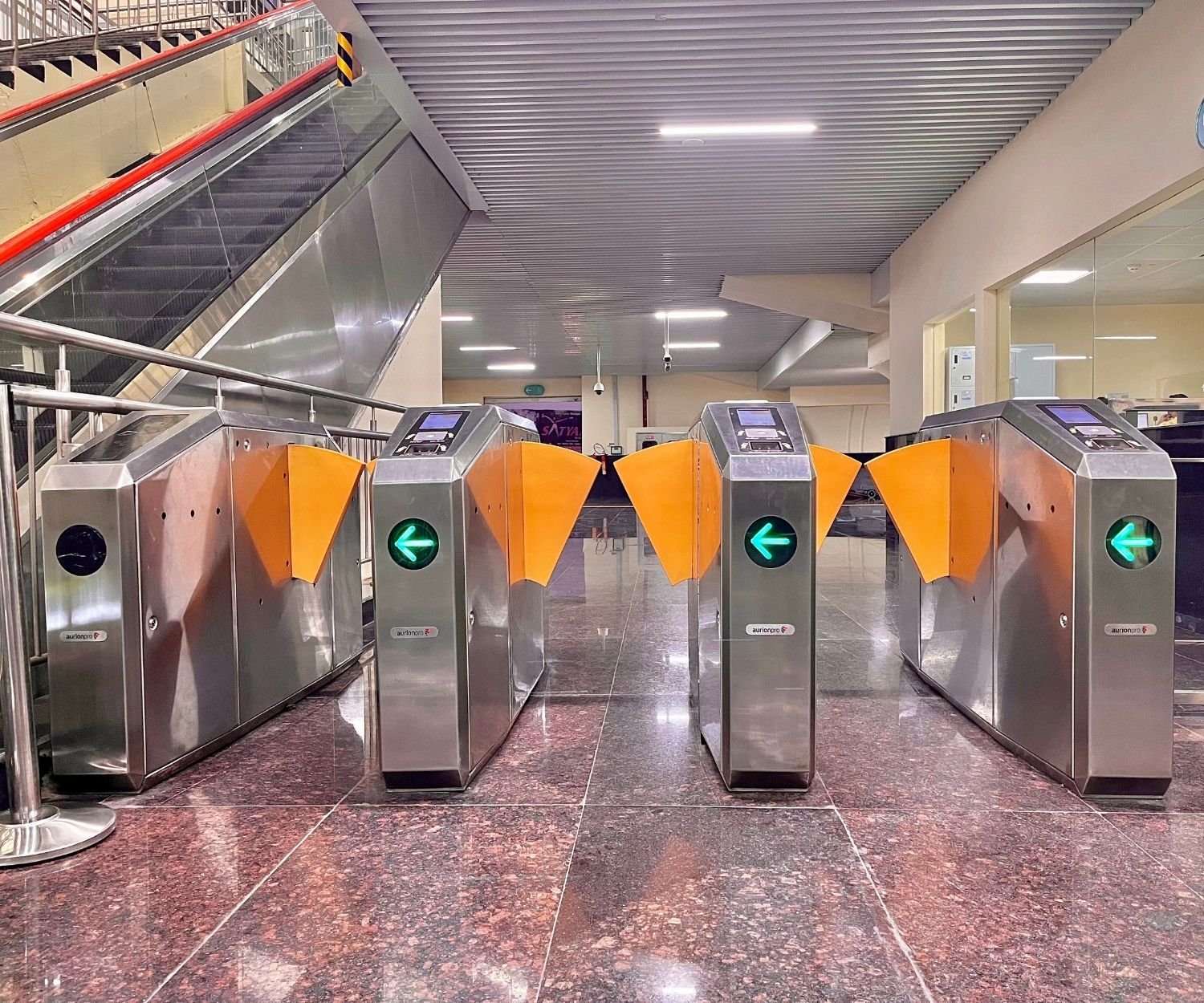

Auro-TA-FBAFC
Tag / Application
Urban mobility, retractable flap type
Type
Retractable Flap Type | AFC Gate
Dimensions (L x W x H)
1900 x 300 x 1000 mm (+/-5mm)
Cabinet Material
SS 304 hairline finish (SS 316 optional)
Passage Clearance
550 mm regular / 850 mm wide aisle
Wing
Polyurethane insulated (PUF) soft-wing
Material Thickness
2.0 mm
Throughput
40 to 45 persons/minute
Opening / Closing Time
< 0.5 second
Drive
Heavy-duty European PMDC drive and gearbox
Operating Modes
Normally Open | Normally Closed
Operating Directions
Uni-directional / bi-directional
Input Power
110 to 220V AC, 50-60 Hz
Presence Detection
IR sensors, 16 pairs
Ticket Media
CSC, EMV, paper QR
Passage Authorization
Two dry contacts + software over serial
Passenger Safety
Presence sensing + soft PU wing, auto-open on emergency
Serial Connection
RS 232
Gate End Display (GED)
Yes
Ingress Protection
IP54 (except flap area)
MTBF
10 million cycles or above
MTTR
< 30 min
Anti-Tailgating
Yes
Anti-Pass Back
Yes
Fire Alarm Integration
Yes
Temperature Sensor
Yes
Operating Temperature
-10 to 55 C
Emergency Mode
Yes
Token Counter (TCU)
Optional at surcharge
Certification
CE
Auro-TA-SBAFC
Tag / Application
Mass transit, swing flap type
Type
Swing Flap Type | AFC Gate
Dimensions (L x W x H)
2000 x 200 x 1080 mm (+/-5%)
Cabinet Material
SS 304 hairline finish (SS 316 optional)
Passage Clearance
550 mm regular / 900 mm wide aisle
Wing
Polycarbonate / toughened glass / PU flaps
Material Thickness
2.0 mm
Throughput
40 to 45 persons/minute
Opening / Closing Time
< 0.5 second
Drive
Servo drive
Operating Modes
Normally Open | Normally Closed
Operating Directions
Uni-directional / bi-directional
Input Power
110 to 220V AC, 50-60 Hz
Presence Detection
IR sensors, 16 pairs
Ticket Media
CSC, EMV, paper QR
Passage Authorization
Dry contact / serial connection
Passenger Safety
4 sensors near flaps, pushes open at 250 N
Serial Connection
RS 232
Gate End Display (GED)
Yes
Ingress Protection
IP54
MTBF
10 million cycles or above
MTTR
< 30 min
Anti-Tailgating
Yes
Anti-Pass Back
Yes
Fire Alarm Integration
Yes
Temperature Sensor
Yes
Operating Temperature
-10 to 55 C
Emergency Mode
Customizable
Token Counter (TCU)
Optional at extra cost (gate width increases)
Certification
CE
Auro-TA-FBAFC
Tag / Application
Urban mobility, retractable flap type
Type
Retractable Flap Type | AFC Gate
Dimensions (L x W x H)
1900 x 300 x 1000 mm (+/-5mm)
Cabinet Material
SS 304 hairline finish (SS 316 optional)
Passage Clearance
550 mm regular / 850 mm wide aisle
Wing
Polyurethane insulated (PUF) soft-wing
Material Thickness
2.0 mm
Throughput
40 to 45 persons/minute
Opening / Closing Time
< 0.5 second
Drive
Heavy-duty European PMDC drive and gearbox
Operating Modes
Normally Open | Normally Closed
Operating Directions
Uni-directional / bi-directional
Input Power
110 to 220V AC, 50-60 Hz
Presence Detection
IR sensors, 16 pairs
Ticket Media
CSC, EMV, paper QR
Passage Authorization
Two dry contacts + software over serial
Passenger Safety
Presence sensing + soft PU wing, auto-open on emergency
Serial Connection
RS 232
Gate End Display (GED)
Yes
Ingress Protection
IP54 (except flap area)
MTBF
10 million cycles or above
MTTR
< 30 min
Anti-Tailgating
Yes
Anti-Pass Back
Yes
Fire Alarm Integration
Yes
Temperature Sensor
Yes
Operating Temperature
-10 to 55 C
Emergency Mode
Yes
Token Counter (TCU)
Optional at surcharge
Certification
CE
Full Specification Comparison
| Specification | Auro-TA-SBAFC | Auro-TA-FBAFC |
|---|---|---|
| Best for | Wider aisles, glass or PU flap look | Compact footprint, soft-wing passenger safety |
| Wing type | Polycarbonate / glass / PU | PUF soft-wing |
| Drive | Servo | PMDC + gearbox |
| Wide-aisle clearance | 900 mm | 850 mm |
| Throughput | 40 to 45 ppm | 40 to 45 ppm |
| IP rating | IP54 | IP54 (except flap area) |
| Ticket media | CSC / EMV / QR | CSC / EMV / QR |
| Certification | CE | CE |
Where These Doors Are Installed
Industries & Applications
High speed doors operate across six distinct application environments — each with specific compliance, speed, and hygiene requirements.
No industries assigned yet. Please assign industries from the product edit page in the backend.
Projects & Case Studies
Installed & Running
High speed doors from Aurotoshi are operational at over 200 industrial facilities. A selection of reference projects below.
No projects or case studies added yet. Please add them from the back panel.
Frequently Asked Questions
Buyer's Questions, Answered
Common queries from facility managers, procurement heads, and plant engineers.
An AFC (Automatic Fare Collection) gate controls passenger movement between the unpaid and paid areas of a transit station. It reads a valid ticket, opens for the passenger, and blocks anyone attempting to enter without paying. Aurotoshi makes two types: a swing gate and a retractable flap gate.
The swing gate (Auro-TA-SBAFC) uses polycarbonate, glass or PU swing flaps on a servo drive, with aisle clearances of 550 mm and 900 mm. The flap gate (Auro-TA-FBAFC) uses soft polyurethane retractable wings on a PMDC drive, with 550 mm and 850 mm aisles. Both offer the same throughput, detection and ticket-media support.
Both types read contactless smart cards (CSC), EMV bank cards and paper QR codes, and integrate with project-specific ticketing systems.
Each gate uses 16 pairs of IR sensors to detect intrusion, tailgating, piggybacking, wrong-way movement and child passage. Anti-tailgating and anti-pass-back are standard, with audio and visual alerts to station staff.
Both gate types handle 40 to 45 passengers per minute, with an opening and closing time under 0.5 second.
Yes. Sensors near the flaps stop them closing on a passenger standing in the aisle. The soft PU wings absorb impact, and in an emergency the barrier can be pushed open with a force of 250 N. On power failure or fire alarm, the gates open for safe evacuation.
Yes. Both types integrate with station ticketing over serial connection (RS 232) and support fire-alarm integration and normally-open or normally-closed operation per the transit operator's requirement.
Yes. Aurotoshi is an OEM and ODM manufacturer supplying transit operators, system integrators and EPC contractors, with project-specific customisation and documentation available on request.
After Installation
Service & AMC for
Automatic Fare Collection (AFC) Gates
We don't disappear after installation. Structured AMC, 24-hour breakdown response, in-house spare parts dispatched from Ghaziabad.
Preventive Maintenance
Quarterly AMC
- GCU and drive servicing
- 16-pair IR sensor calibration
- Flap and wing inspection
- Opening and closing time measurement
- Ticket-reader and GED check
Breakdown Support
24-Hour Response
- 24-hour response for AMC customers
- In-house spare parts, no import lead times
- Trained engineers across Delhi NCR, Mumbai, Pune
- Priority response for live transit stations
Compliance & Records
Compliance Records
- Service records for transit-authority audits
- Sensor and safety-force calibration logs
- Annual CE and fire-integration check
- Integrated reporting via Aurionpro software
